dsh-plugin-model-capability

Model Capability Manager — manage the llm-pi-ai provider routes of DeepSeek Harness (DSH Web) from a dedicated Model Capability page in the in-app settings: per-model thinking levels, context window, output cap, input modalities, per-route defaults, gateway compatibility fields, one-click presets, and an EN/中文 switchable UI.

简体中文说明 · Report Bug · Request Feature

---

Table of Contents

• Why this plugin exists
• Screenshots
• Features
• Installation
• Uninstall
• How it works
• Development
• Publishing
• Related Plugins
• License

---

Why this plugin exists

DSH stores provider configuration in llm-pi-ai.providers inside settings.yaml. Editing it by hand is error-prone, and two classes of problems bite people often:

1. Gateway incompatibility — not every vendor accepts the same protocol dialect. For example Alibaba Cloud (DashScope) in compatible-mode, Moonshot/Kimi, Zhipu/BigModel, MiniMax, Volcengine Ark, SiliconFlow, Baidu Qianfan and other gateways may reject developer role messages or reasoning_effort echoes the way the OpenAI/Anthropic dialects expect. Turning compat.supportsDeveloperRole on against such a gateway produces 400-style errors.
2. Thinking-level wiring — the 7 levels (off / minimal / low / medium / high / xhigh / max) each need a wire value the upstream provider understands (e.g. low → "low" for one vendor, "h3" for another). Max-thinking configs and per-model reasoningEfforts are tedious to author by hand.

This plugin gives you a GUI for all of it, plus one-click presets that bake in dialect-safe configurations (see Presets).

Screenshots

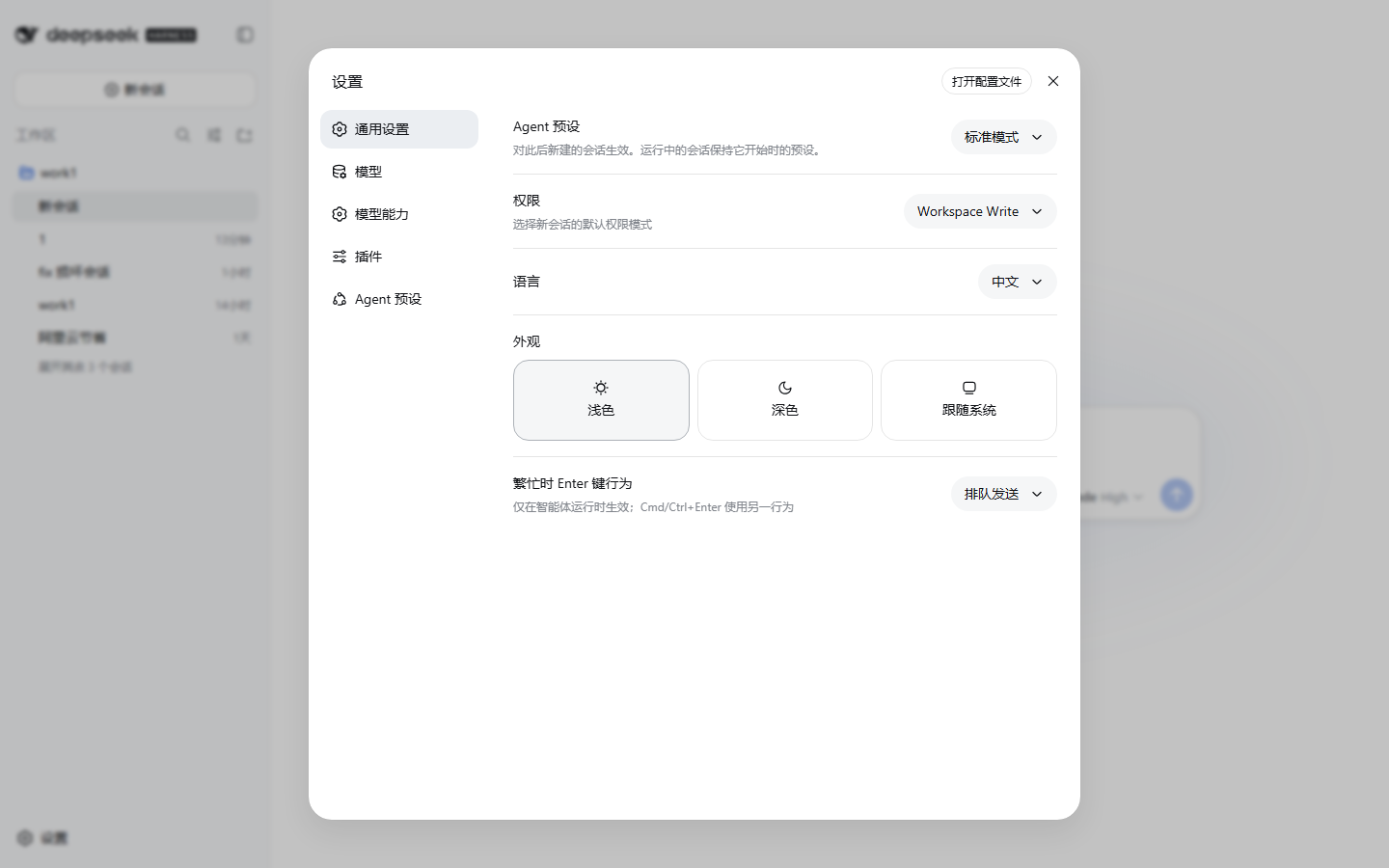

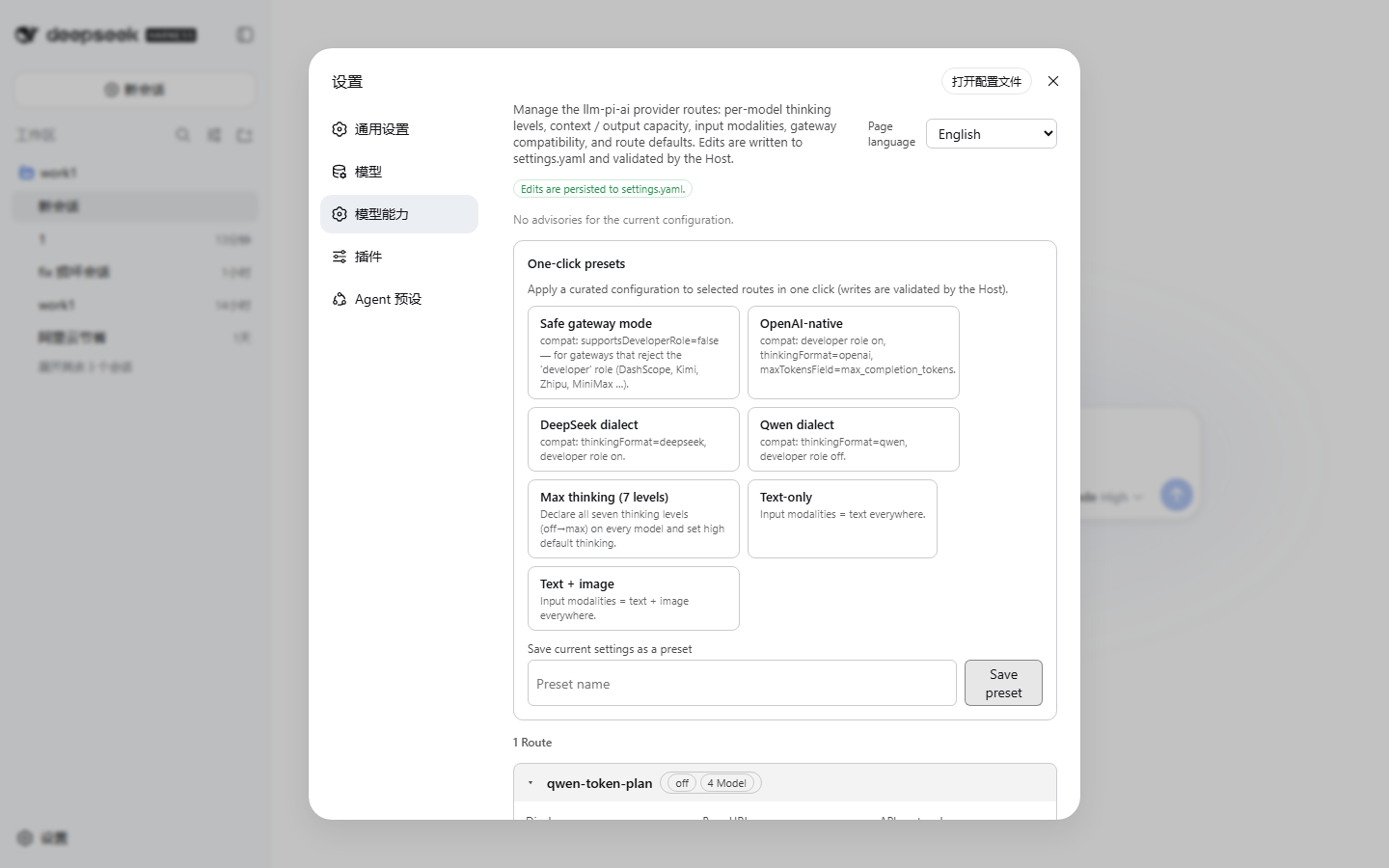

Settings entry	Section overview (EN)

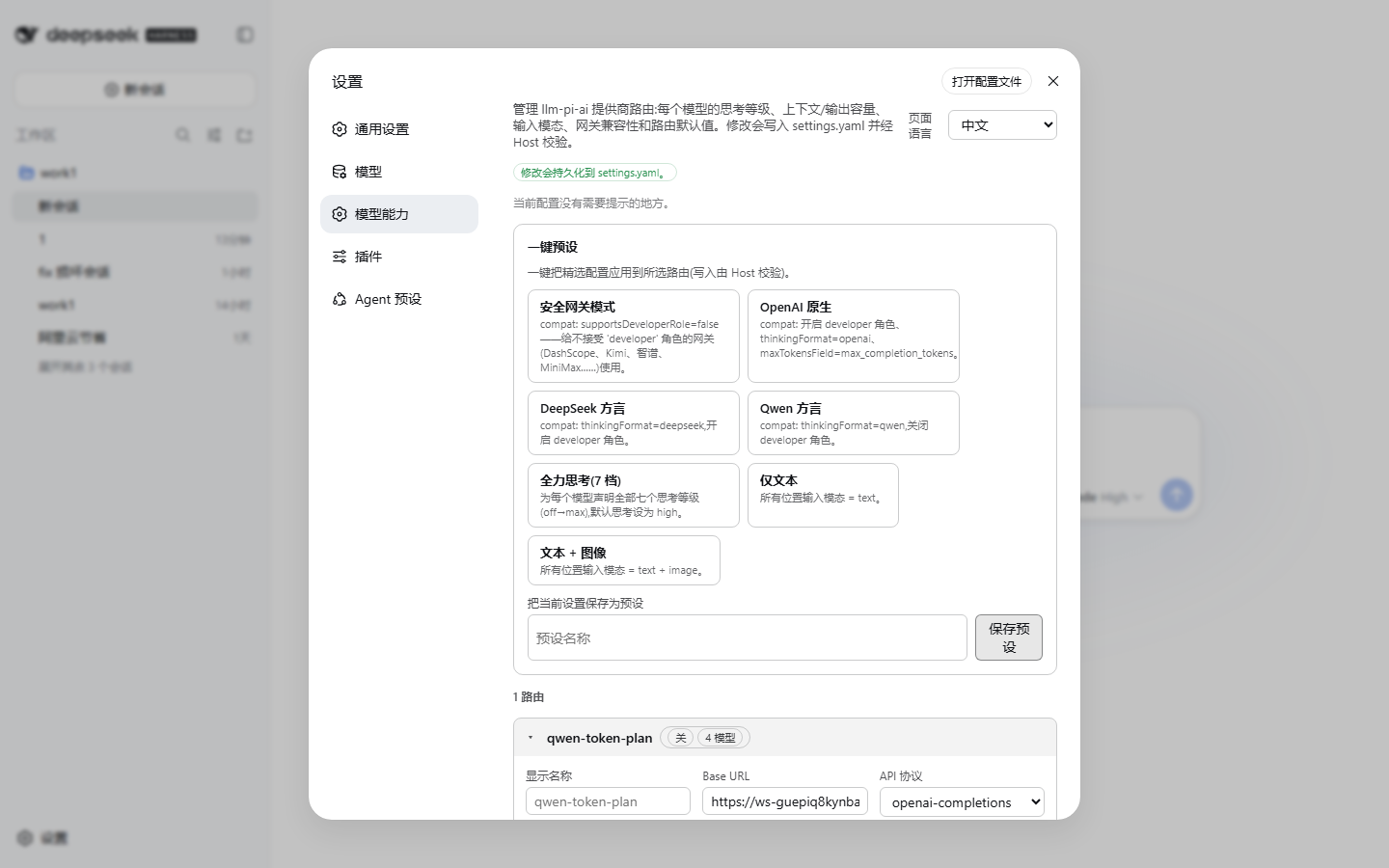

Model editor (EN)	Gateway compatibility fold (ZH)	Section overview (ZH)

Features

• Per-model editor for every route:
  • name, contextWindow, maxTokens — capacity fields accept plain numbers or K/M suffixes (262144, 256K, 1M).
  • input modalities — text / image checkboxes with de-duplication.
  • Thinking toggle — switch the whole model between reasoning off and the full 7-level matrix (off/minimal/low/medium/high/xhigh/max), each level with its own wire value. Empty non-off levels are prevented (the Host rejects them), and a one-click fill all levels with the same value button is included.
  • Apply field to all models of the route (name / contextWindow / maxTokens / input / reasoningEfforts).
  • Per-model compat editor (folded away by default).
• Per-route editor:
  • displayName, baseURL, api (openai-completions / openai-responses / anthropic-messages).
  • Defaults: defaultContextWindow, defaultMaxTokens, defaultInput, reasoning, thinkingBudgets (minimal/low/medium/high), cacheRetention, transport.
  • Route-level compat editor and an Advanced fold: timeouts, max image bytes / pixel budget, headers, plus a read-only raw JSON view.
• One-click presets — 7 built-in recipes plus your own saved presets:

  Preset	What it does
  Safe gateway	compat.supportsDeveloperRole=false, supportsReasoningEffort=true — for gateways that reject developer role messages (DashScope compatible-mode, Kimi/Moonshot, Zhipu, MiniMax, Ark, SiliconFlow, Qianfan, …)
  OpenAI native	developer role + reasoning_effort + thinkingFormat=openai + maxTokensField=max_completion_tokens
  DeepSeek dialect	thinkingFormat=deepseek, developer role on, reasoning_effort on
  Qwen dialect	thinkingFormat=qwen, developer role off, reasoning_effort on
  Max thinking (7 levels)	every model declares all 7 levels, reasoning=high, generous thinkingBudgets
  Text only	defaultInput=['text'] and per-model input=['text']
  Image ready	defaultInput=['text','image'] and per-model input=['text','image']

  • Apply any preset to a selected subset of routes. Save your current configuration as a custom preset; apply and delete them anytime. Custom presets are stored under model-capability.customPresets in settings.yaml.
  • Applying a custom preset replaces the whole llm-pi-ai user section via settings.replace, not a merge. Any route that was added to the user section after the preset was saved will be deleted. This is not an additive recipe — treat the preset as a full snapshot.
  • Header credential protection — credential-shaped header names (authorization, api-key, etc.) are blocked in the headers editor, and the headers dict is stripped from every provider route when saving a custom preset (credentials travel as apiKeyEnv reference names, never as literal header values). Existing presets that were saved before this safeguard are detected at startup and reported in the advisory checks.
• Advisory checks — the page shows diagnostics about your current setup: legacy-gateway lookalike URLs with supportsDeveloperRole on (hint: use Safe gateway), reasoning levels that map to no wire value, models without an explicit contextWindow, and routes without models.
• Language switch — the page follows the DSH UI language, and a select in the page header lets you pin English / 中文 / follow DSH. The choice persists into settings.yaml (model-capability.language), not just to the browser session.

All writes go through the DSH settings service with revision fencing (expectedRevision), the same pattern the built-in Models page uses; conflicting concurrent edits are retried via the live mirror. If the page is opened from a non-loopback origin (where writes are not allowed), every control is disabled with a hint.

Installation

Requires a DSH installation with the web app (any profile that serves the browser UI), DSH ≥ 0.1.1-rc.2.

Install the latest version

dsh plugin --profile web add dsh-plugin-model-capability   # latest stable, or pin @<version>

Then restart dsh --profile web (the running Web UI is not hot-reloaded on plugin install). The Model Capability entry appears under Settings.

For other profiles, replace web with your profile name.

Pin the exact version when you need a specific release — see Getting the latest version below. Installing without a version may resolve to an older release cached locally or on the registry CDN.

Getting the latest version (cache / publish-delay caveats)

A new release is only picked up when all three caches agree — the npm registry CDN metadata, your local pnpm store, and the profile's lockfile. Any one of them stale means dsh plugin add dsh-plugin-model-capability (no version) keeps installing the old build. To guarantee you get the newest version:

1. Check what the registry currently has:

   npm view dsh-plugin-model-capability version


   If this does not show the version you expect, the registry CDN still serves stale metadata — wait ~1–2 minutes and retry (npm publishes are usually visible in seconds, but the packument metadata is cached per-TTL).

2. Uninstall any previously installed copy first (see Uninstall below). The profile lockfile (node_modules/.pnpm/lock.yaml / pnpm-lock.yaml) otherwise keeps the old version pinned.

3. Install with the exact version — this bypasses metadata resolution:

   dsh plugin --profile web add dsh-plugin-model-capability@<version>
   # e.g. dsh plugin --profile web add dsh-plugin-model-capability@1.1.1


4. Clear stale local caches if the profile still reports an old version:

   pnpm store prune                 # remove unreferenced store packages


   or, for the profile itself:

   cd "$HOME/.dsh/profiles/web"
   pnpm store prune


5. Verify what actually got installed:

   grep -A2 '"dependencies"' "$HOME/.dsh/profiles/web/package.json"


   (Windows PowerShell: Select-String -Path "$HOME\.dsh\profiles\web\package.json" -Pattern "model-capability") The version shown next to dsh-plugin-model-capability must match the version you intended to install.

6. Restart the web UI — the plugin is loaded at startup, never hot-reloaded:

   dsh --profile web


Registry note: an already-published version can never be overwritten. If a bad build got released under 0.1.2, the fix is a new version (0.1.3, 1.1.1, …), not a re-publish — which is exactly why "install the latest" means pin the version, not npm update.

Uninstall

dsh plugin --profile web remove dsh-plugin-model-capability

If the command reports no such dependency found (a broken install whose dependency entry is missing from package.json), remove it directly inside the profile:

cd "$HOME/.dsh/profiles/web"
pnpm remove dsh-plugin-model-capability

After either step, restart dsh --profile web.

To verify the plugin is fully gone:

• "$HOME/.dsh/profiles/web/package.json" — no dsh-plugin-model-capability entry under dependencies
• "$HOME/.dsh/profiles/web/node_modules/dsh-plugin-model-capability" — directory no longer exists
• "$HOME/.dsh/profiles/web/pnpm-lock.yaml" — no dsh-plugin-model-capability reference (0 hits)

The host half also loads headlessly (it registers the settings schema); the settings UI itself needs the web app.

How it works

One npm package with two halves, installed as a profile bundle by dsh plugin add:

• lib/index.js — the host half: registers the model-capability settings namespace (language + custom presets) with schemastery so the Host round-trips it like any native setting.
• lib/client.js — the web client half: a classic-script bundle registered with the web shell's module loader (window.__ModuleLoader__.load({ id, factory })), exactly like every shipped @deepseek-ai client bundle. It injects a section into the settings.section slot, binds both the llm-pi-ai and model-capability settings scopes, and drives all edits through api.settings.mutate with path ops and revision fencing.
• cordis.patch.yml — declares the bundle row, so dsh plugin add wires the whole thing automatically (no manual patch editing).

The llm-pi-ai schema itself is owned by DSH — this plugin only edits its values, so the Host keeps validating every write (assertServiceable etc.).

Development

pnpm install
npm run build        # esbuild → lib/client.js (loader-wrapped) + lib/index.js

Local testing: create a dev profile (e.g. web-dev), add the web app and the plugin, and restart the server on a separate port:

dsh plugin --profile web-dev add @deepseek-ai/dsh-web-app@0.1.1-rc.2
# add the local package, then note: `file:` dependencies are snapshotted —
# re-add after every rebuild, or replace the installed copy with a junction:
dsh plugin --profile web-dev add file:D:/path/to/dsh-plugin-model-capability
dsh --profile web-dev --port 3091 --no-open

Screenshots are captured with the included script (needs playwright-core and a local Chrome/Edge):

node scripts/screenshots.mjs [baseURL] [outDir]
node scripts/verify-dom.mjs  [baseURL]   # shadow-DOM-aware rendering checks
node scripts/e2e-write.mjs   [baseURL]   # end-to-end write smoke test (back up settings.yaml first!)

Publishing

Full step-by-step instructions (including a post-release checklist) are in PUBLISHING.md. Summary:

• npm publish — run after npm run build (the prepublishOnly hook rebuilds automatically). The package ships lib/, cordis.patch.yml, img/, license, the English README and the Chinese guide in docs/.
• GitHub — repository + releases; tag versions to match package.json.

Related Plugins

Check out other DSH plugins in the ecosystem:

• dsh-plugin-desktop-launcher — Desktop shortcut for DSH web: one-command install, smart re-entry (reuses running instance), complete uninstall, cross-platform (Windows/macOS/Linux).
• awesome-dsh-plugins — Curated list of DSH plugins and resources (coming soon).

Know another DSH plugin? Suggest it for the list.

License

MIT
