dsh-visual-memory

Lossless visual memory for a DSH agent. Store an image once; every later question is answered from the original bytes — exact pixels, exact replay, findable by text, tag, sha256, turn range or near-duplicate. No second vision model in the loop.

DSH 0.2.0-rc.2 · Node >= 22 · MIT · node verify.mjs 17/17

Install

# recommended: resolves against the repository, so it works behind any registry mirror
dsh plugin --profile <name> add github:xiciyang/dsh-visual-memory

# npm (registry.npmjs.org): short form
dsh plugin --profile <name> add @xiciyang/dsh-visual-memory
dsh --profile <name> --dump-config      # expect a "# == @xiciyang/dsh-visual-memory" layer

Install error mentioning 0.0.0-stage? That is a stale pnpm metadata cache, not a broken package: the first staged publish left a placeholder version in the cache. Clear it with pnpm store prune (or delete ~/.cache/pnpm/*/metadata/<registry>/dsh-visual-memory.jsonl) and re-run the install. npm view @xiciyang/dsh-visual-memory version shows the current version.

One bundle layer, seven tools. Remove with dsh plugin --profile <name> remove @xiciyang/dsh-visual-memory.

From a local checkout:

git clone https://github.com/xiciyang/dsh-visual-memory
dsh plugin --profile <name> add ./dsh-visual-memory

30-second decision

You want	Reach for	Instead of
the exact colour of a cell in a past screenshot	visual_read_pixels	asking a vision model to look again and trusting the hex
compare two UI states, or replay a frame	visual_inspect, visual_compare	re-uploading both images every turn
find the image from turn 40	visual_recall (text / tag / sha256 / turn range / dHash)	scrolling the transcript
keep a screenshot byte-identical	visual_remember (verbatim, content-addressed)	base64 inside a text-memory entry

Not a fit if you need a cloud image host (this is local and file-backed), Android (the pixel engine spawns python3), or one-off "describe this image" — DSH native image input already covers that.

Why not another text-memory entry

Text memory stores descriptions; this stores bytes. The original file is committed verbatim, addressed by sha256, and every later question is answered from that original — not from a vision model's paraphrase. Two consequences: pixel values stay exact, and the answer does not change when you switch models.

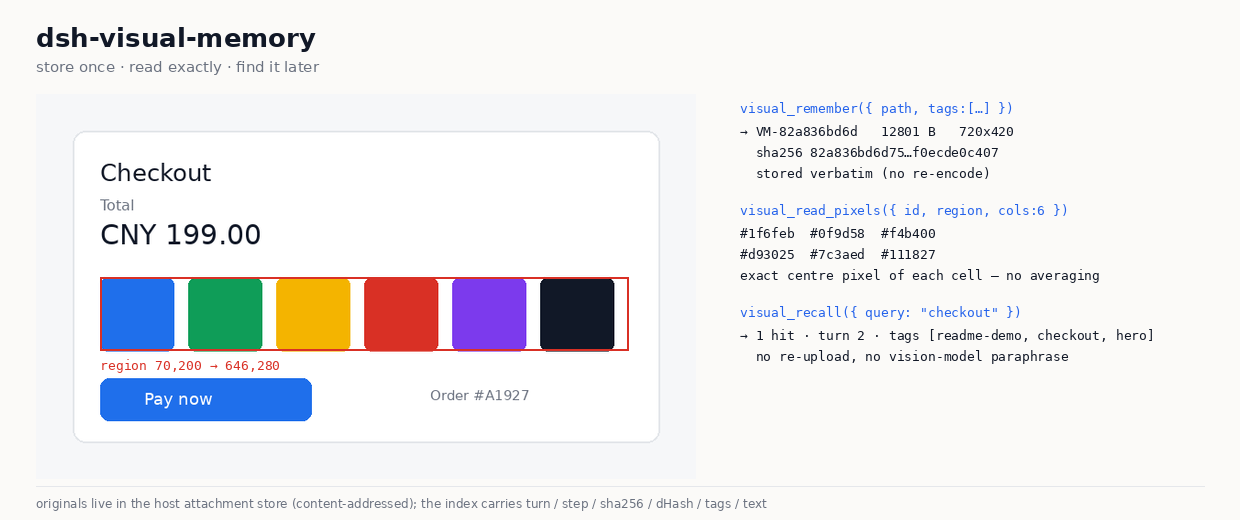

Quick start

// 1. store the screenshot you are looking at, and make it findable
visual_remember({ path: "./shot.png", text: "checkout page, CNY 199, two buttons", tags: ["ui","checkout"] })

// 2. later, find it without re-uploading
visual_recall({ query: "checkout" })            // or sha256 / id / tags / turn range / near-dup

// 3. read the exact colour of a cell (a vision model would round it off)
visual_read_pixels({ id: "VM-…", region: "120,40,200,80", rows: 2, cols: 4 })

// 4. assemble several past frames into one labelled sheet for comparison
visual_inspect({ views: [{ id: "VM-…", region: "0,0,800,600" }, { id: "VM-…" }], layout: "side-by-side" })

Requirements

• DSH 0.2.0-rc.2 (declared as engines.dsh: ">=0.2.0 <0.3.0"); the bundle manifest is dsh.bundle.patch, so dsh plugin add activates the layer.
• Node.js >= 22.
• Python 3 with Pillow (python3 -m pip install pillow) — the pixel engine (lib/imaging.py) is a subprocess; the plugin does not vendor an image codec.
• Desktop / server only for now: the pixel engine spawns python3, so Android is out of scope (dsh-plugin-lint flags this as A2-subprocess-tool). A pure-JS fallback is the obvious next step if mobile matters.
• A model route that declares image input for the observation path. The plugin probes the live route (visual_memory_status.routeCapability) instead of assuming; on a text-only route, images are still stored and are reachable through the sha256:xxxxxxxx handle DSH emits.

Configuration

There is no config file — three locations follow host conventions, and changing the session workspace changes the store root:

What	Where	Notes
store	<session workspace>/.dsh-visual-memory/	one per workspace; index.jsonl is append-only
registry	$DSH_HOME/visual-memory-roots.json	gallery routing; most recent 20 workspaces
originals	$DSH_HOME/attachments/v1/files/<sha>/	verbatim, content-addressed, not deleted with the index

To move the store, change the session workspace. To clear memory, delete .dsh-visual-memory/ (the originals stay in attachments/ and can be reclaimed).

Compatibility

DSH	Status
0.2.0-rc.2	verified on 2026-10-17 — node verify.mjs 11/11, real tools called end-to-end
< 0.2.0	not tested; engines.dsh refuses installation
>= 0.3.0	not tested; widen the range only after running npm test on that version

Built to close the gap against VISTA: A Visual Harness for Reasoning in an Interactive World (arXiv 2610.02200, Han, Hu, Qiu, Wu, Kaiming He, 2026-10-01), whose harness contributes three things: visual observation, a lossless visual memory that "stores every frame … in its original form" indexed by turn and frame, and visual inspection that works "in space" (an enlarged view of any rectangular region of the original frame) and "across time" (retrieve and inspect multiple frames from arbitrary earlier turns).

Capability map

VISTA harness component	This plugin
Visual observation (model receives the pixels)	DSH native multimodal input — read_image; the model route's declared modalities are probed, not assumed
Lossless visual memory, original form, indexed by (turn, frame)	visual_remember → verbatim bytes in ctx.attachments.saveFile (content-addressed, never re-encoded) + an append-only index carrying turn/step/seq/sha256/dHash/dimensions/tags/text
Active retrieval of past observations	visual_recall — query / id / sha256 prefix / tags / turn range / chronological order / perceptual near-dup
Visual inspection in space (region of the original, enlarged)	visual_inspect views with region + scale; ad-hoc cropping stays with vision_crop
Visual inspection across time (several frames, one call)	visual_inspect assembles N views from N archived observations into one labelled sheet
Compare states / replay frames	visual_compare (labelled side-by-side / grid / stack); numeric diffs stay with vision_pixel_diff
Exact pixel values (VISTA read_pixels)	visual_read_pixels — rows×cols cell matrix of #rrggbb centre readings
— (hybrid routing, not in the paper)	visual_memory_status.routeCapability resolves the live route and reports nativeImageInput; text-only routes recover images through the sha256:xxxxxxxx handle DSH emits

Ownership boundaries

Each capability has exactly one owner, so there is no second implementation to diverge:

• bytes → ctx.attachments (host service; verbatim saveFile, content-addressed)
• crop / pixel-diff / palette / trace / OCR / Q&A → dsh-vision-toolkit (vision_crop, vision_pixel_diff, vision_dominant_colors, vision_trace, vision_glance)
• index / attention ledger / labelled composites / multi-view assembly / capability probe → this plugin

visual_attend deliberately produces the annotated overlay + attention ledger (what was looked at, made visible and durable) and leaves the crop itself to vision_crop. visual_inspect cuts from archived observations because assembling views out of memory is a distinct capability, not a second crop tool.

Tools

Tool	Answers
visual_remember	store this image losslessly and make it findable
visual_recall	which image was that / find it by text, hash, tag, turn, or similarity
visual_attend	draw the regions I examined onto the image and record them
visual_inspect	give me these N observations, these regions, enlarged, in one sheet
visual_read_pixels	what exactly is the colour of each cell
visual_compare	put these images side by side with labels
visual_memory_status	what is actually available, and can the current model see

Web seam: GET /_dsh/visual-memory/gallery renders the memory (thumbnails, attention ledger, indexed text, hashes); /_dsh/visual-memory/raw?id=VM-… serves the exact stored original, and &v=<variant> serves one overlay or comparison sheet that the record itself lists.

The web seam is not an Agent authority boundary. Every request is refused unless the composition's connection.requestRejection accepts it (Host/Origin fence + browser authentication), root must be a root this plugin registered, and v is resolved only from the record's own listed variants and only when the real path stays inside that store's artifacts/ directory — a caller-supplied path is never read.

Storage layout

<session workspace>/.dsh-visual-memory/
  index.jsonl                 append-only; folded by id, last write wins
  artifacts/attention/*.png   attention overlays
  artifacts/compare/*.png     comparison sheets
  artifacts/inspect/*.png     per-view crops + assembled sheets
~/.dsh/visual-memory-roots.json   which workspaces have a store (gallery routing)
<DSH_HOME>/attachments/v1/files/<sha>/<name>   the verbatim originals

Verification

npm test                       # = node verify.mjs
node verify.mjs [path/to/index.jsonl]

Runs 17 checks: bundle contract, patch/profile wiring (restart persistence), the pixel engine against a fixture with authored colours (probe, read_pixels, crop+enlarge, compose, overlay clamping), the web seam's trust fence and path fence (untrusted request, caller-named root, arbitrary v path, symlink escape, the trusted gallery render, and the two legitimate raw reads), the lossless-JSON invariant (jsonSafe on every tool return — an unguarded undefined once rejected a whole call), and re-hashing every stored original against its recorded sha256.

The host-side path (ctx.attachments, ctx.fs, ctx.tools) is exercised by calling the real tools; this script does not claim to cover it.

Provenance

Written after measuring the profile's actual state on 2026-10-04:

• native multimodal input was live (a randomised ground-truth image was read back exactly, TEY4KD / 3 circles / BG=(103,74,104));
• the external vision service was dead because every outbound request went through a mihomo proxy returning 502 — the toolkit provider was repointed to a directly reachable endpoint, and the toolkit's own health check now reports the credential resolvable;
• the vision toolkit's tools are registered into the agent scope, so a host-scope ctx.tools.schemas() cannot see them — the capability probe passes the agent (ctx.tools.schemas(agent)), the same call the Cordis Inspect Tool provider makes.

License

MIT — see LICENSE.
