onebox-dsh-bridge

English | 简体中文

A DeepSeek Harness (dsh) plugin that bridges your local dsh web to the OneBox cloud relay, so the OneBox Android app can reach your computer's AI agent over the public internet — scan-to-pair, token management and tunnel frame multiplexing, all inside the plugin. Your agent is online as soon as dsh web starts.

Built for the open-source OneBox (万宝盒) Android app. The plugin page also includes the app download info, so anyone running DSH can pair their phone in a minute.

How it works

OneBox App ⇅ https://api.wanbaohe.com/dsh/* (cloud relay)
                 ⇅ outbound WSS (control tunnel, JSON frame multiplexing)
         onebox-dsh-bridge (this plugin)
                 ⇅ loopback
         local dsh web (127.0.0.1:3080)

• Mounts a /onebox-bridge page in the dsh web GUI (self-contained HTML, zero external deps) showing the pairing QR code and online status
• Pairing: POST /dsh/pair-sessions → a ≥128-bit secret is generated locally and encoded into the QR (oneboxdsh://pair?v=1&g=…&p=…&s=…) → polls GET /dsh/pair-sessions/:id/status?s=… every 2s; once the app scans and claims, the plugin receives its device token
• Goes online via outbound WSS /dsh/agent?token=…; tunnel frames: http → local POST /api/<method> answered by http-resp; ws-open/ws-frame/ws-close bridge the local /api/events.mux|host streams
• Control WS drop → all local bridges closed, exponential-backoff reconnect (1s→30s); token 401 (revoked/expired) → local token deleted, back to scan-to-pair state
• End-to-end encryption: the pairing key travels only inside the QR code, never through the server; all app ↔ computer traffic is AES-256-GCM encrypted — the relay forwards ciphertext only

Install

With the dsh CLI installed:

dsh plugin --profile web add onebox-dsh-bridge

Running dsh from a source checkout (prefix commands with pnpm dsh, from the deepseek-harness repo root):

pnpm dsh plugin --profile web add onebox-dsh-bridge

The package declares dsh.bundle, so add automatically merges the plugin row into the profile's composition layer. Restart dsh web to take effect.

Installing straight from GitHub also works:

dsh plugin --profile web add github:wangzhishou/onebox-dsh-bridge

Usage

1. Open http://127.0.0.1:3080/onebox-bridge in dsh web (adjust the port to your deployment)
2. In the OneBox app, open DSH Client → My Computers and scan the QR code on the page
3. Once the page shows Online, pick the device in the app and start chatting with your agent

Page buttons: Regenerate QR code (invalidates the old session and creates a new pairing session; codes expire after 10 minutes and are rebuilt automatically) and Unbind & re-pair (deletes the local token, back to waiting-for-scan).

Get the OneBox app

The plugin is the computer-side half; the phone-side half is the free, open-source OneBox Android app:

• Source code: github.com/wangzhishou/OneBox (Apache-2.0)
• International: Google Play · Official site
• 中国用户: 万宝盒官网 · 小米 / 应用宝 / OPPO / vivo / 华为应用商店搜索「万宝盒」

Screenshots

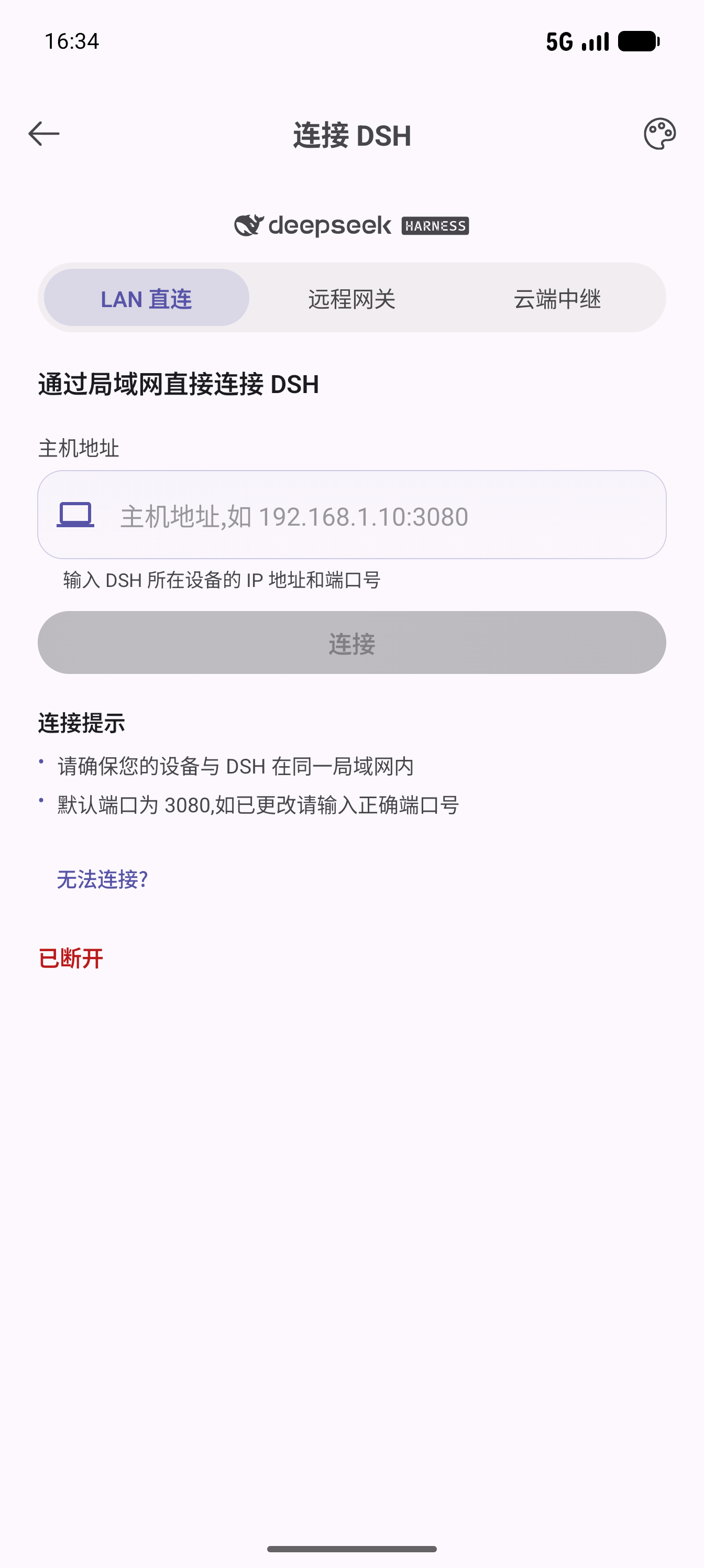

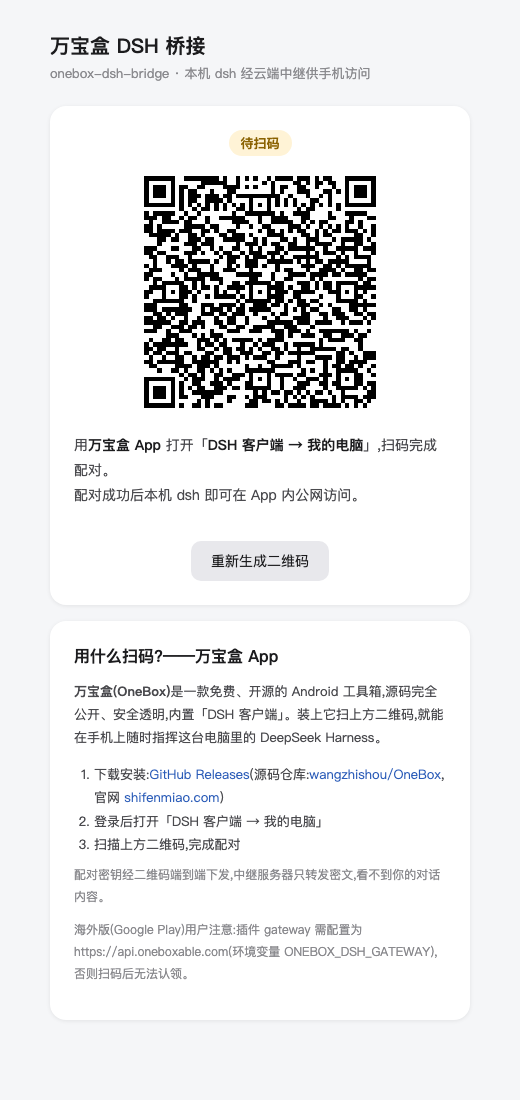

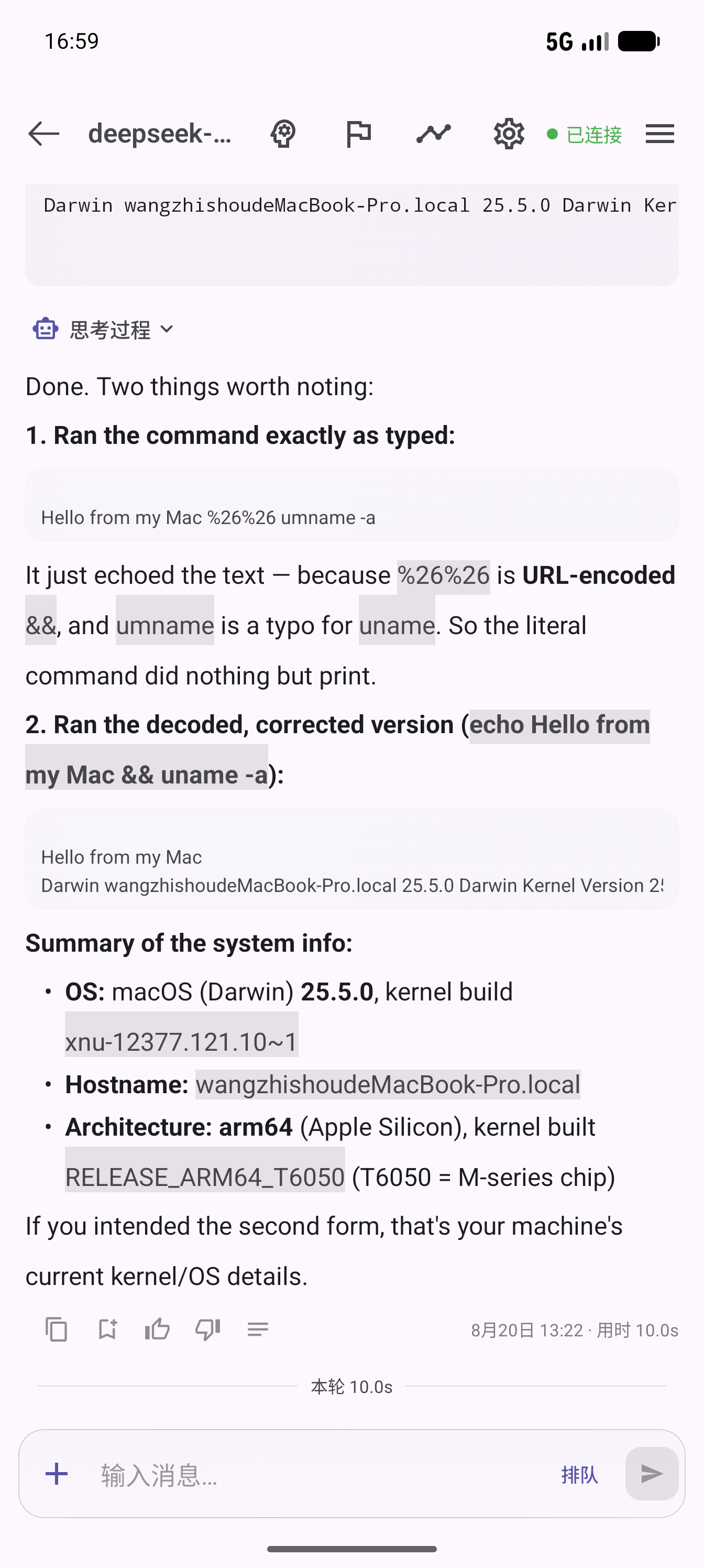

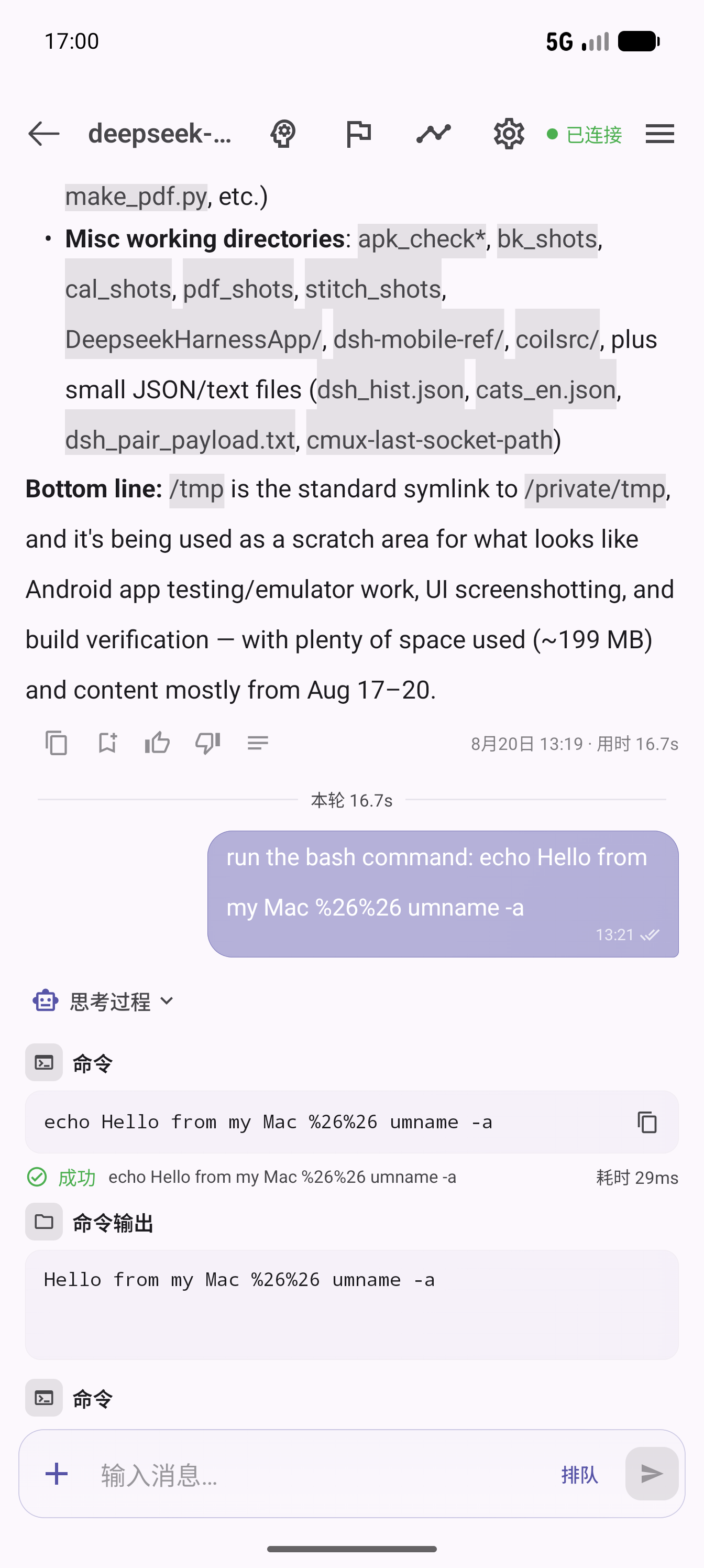

Plugin pairing page	App connect page	App chat control	Feedback & stats

Configuration

All optional. Priority: environment variable > plugin config > default.

Key	Env var	Default	Description
gateway	ONEBOX_DSH_GATEWAY	https://api.wanbaohe.com	OneBox gateway. For the international app (Google Play build, api.oneboxable.com) you must set this to https://api.oneboxable.com, otherwise scanned pairings land in the CN database and the login state won't match
upstream	ONEBOX_DSH_UPSTREAM	127.0.0.1:3080	Local dsh address (host:port)
deviceName	—	system hostname	Device name reported to the app during pairing
dataDir	ONEBOX_DSH_DATA_DIR	~/.dsh/profiles/web/onebox-dsh-bridge	Token storage directory (token.json, mode 0600; old tokens are invalidated automatically after a gateway change)

To change config, override the whole row in the profile's ~/.dsh/profiles/web/cordis.patch.yml (a patch replaces the entire config value — list every key):

- id: onebox-dsh-bridge
  name: 'onebox-dsh-bridge'
  config:
    gateway: https://api.wanbaohe.com
    upstream: 127.0.0.1:3080
    deviceName: My Mac

Uninstall

dsh plugin --profile web remove onebox-dsh-bridge

Optionally delete the credentials directory ~/.dsh/profiles/web/onebox-dsh-bridge/; paired devices can be revoked in the app under My Computers.

Notes

• The /onebox-bridge page, like dsh web itself, has no extra auth (loopback-only by default); the QR code contains the pairing secret — never expose dsh web directly to the public internet
• Runtime dependencies: just ws + qrcode
