dsh-su — SketchUp bridge for DeepSeek Harness

A DeepSeek Harness (DSH) plugin that turns a live SketchUp Pro session into agent tools: run Ruby task scripts, inspect the model, save .skp files and capture viewport images — all over a local JSON-lines TCP bridge, with the companion SketchUp extension installed and updated automatically.

一个把 SketchUp 2023 接入 DeepSeek Harness 的插件：DSH Agent 可以直接驱动一个 常驻的 SketchUp 会话（跑 Ruby 脚本、查模型、存 .skp、截图），配套的 SketchUp 扩展由插件 自动安装/更新。

Features

• 8 agent tools — su_status, su_install_extension, su_ensure, su_run, su_eval, su_save, su_capture, su_stop.
• Warm SketchUp session — launch once, then every task is a short bridge round-trip (typically 10–100 ms) instead of restarting the app.
• Self-contained SketchUp extension — installed into Plugins\ on first use (also shipped as a .rbz); starts the bridge automatically and adds Extensions → DSH Bridge (status / logs / restart).
• Bundled metric modelling kit — task scripts require 'su_kit' for boxes, cylinders, extrusions, tags, materials, cameras, screenshots and validation helpers (metres in, metres out).
• Bundled skill sketchup-modeling — workflow + SketchUp 2023 / Ruby 2.7 pitfalls.
• Safe by default — tools are workspace-restricted, refuse silent overwrites, and refuse to reset a document when another bridge is already running.

Architecture

DSH plugin (this package)                     SketchUp 2023 extension (bundled)
┌──────────────────────────────┐  TCP 47311   ┌────────────────────────────────────┐
│ index.js  (8 tools)          │  JSON lines  │ dsh_su_bridge.rb  (extension loader)│
│ lib/su-bridge.js             │ ───────────▶ │   └─ dsh_su_bridge/server.rb        │
│ lib/sketchup-extension.js    │ ◀─────────── │        (TCP server on main thread)  │
└──────────────────────────────┘   ok/result  │   └─ dsh_su_bridge/su_kit.rb        │
        │ installs extension ─────────────────┐ └────────────────────────────────────┘
        │ %APPDATA%\SketchUp\SketchUp 2023\   │
        │        SketchUp\Plugins\            │  bridge data/logs:
        └─────────────────────────────────────┘  %LOCALAPPDATA%\dsh-su\

SketchUp's Ruby API is single-threaded: the socket thread only does I/O, and model commands are queued through UI.start_timer onto the main thread. The extension also handles SketchUp 2023's quirk that Ruby plugins are not loaded while the welcome screen is open — the plugin therefore launches SketchUp with a template .skp.

Requirements

• Windows 10/11
• SketchUp Pro 2023 (developed and tested with 23.1.315, Ruby 2.7.7)
• DeepSeek Harness with a desktop profile (~/.dsh/profiles/desktop)
• Node.js ≥ 22.12 (provided by DSH)

Install

1. Add the DSH plugin

$profile = "$env:USERPROFILE\.dsh\profiles\desktop"

# In $profile/package.json:
#   dependencies += "dsh-su": "link:D:/path/to/dsh-su"      (link: = live link, recommended)
#                    or      "dsh-su": "file:D:/path/to/dsh-su"
#   dsh.profile.bundles += "dsh-su"

# Install with the Node/pnpm bundled with DSH:
$node = "$env:USERPROFILE\.dsh\dsh-runtimes\dsh-primary-runtime\dependencies\node\bin\node.exe"
$pnpm = "$env:USERPROFILE\.dsh\dsh-runtimes\dsh-primary-runtime\dependencies\pnpm\bin\pnpm.mjs"
Set-Location $profile
& $node $pnpm install --prefer-offline

Restart DeepSeek Harness. The tools listed above appear in the tool set and the sketchup-modeling skill is registered.

2. SketchUp side (automatic)

Nothing to do: su_ensure / su_install_extension copy the bundled extension into %APPDATA%\SketchUp\SketchUp 2023\SketchUp\Plugins\ and update it when the version changes. A SketchUp instance that is already open must be restarted once so the extension loads.

Manual alternative: install dist/dsh-su-sketchup-<version>.rbz through Extension Manager. Build it with python scripts/build-artifacts.py.

Configuration

Configured through the plugin's cordis.patch.yml or your profile cordis.patch.yml:

- id: su-modeling
  name: dsh-su
  config:
    sketchupExecutable: 'C:\Program Files\SketchUp\SketchUp 2023\SketchUp.exe'  # optional
    templatePath: 'C:\Program Files\SketchUp\SketchUp 2023\Resources\en-US\Templates\Temp01a - Simple.skp'  # optional
    pluginsDirectory: ''        # default: %APPDATA%\SketchUp\SketchUp 2023\SketchUp\Plugins
    host: '127.0.0.1'
    port: 47311
    timeoutMs: 180000           # per bridge command
    launchTimeoutMs: 240000     # wait for the bridge after launching SketchUp
    maxOutputChars: 20000
    restrictToWorkspace: true   # su_run/su_save/su_capture stay inside the session workspace
    autoInstallExtension: true
    registerSkill: true

sketchupExecutable and templatePath are optional: the plugin probes common install locations (Program Files, D:\su, SU_EXE / SU_TEMPLATE environment variables) and reports what it found in su_status.

Tools

tool	what it does
su_status	bridge health, active model, extension version, detected paths, hints
su_install_extension	copy/update the SketchUp extension in Plugins\
su_ensure	install extension, reuse or launch SketchUp, wait for the port, set units to metres
su_run	run a .rb task script inside SketchUp; returns $dsh_result
su_eval	evaluate a Ruby snippet; returns $dsh_result
su_save	save the document as .skp (workspace-restricted, no silent overwrite)
su_capture	write a viewport PNG (workspace-restricted, no silent overwrite)
su_stop	quit the SketchUp instance that owns the bridge

Typical flow:

su_status
su_ensure
su_run(script: "tasks/build_model.rb", args: { out: "deliver/model.skp" })

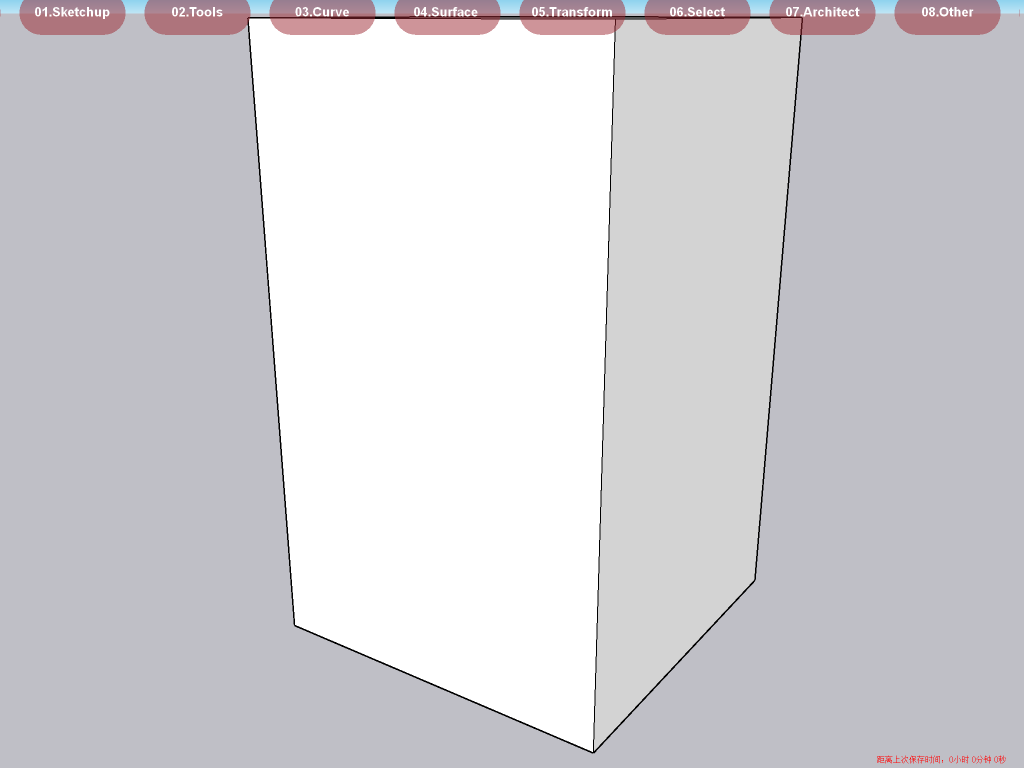

su_capture(output_path: "qa/hero.png", width: 1600, height: 1100)
# read_image("qa/hero.png") to actually inspect the result
su_save(output_path: "deliver/model.skp")

Task scripts run inside SketchUp (Ruby 2.7) and can use the bundled kit:

require 'su_kit'

k = SuKit::Kit.new
k.reset                        # empty model, metres
k.tag('01-SOLID', 'C8BFA8')
k.box([0, 0, 0], 1.2, 1.2, 2.0, tag: '01-SOLID')
k.material('MAT-A', 'C8BFA8')
k.camera([3, -3, 2], [0.6, 0.6, 1.0], lens: 50)
k.zoom_extents
k.capture('preview.png', 1600, 1000)
$dsh_result = { 'counts' => k.counts, 'bbox_m' => k.bbox_m, 'summary' => k.summary }

su_kit API: reset units tag use_tag box cylinder polygon_extrude polyline arc_2d group erase_all smooth_curves material paint camera zoom_extents dolly_out capture bbox_m counts summary save export, plus helpers Chrono box_f seg_box_f cyl_f sphere_f glass_f edge_hide! text3d white_studio! shadow_setup! frame_view! sanity_bounds! deep_counts.

Protocol

One JSON object per line over TCP (127.0.0.1:47311):

{"id":"a1","cmd":"run","script":"C:/abs/task.rb","args":{}}
{"id":"a1","ok":true,"result":{"script":"...","elapsed_ms":53.4,"result":{}}}
{"id":"a2","ok":false,"error":"RuntimeError: ...","backtrace":[]}

Commands: ping info setup reset run eval save capture open new reload quit. The extension log lives in %LOCALAPPDATA%\dsh-su\logs\bridge.log; ready.json holds the active port and SketchUp/Ruby versions.

Tests

# no SketchUp needed: module shape, tool/skill registration, path guards
node test/unit.mjs

# real SketchUp: extension install, launch, run, save, capture, quit
node test/integration.mjs

# the same but through the actual plugin tools (needs SketchUp)
node test/tools-e2e.mjs

test/integration.mjs and test/tools-e2e.mjs refuse to run while another bridge is answering, so they never touch a document you have open; they launch and quit their own SketchUp instance. Set SU_EXE / SU_TEMPLATE / SU_PORT to override detection.

Build artifacts

python scripts/build-artifacts.py
# dist/dsh-su-sketchup-<version>.rbz   SketchUp extension (Extension Manager)
# dist/dsh-su-<version>.zip            DSH plugin package

scripts/build-artifacts.py packages the extension into .rbz and the plugin into a zip. The extension Ruby files are committed, so building is optional.

Repository layout

dsh-su/
  index.js                     DSH plugin entry (tools + skill registration)
  cordis.patch.yml             bundle registration
  lib/su-bridge.js             TCP JSON-lines client
  lib/sketchup-extension.js    extension install, path detection, launch/wait
  sketchup/dsh_su_bridge.rb    SketchUp extension loader
  sketchup/dsh_su_bridge/      main.rb / server.rb / su_kit.rb / VERSION
  skills/sketchup-modeling/    bundled agent skill
  scripts/                     build helpers
  test/                        unit + integration + end-to-end tests

Uninstall

1. DSH: remove dsh-su from the profile dependencies and dsh.profile.bundles, run pnpm install, restart DSH.
2. SketchUp: uninstall DSH Bridge (SU + DSH) in Extension Manager, or delete Plugins\dsh_su_bridge.rb and Plugins\dsh_su_bridge\.
3. Optional: delete %LOCALAPPDATA%\dsh-su\.

Limitations

• One bridge per machine: a single SketchUp instance owns port 47311; other instances need a restart to take over. su_ensure reports when it started a new instance.
• Only SketchUp 2023 is tested (Ruby 2.7). Newer SketchUp versions should mostly work but are unverified.
• The bridge is local-only (127.0.0.1) and has no authentication: treat it as a development tool run by the same user.

License

MIT — see LICENSE.
