dsh-ui-tool-graph

A tool-call value graph tab for the DeepSeek Harness (dsh) Web UI.

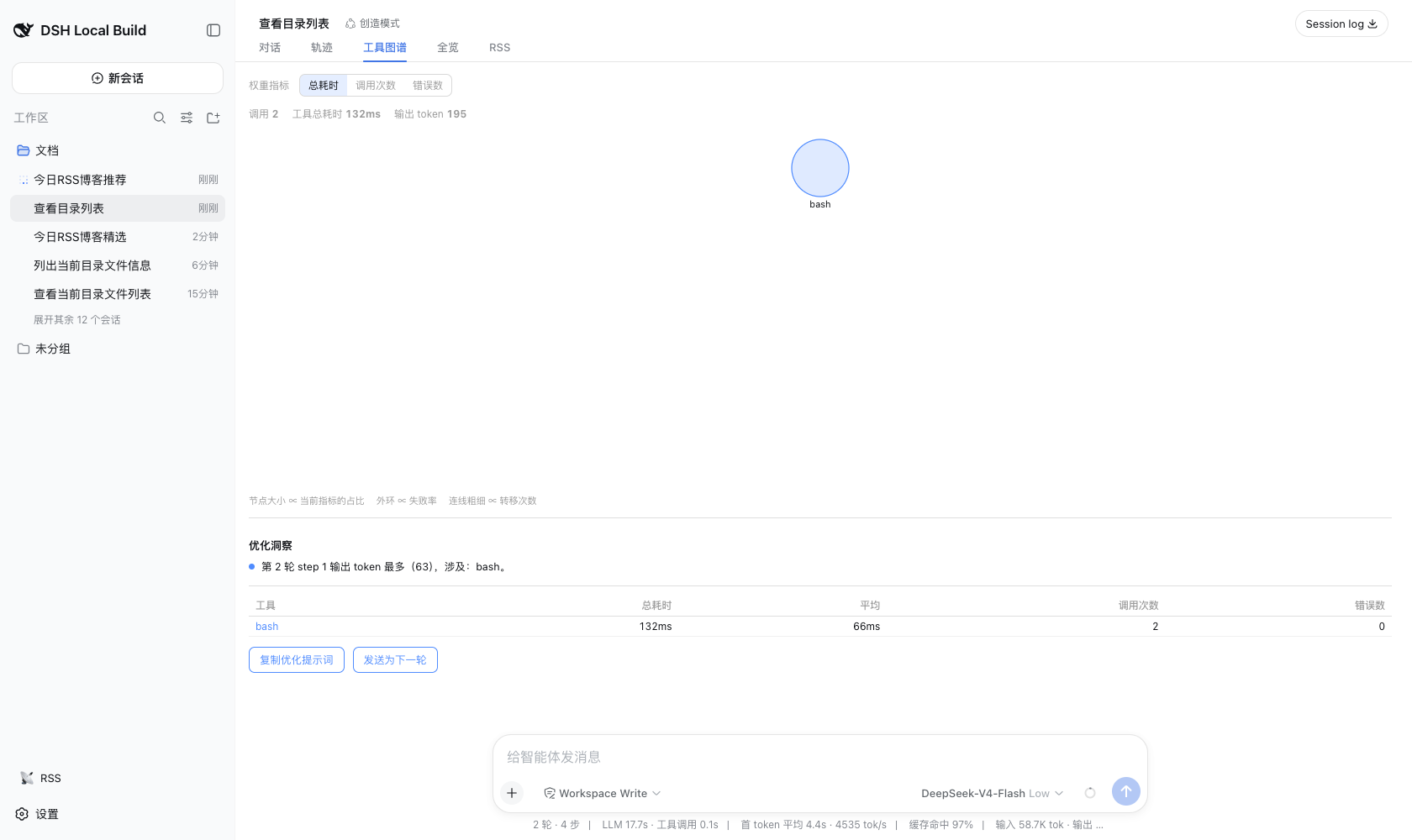

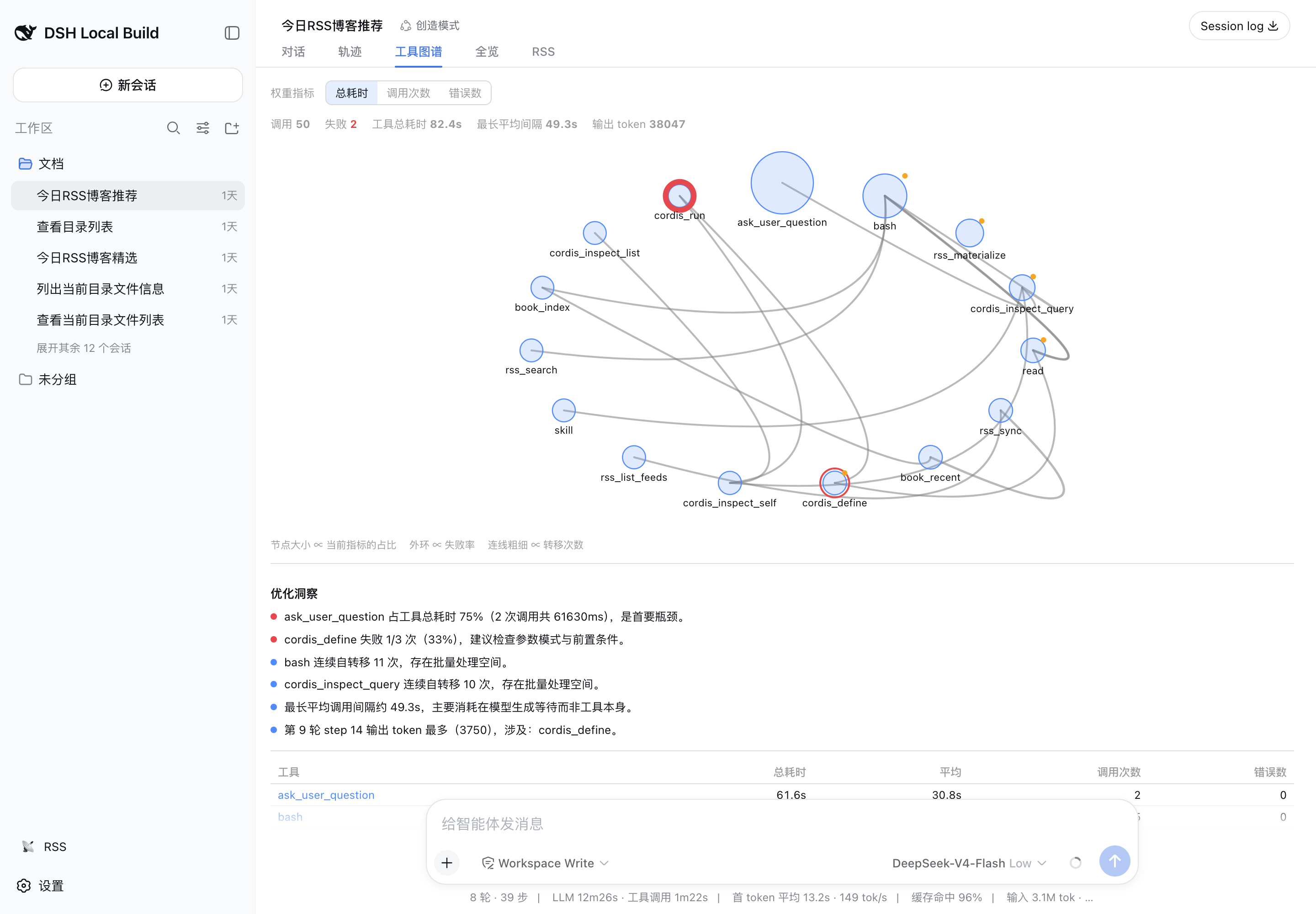

Agent trajectories bury their own economics: which tool ate the wall time, where calls failed, how many tokens each round burned, which calls repeated themselves verbatim. This plugin adds a Tool Graph (工具图谱) tab to the conversation view ring that folds the session log into one weighted relationship graph:

• Nodes are tools, sized by the metric you pick (total duration, call count, errors) with an outer ring proportional to the error rate;
• Edges are transitions, one per consecutive dispatch pair within a turn, weighted by transition count;
• Insights call out the dominant bottleneck, error-prone tools, identical repeat calls, self-loops worth batching, the longest inter-call wait, and the step that produced the most output tokens;
• Next-turn guidance renders those metrics into a self-contained analysis prompt you can copy to the clipboard or queue as your literal next message.

Everything is folded client-side from the durable session log — deterministic, replay-safe, no extra model calls, no persistence, zero token cost.

Features

• Weighted radial graph — switch node weighting between total duration / call count / errors at any time; edge width ∝ transition count.
• Optimization insights — rule-derived findings with severity dots: bottleneck share, error-prone tools, verbatim repeats (cache/dedup candidates), consecutive same-tool chains, model-generation waits, token-heavy steps.
• Per-tool ranking table — total / average duration, calls, errors; click a row or node to drill into every individual call with its duration and argument excerpt.
• Session totals strip — calls, running, failures, tool wall time, longest average gap, output tokens.
• One-click next turn — copy the analysis prompt, or send it as your next queued message after an explicit second click.

Installation

Tarball from a release (no build-script permission needed):

dsh plugin --profile web add https://github.com/rocklau/dsh-ui-tool-graph/releases/download/v0.1.2/dsh-ui-tool-graph-0.1.2.tgz

Or from source:

dsh plugin --profile web add github:rocklau/dsh-ui-tool-graph

A git install fetches sources, so pnpm runs this package's prepare script on first add; follow the CLI's prompt to allow the build in the profile's pnpm-workspace.yaml, then re-run the command. Restart dsh web afterwards — the 工具图谱 tab appears in every session header.

Uninstall: dsh plugin --profile web remove dsh-ui-tool-graph.

How it works

Metric	Definition
Call duration	tool/result time − paired tool/call time (wall clock)
Tool wall time	Sum over completed calls in the loaded window
Error rate	Error results ÷ completed calls per tool
Transition edge	Consecutive call pair within one turn, in log order
Average gap	Per-edge mean of result→next-start latency (dominated by model generation wait)
Tokens	Provider usage carried by each finalized assistant message, deduplicated per step

The view target folds incrementally (replace/apply over the event window), so totals cover exactly what the history window holds; page older turns in the Trajectory tab to extend coverage.

Known limitations

• Nested sub-calls (delegations) fold as their parent result only.
• The LLM-vs-tool wall-time split is approximated by inter-call gaps; per-request timing attribution is not yet surfaced.
• Single-tool sessions render one node without edges — by definition.

Development

pnpm install
pnpm typecheck   # tsc --noEmit (strict)
pnpm test        # vitest: folding parity, layout purity, prompts, component behavior
pnpm build       # lib/index.js (node half) + lib/client.js (browser bundle)
pnpm pack        # installable tarball

The package is a dual-identity bundle: dsh.bundle ships the patch layer, dsh.client declares the web plugin. Runtime imports are limited to the host-shared module table (react/cordis/client-runtime); everything else is bundled.

License

MIT
