codex-ui is a community-maintained interface plugin for DeepSeek Harness (DSH), not an official DeepSeek AI product.

This plugin rebuilds DSH Web interface elements to match Codex: edge shadows and hairlines, the sidebar divider, the model and reasoning-effort menu, composer structure, and the light and dark palettes. Values come from Codex screenshots and its color picker, measured per pixel. The measurements and the source images are in the sections below and in assets/reference/.

Host compatibility

Developed against DSH 0.1.7-rc.1 (npm global install) and 0.1.7-rc.2 (Windows desktop shell app.asar); the full 0.7.0 verification ran on the npm release @deepseek-ai/dsh@0.1.7-rc.2 (fixtures against both its node_modules and an app.asar packed from it, the live checks on a dsh web booted from it; see "Host and browser"). Fixtures read the shipped host CSS and render code directly, so a structural host change fails their assertions.

Features

Id	Content
⑳	Model picker, face B (on by default): a component of our own takes over the composer model seat — model list (grouped by provider, with descriptions) plus the Codex reasoning power rail (24px track / 4px ticks / 28px white thumb, real drag, ←/→/Home/End, levels from the data); during the round trip it shows the new level optimistically with a spinner and never clears the list (the optimistic value prefers the host's pending and falls back to the seat's own record — 0.1.7-rc.1 has no such field); the slider's form follows dsh-claude-style (a 26px groove with an 8px radius, a 26% ink fill, a 16×30 knob, and a Faster/Smarter row under the groove), and the top rung swaps in a violet dot matrix (5 rows of hash-scattered blocks, #8b7ad0 light / #9d8ce0 dark, stopped by both prefers-reduced-motion and the script's data-reduced-motion); the trigger cross-fades the effort label with blur. Can be switched off in settings
⑫	Model picker, face A (the host menu when ⑳ is off): opaque white menu (18px radius), 28px rows with 13px radius (concentric: 18 − 5px inset), permanent check column, pending spinner
⑬	Composer header turned blank, panel buttons keep the official icons
⑬c	Both header slots released: entries registered there render again (subagent descendant count / job roster / preset badge / open-in-app); the view tabs stay hidden. The entries are conditionally rendered, so the top bar is unchanged in the common case
⑬d	An exit for the Trajectory view: once ⑬ hides the tab strip, Trajectory has an entrance but no way out — a tool card's expanded Inspect goes through openView('trajectory', callId), and the only route back was that strip. While the Trajectory view is showing, a "← Chat" pill floats at the lower-left of the view area; clicking it clicks that very tab, the same selectView callback a real click uses, with no host internals involved. Structure in src/client/trajectory-exit.js, looks in skins/codex-ink/trajectory-exit.css. Which tab is Chat is calibrated from aria-selected while Chat renders, falling back to the tab's own text; with neither, no button is shown at all. If the strip ever becomes visible again this layer steps aside. Any mismatch with the host layout warns and skips
⑭	Composer card: radius (card 20/25, top strip = the card's own radius), shadow, geometry, tool row, hero layout
⑯	Right panel guide entries: no border, no fill, 52px rows, 20px icons, filled shortcut pills
⑰	Composer bottom controls: add button has no box until hover; model and permission controls share the hover chip and, like the add button, are fully rounded (Codex reference measures R = h/2)
②	Sidebar colors match the Codex light sidebar; sidebar rows align with the workspace list
②c	Conversation window edge: 0.5px hairline plus a 24px ambient shadow
②d	Right panel: hairline only on its left edge, shadow bleeds upward only; the dockkit 1px border is removed
②e	Right divider handle: center-darkest gradient on hover
⑱	Settings card on the plugin manager's codex-ui bundle page: theme / accent / background / foreground / UI font / code font / translucent sidebar / Codex model picker / contrast
㉑	Settings modal, full-page Codex pass: the settings dialog gets a grouped sidebar (a "← Back to app" row, a search box that filters host items, group headers), a page header in the content area, white cards with hairlines on every sub-page and sticky save bars. Structure comes from src/client/settings-modal.js (host anchors only, host nodes never moved or cloned, hiding driven by a durable data-* attribute), looks from skins/codex-ink/settings-modal.css. Any step that does not match the host layout warns and skips — the layer degrades, it never throws

Screenshots

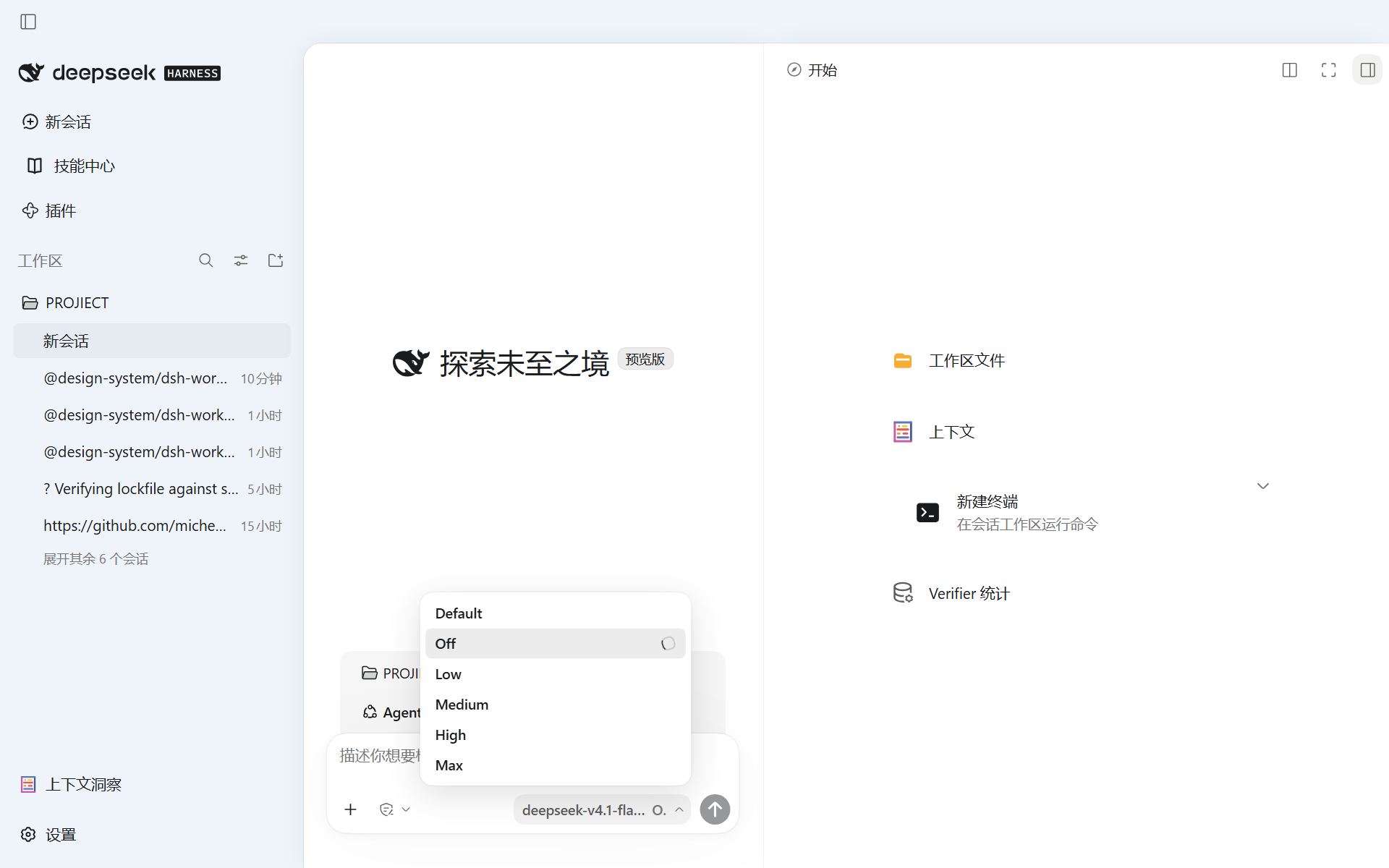

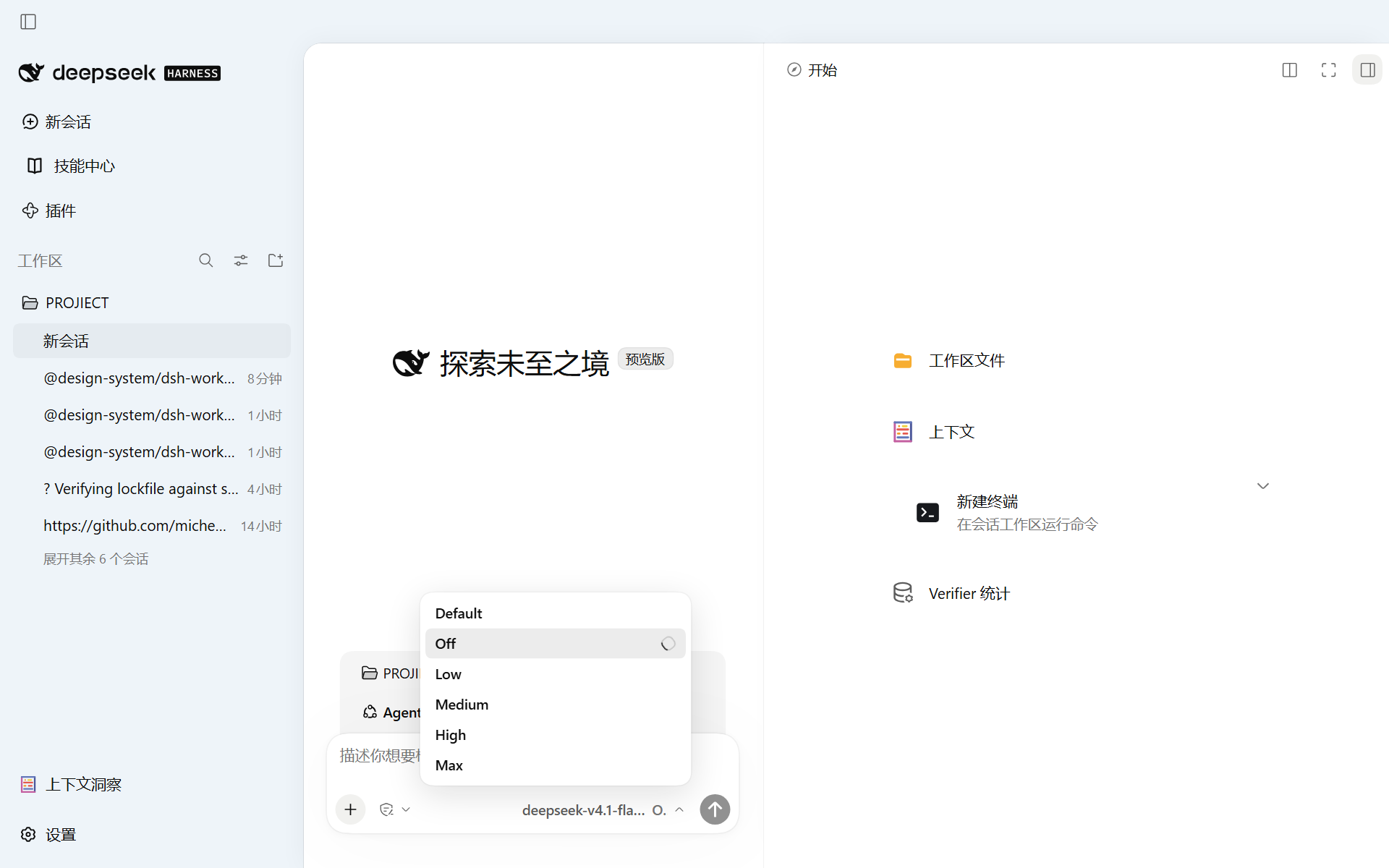

Light theme: conversation window edge and right panel.

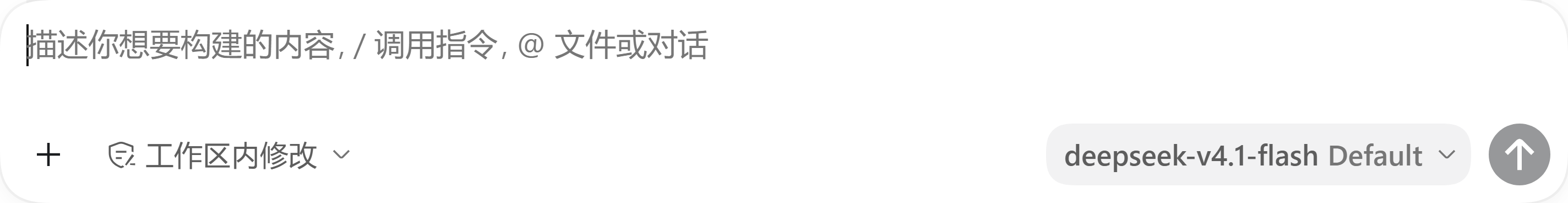

Composer bottom row: no box by default, a chip on hover.

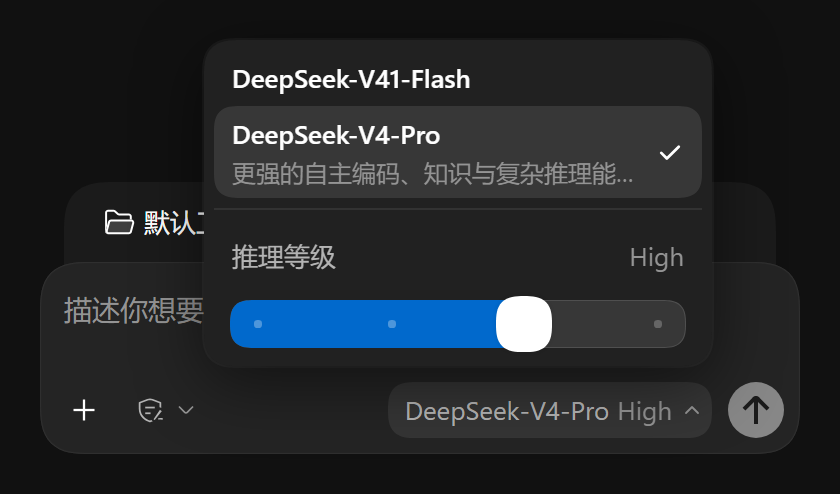

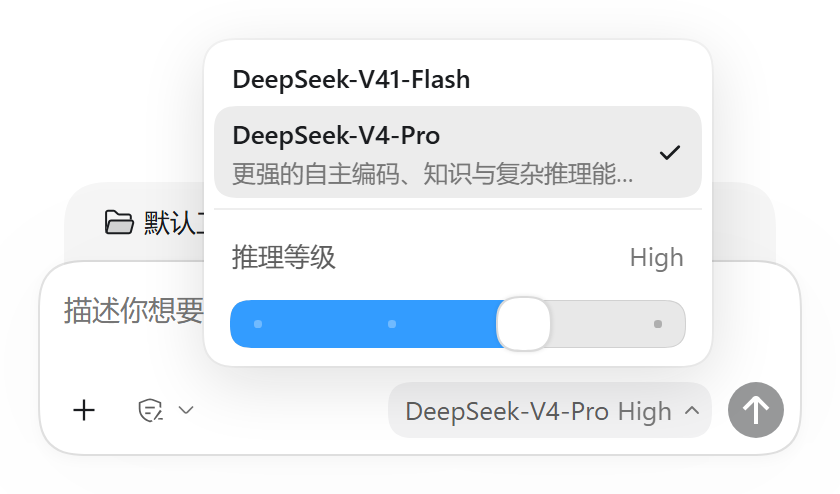

Model picker face B (captured on a real dsh web instance): model list plus reasoning power rail, light and dark.

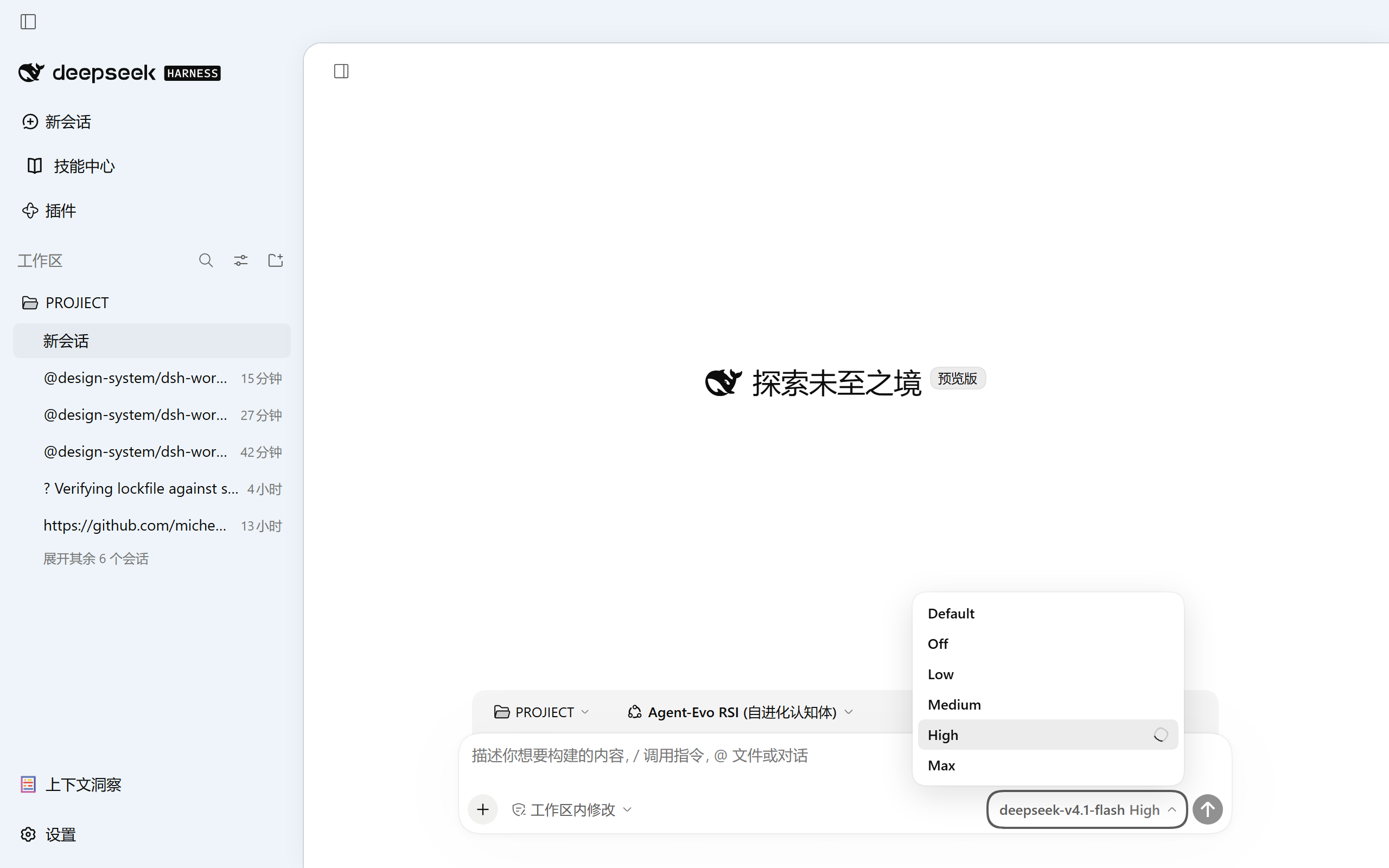

With face B switched off, the host menu (face A) while a reasoning effort is being written.

Install

A standard DSH plugin install; none of this repository's scripts are involved:

dsh plugin --profile web add link:<absolute repo path>   # adds a link dependency and puts the package into dsh.profile.bundles
dsh web
dsh plugin --profile web remove codex-ui                 # uninstall: removes the dependency and the bundles entry

To keep your everyday profile untouched, try it in a new profile first:

dsh codex --from-default-profile web --dump-config   # creates the codex profile from the web template
dsh plugin --profile codex add link:<absolute repo path>
dsh codex --port 3099 --no-open

The desktop app owns its profile and the CLI refuses to write it: open "Plugins" → "Add plugin" in the app and enter the absolute repo path (the dialog accepts a package name, a Git URL, a tarball or a local absolute path). @deepseek-ai/schemastery is declared in peerDependencies and provided by the host.

link: points at the repository itself: after changing a stylesheet or a component, run npm run build and reload the page. A change to the Config in index.js needs a dsh web restart (the host half loads at boot).

Migrating from 0.6.0 or earlier: install-plugin.mjs is gone. It installed a copy at profiles/<name>/vendor/codex-ui plus a node_modules/codex-ui junction, registered either through the package name in dsh.profile.bundles or a hand-written - insert: in the profile cordis.patch.yml. Remove those before the standard install — two registrations of the same id fail the market check and the plugin is disabled.

The same stylesheets can be picked up by a skin loader:

node scripts/install-skin.mjs          # per-file SHA256 check against $DSH_HOME/skins/codex-ink
node scripts/install-skin.mjs --write  # overwrite on drift

Development

npm run build                    # regenerate theme.css and client.js from skins/codex-ink and src/client
node scripts/build.mjs --check   # report stale artifacts without writing

The build has no dependencies and one implementation, scripts/build.mjs: the eight stylesheets are stripped of comments and scoped to html[data-codex-ui] into theme.css; the ES modules in src/client/ are bundled in dependency order into one classic script, client.js (the DSH __ModuleLoader__.load shape, stylesheet inlined, host packages such as react resolved through the loader's require). It accepts two import forms (import { a, b as c } from '…', import * as ns from '…') and three export forms (export const | function | class); anything else fails the build instead of bundling wrongly.

Adding a feature: a module in src/client/ exporting installXxx(ctx) plus one line in apply in src/client/index.js; new styles go into a new file in skins/codex-ink/, registered in SKIN_PARTS in scripts/build.mjs. Required host services go into inject (one missing service keeps the plugin inactive); optional ones go through a ctx.inject([...], cb) child scope, as the model picker does.

Layout

Path	Content
index.js cordis.patch.yml package.json	Host half (the Config schema) and manifest
src/client/index.js	Browser half entry: inject and apply, wiring up the modules below in order
src/client/stylesheet.js	Injects the skin (style[data-plugin], which the host removes on unload and hot reload)
src/client/settings.js theme-preview.js settings-card.js	Settings: the override <style>, the local theme preview, the config card on the bundle page
src/client/settings-modal.js	㉑ settings-modal structure layer: grouped sidebar, search filter, page header, attribute-first hiding. Host anchors only — host nodes are never moved or cloned, and any step that does not match the host layout warns and skips
src/client/override.js	Override-layer pure functions (no DOM; unit-tested by check.mjs)
src/client/model-picker/	Model picker face B: index.js waits for the modelDirectories service, component.js is the seat takeover, popover and power rail, view.js holds the pure functions (unit-tested by check.mjs)
src/client/trajectory-exit.js	⑬d Trajectory exit: floats a "← Chat" pill that clicks the Chat tab itself (the same selectView callback a real click uses, no host internals). Calibrates which tab is Chat from aria-selected, falls back to its text, and shows no button at all when neither resolves
src/client/constants.js host.js	Shared names and small helpers for reading host services
skins/codex-ink/	Stylesheet sources (skin.css / patches.css / model-picker.css / sidebar-align.css / sidebar-surface.css / window-shadow.css / composer.css / settings.css / settings-modal.css / trajectory-exit.css) and the Skin v2 manifest
theme.css client.js	Generated by scripts/build.mjs and committed (DSH loads client.js)
scripts/build.mjs	Scoping and bundling
scripts/check.mjs	Host-free repository checks; the CI entry point
scripts/verify.mjs scripts/specs/	Fixture verification: shipped host CSS plus a rebuilt DOM, asserted in headless Chromium
scripts/live/	Live GUI verification: gui.mjs, settings.mjs, and parity.mjs (per-element computed-style comparison before and after a change)
scripts/lib/	Host and browser lookup (host.mjs), CDP driver (cdp.mjs), assertion summary (checks.mjs)
scripts/install-skin.mjs	Sync for the skin loader path
docs/	Plans, recon reports and decisions — docs/README.md says which are current and which are historical records
assets/reference/	Codex reference images
assets/screenshots/	Images used by the READMEs
.github/workflows/ci.yml	CI

Verification

Command	Coverage	Requirement
npm run check	Syntax, JSON, manifest and peerDependencies, artifacts in sync with sources, the DSH client plugin contract of client.js (executed once in isolation), scoping, override-layer and power-rail pure functions, 36 WCAG pairs, color whitelist, encoding, docs pairing, machine-specific paths, the settings-modal contract (sources / scoping / host-first anchor / assembly) — 67 checks	none
npm run verify	All fixtures, 224 assertions (table below)	host packages + Chromium
node scripts/live/gui.mjs --url <token URL>	Real GUI: shadows and both dividers, plus the model seat — 14 assertions with face B on (takeover, geometry, a keyboard change written into the host store and reverted), 10 with it off (the face A pending window; --latency adds 800ms to that round trip by default, since locally it takes <60ms and cannot be sampled)	a running dsh web
node scripts/live/settings.mjs --url <…>	Real GUI: the card on the bundle page, its 9 rows, no override at defaults, switch and accent writes, the host seat coming back when the model picker is off, survival across a reload, no intermediate frame while switching theme; resets everything at the end — 30 assertions	same, with the plugin manager enabled
node scripts/live/settings-modal.mjs --url <…>	Real GUI: the ㉑ structure layer and its visual layer together — the grouped sidebar, the "← Back to app" row, the search filter, group headers, host node identity (nothing moved or cloned), and the attribute-first hiding that survives the host rewriting className. Needs a live dsh web with the plugin manager enabled; --explore dumps the structure without asserting	same
node scripts/live/settings-sweep.mjs --url <…> --out <dir> --prefix c1	Opens every settings page in light and dark, screenshots each and measures layout health. Zero pages found is a hard failure (non-zero exit): a sweep that scans nothing must never report PASS	same
node scripts/live/parity.mjs snap --url <…> --out <dir> node scripts/live/parity.mjs diff <before> <after>	Stores every element's computed style across 14 UI states and compares them; exits 0 on zero differences. This is how a refactor proves the look did not change. --ignore skips given properties or newly added --variables	same

Fixtures: node scripts/verify.mjs [spec…]; without a spec, all of them run.

Spec	Sections	Coverage	Assertions
composer	composer-shadow · hero	⑱ composer shadow fitted to measured pixels (two layers — ring + near field; per-layer geometry and alpha, dark inset, narrow and wide viewports agreeing, rendered pixels); ⑬ ⑭ ⑰, the focus ring, the released header slots and the badge colour / radius read from the tokens themselves	21 + 25
elevation	elevation	⑲ --dsw-elevation-* against Codex's source, plus a rendered menu panel	19
model-picker	host-menu · power-rail	⑫ face A (the host menu) and the pending indicator; ⑳ face B: seat takeover and hand-back, geometry, no commit while dragging / one snapped commit on release, no snap-back and a spinner during a slow round trip, the top-rung violet dot matrix (5 rows, 8 tone buckets, hash-scattered phases, feathering, both reduced-motion switches), the four keys, focus ring, Escape, model change carrying its default effort, failure notice, reduced motion, dark, the switch. The fake directory is shaped like the installed host (no pending in the snapshot)	20 + 62
rightbar	rightbar	Shadow layer, right panel, both dividers	42
sidebar	align · surface	Sidebar column alignment; the sidebar scroll fade (Codex mask ramp), mechanism plus per-pixel alpha	6 + 13
sidebar-color	sidebar-color	The sidebar base against Codex's measured pixels, both themes on one page: light 246/233/255 and dark 15/31/17 (all neutral, R=G=B), the sidebar-to-content step in each, the hierarchy direction, plus a per-theme negative control	16

Options: --host <app.asar | node_modules> picks the host, --shots <dir> the screenshot directory (default codex-ui-shots/ under the system temp directory), --verbose prints the readings. Fixtures read the shipped host CSS over a DOM rebuilt from the render code with getComputedStyle; they have no title bar, no real AppFrame grid and no real RPC, so the shadow layer, divider hover and pending feedback are verified on the live GUI.

Host and browser

Fixtures read the host they run against, taking the first available source in this order (an explicit path that does not exist is an error):

1. DSH_ASAR (the desktop shell's app.asar) or DSH_GLOBAL_MODULES (any node_modules containing @deepseek-ai/*);
2. scripts/host.local.json, a gitignored per-machine file with asar / globalModules / chrome;
3. a scan of the desktop shell's standard install locations and npm root -g.

The browser comes from DSH_CHROME, then Playwright's Chromium, a local Chrome, and Edge. No machine-specific path is committed (npm run check scans every file, including the JSON-escaped form inside client.js).

Without a desktop shell, the same packages from npm are enough; no asar is needed:

npm install @deepseek-ai/dsh@0.1.7-rc.2 --prefix <tmp>
$env:DSH_GLOBAL_MODULES = "<tmp>/node_modules"
npm run verify

The same package boots a real instance (the first run creates the web profile; then add the plugin as in "Install"): $env:DSH_HOME = "<tmp>/home"; node <tmp>/node_modules/@deepseek-ai/dsh/lib/bin.js web --port 3098 --no-open. The token URL it prints is the --url for the live checks.

Settings page

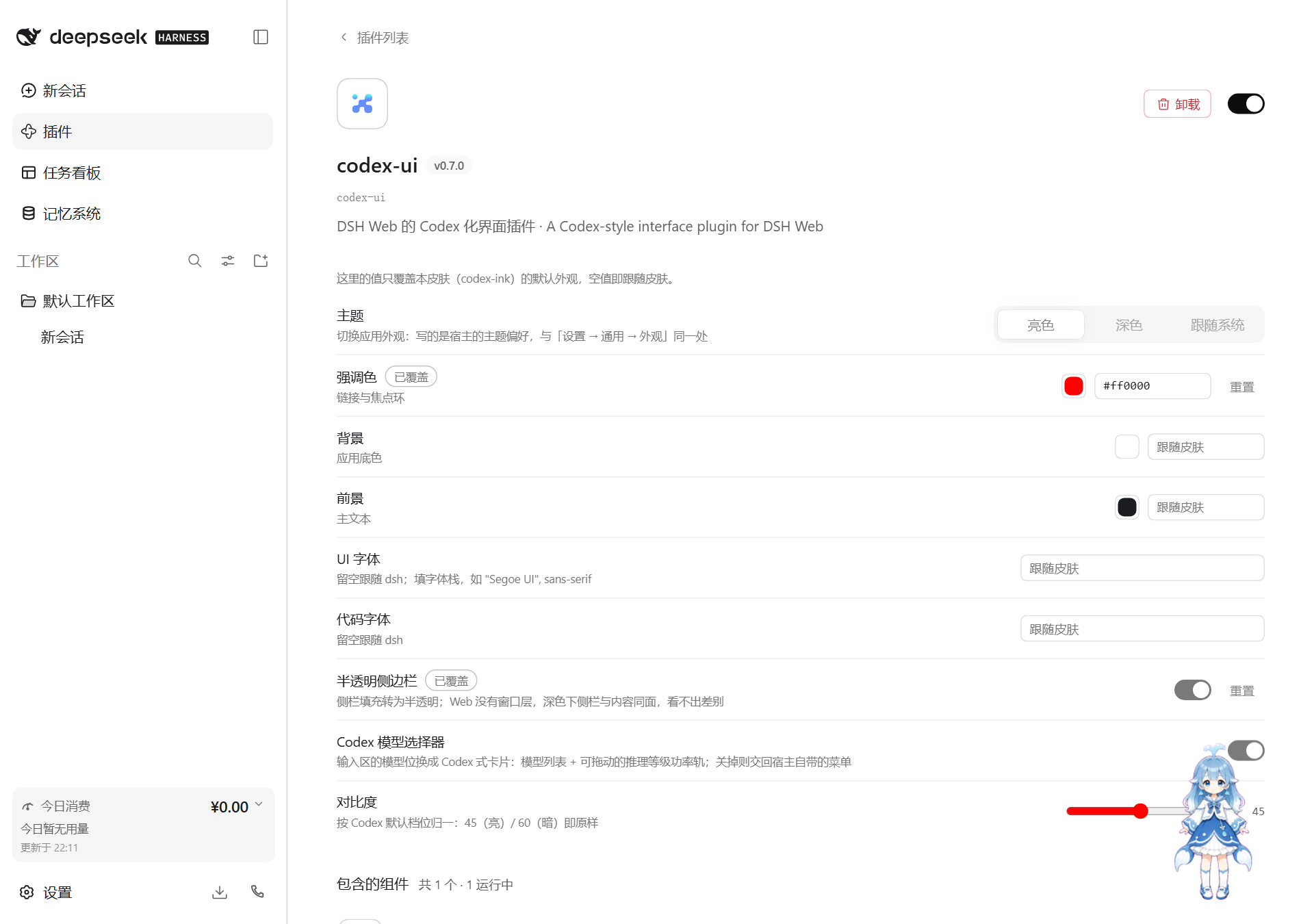

The config card on the plugin manager's bundle page (slot plugins.bundle.config, keyed by the package name codex-ui). In the desktop app: sidebar Plugins → Installed → codex-ui → the card on that page. Changes apply immediately; no restart needed.

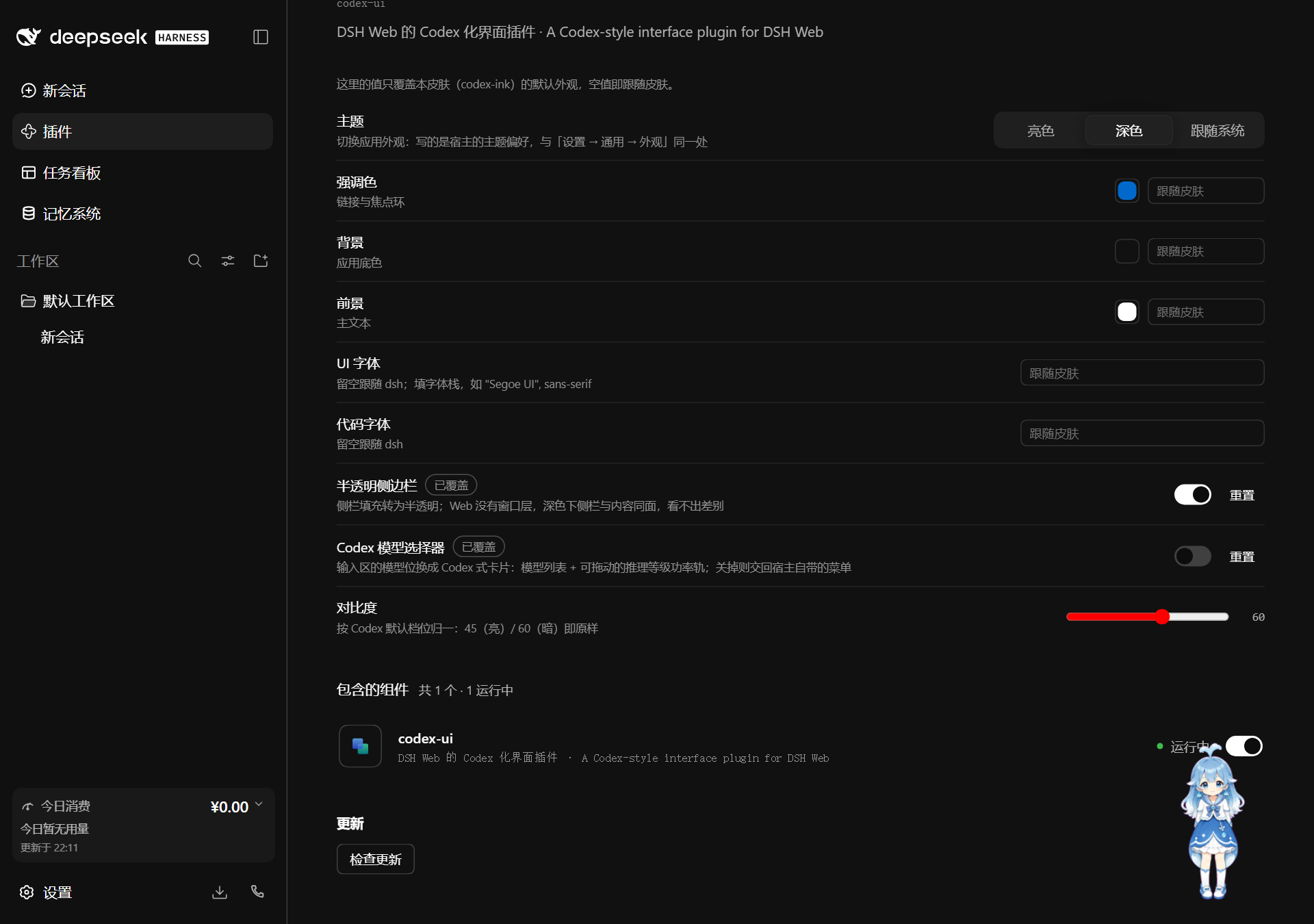

The same card in dark (after switching the theme the three colour rows edit the dark variant, and contrast shows the dark default, 60):

Row	Config field	Default	Lands on
Theme	— (writes the host ui-theme preference)	System	ctx.theme.setTheme(): switches the whole app, the same setting as Settings → General → Appearance
Accent	accentLight / accentDark	empty = follow skin	--dsw-alias-link, --dsw-codex-focus
Background	surfaceLight / surfaceDark	empty	--dsw-alias-bg-base
Foreground	inkLight / inkDark	empty	--dsw-alias-label-primary
UI font	fontUi	empty	--dsw-font-family
Code font	fontCode	empty	--ds-font-family-code
Translucent sidebar	translucentSidebar	off	sidebar fill and row fills become translucent
Codex model picker	modelPicker	on	the ⑳ face B component takes over the model seat; off removes every node of ours and the host menu (⑫ face A) comes straight back
Contrast	contrastLight / contrastDark	45 / 60	text tiers and the neutral alpha ladder

• The theme row is not card-local view state: it writes the host's ui-theme preference, the same setting as Settings → General → Appearance — the whole app switches and it survives a reload. The three colour rows below edit the variant currently in effect (active.colorScheme).
• It does not go through theme.setTheme(): that path publishes optimistically first and is then re-read from the settings document by adopt(), so on a slow round trip it draws new → old → new, which reads as "black → white → black". The card writes the preference into the theme plugin's own settings document instead (the same namespace ui-theme and field preference the service's internal host.set uses), leaving adopt() as the only publisher — one click, one publish. The control keeps a local pending value so it still feels immediate, and an unaccepted write falls back to the service entry point. That 0.8s round trip is not left empty: the browser half carries a local preview — the target theme is applied the moment you click (writing exactly the two things the host writes itself: body[data-ds-dark-theme] and the color-scheme on html), then handed back idempotently when theme/change arrives with the same result. If the confirmation does not arrive within 2.5s, the preview rolls back to the truth. Measured click → colour change: 824ms → 22ms (median), with the run sequence still two runs (light×n → dark×m) and no double publish.
• All 12 fields are .volatile(): the settings service only projects volatile fields, and that is exactly how the plugin manager knows the entry — no Config, no card.
• Empty means no override: at the defaults the override layer emits an empty string and data-codex-ui-theme never appears, so an untouched install's style layer is byte-for-byte 0.1.x (a repo check asserts this). The model picker is a structural component and does not go through the override layer: it is on by default and governed by the single modelPicker switch; switched off, the seat and the host menu are handed back completely.
• Overrides live in one runtime <style> whose selector carries one extra attribute (specificity +1), so sheet order does not matter and skins/*.css is never touched.
• Instant write, no save button; text inputs commit on Enter or blur and every write is read back to confirm it landed; overridden rows show a badge and a Reset control.
• The contrast slider is a documented simplification: the app lerps text towards ink in linear RGB and raises the ramp by a constant; here the text tiers are mixed in the same direction and the hairline/neutral-tone family is scaled (clamped to 0.5×–2×). Colored state and diff fills are excluded so the palette never leaks into the override layer.
• The translucent sidebar has no window layer to reveal on the web, and in dark the sidebar shares the surface colour, so it is invisible there — the switch therefore also turns the sidebar row fills translucent, otherwise it would be completely silent in dark. Recorded as a gap, not presented as an equivalent.
• The skin paints the canvas itself: html and body both carry this skin's base colour in either theme (html follows through :has(body[data-ds-dark-theme]), because the host stamps the theme marker on body only). Transitions are suppressed for the two frames after a theme change (html[data-codex-ui-switching] *, set by the browser half on ctx.on('theme/change')). Both prevent a flash: the first closes the "nobody painted the canvas this frame" hole that would reveal the host's default backdrop, the second stops the whole page from cross-fading.

Measurements

Window edges

assets/reference/codex-app-reference-1x.png (1901x1107, DPR 1):

Location	Scan	Value
Conversation window, left edge	y=600	x=340..355 ramps 238,241,247 to 231,233,239; x=356 is a single pixel 212,215,221
Conversation window, top edge	x=800	y=30..45 ramps 237,242,247 to 232,237,242; y=46 is a single pixel 214,218,224
Right panel, left edge	y=600	x=1437 is a single pixel 237,237,237, both sides pure white
Right panel, top edge	x=1700	y=46 is a single pixel 213,218,224 with the same ramp above

In both reference images the hairline is one device pixel, so the stylesheet uses 0.5 CSS px: at the 150% scaling of this machine, 1px rasterizes into two device pixels.

Target	box-shadow
Conversation window	0 0 0 0.5px var(--dsw-alias-border-l2), 0 0 24px rgba(13,13,13,.05)
Right panel	0 0 0 0.5px var(--dsw-alias-border-l1), 0 -12px 24px -12px rgba(13,13,13,.05)

Theme colors

Source: assets/reference/codex-theme-light.png and codex-theme-dark.png (the Codex color picker).

Role	Light	Dark	Token
Accent	#339CFF	#0169CC	--dsw-alias-link
Background	#FFFFFF	#111111	--dsw-alias-bg-base
Surface (what the composer sits on)	#FFFFFF	#181818	--dsw-composer-surface
Foreground	#1A1C1F	#FFFFFF	--dsw-alias-label-primary
Hover fill	#F2F2F3	rgba(255,255,255,.08)	--dsw-codex-hover-fill

The light values come from the color picker screenshot codex-theme-light.png. Since 0.5.6 the dark side is split across two sources: the window background comes from the theme picker (codex-theme-dark.png states 背景 #111111) and the surface from resources/app.asar's jdi.dark.surface #181818; foreground and accent still come from jdi (ink #ffffff, accent #339cff). 0.2.0~0.5.5 collapsed the two into #181818, which cut the composer card's step against the background from Codex's 18 levels to 12. The dark link stays on the app's text-link token #0169CC.

The dark ramp: window background #111111 → sidebar/surface #181818 → layer 1 #212121 → layer 2 #282828 → layer 3 #303030; the alpha family moved from rgba(252,252,252,·) to rgba(255,255,255,·) (the app's dark --alpha-base is #fff).

Sidebar colors

Source: the Codex app stylesheet, not a point sample. Codex has no sidebar color token. The left panel is a translucent scrim over the window base (app-shared-*.css, electron window, left panel whose appearance is not content-surface):

.app-shell-left-panel:not([data-app-shell-left-panel-appearance=content-surface]) {
  background: color-mix(in srgb, var(--color-surface-tertiary) 70%, transparent);
}

Light --color-surface-tertiary is --gray-75 = #F3F3F3; over a white base that composites to 0.7 x 243 + 0.3 x 255 = 246.6 -> #F6F6F6, which is the 246 a Codex capture reads. Because 30% stays transparent, the rendered value tracks whatever is behind the window: the previous #EEF4F9 was a reading taken over a blue backdrop, not the baseline.

Measured away from text, one capture per theme: light sidebar 246 / selected row 233 / content 255; dark sidebar 15 / selected row 31 / content 17. In both themes the sidebar sits one step below the content — 255 -> 246 light, 17 -> 15 dark — which is the hierarchy, and it is the only difference.

Token	Light	Dark	Derivation
--dsw-alias-bg-sidebar	#f6f6f6	#0f0f0f	Codex sidebar, measured on the same sampling line
--dsw-specific-sidebar-fill	#f6f6f6	#0f0f0f	same surface (also the app frame and titlebar strip)
--dsw-specific-sidebar-nav-item-active	#e9e9e9	#1f1f1f	Codex selected row, measured 233 / 31
--dsw-specific-sidebar-nav-item-hover	#f0f0f0	#171717	midpoint of base and active row

The dark surface (what cards sit on) stays #181818 — in Codex that is jdi.dark.surface, a different thing from the sidebar. The composer card over it measures 35, matching Codex.

Limits

• The two header slots have been released since 0.3.0 (⑬·3c), so the top bar can carry more entries than the reference screenshot shows: they only appear when the session really has subagents / background jobs / a preset / a working directory — and that is also the only visible surface for "a subagent is running". The trade-off is recorded in the changelog.
• Fixture checks are not signed-in screenshots. The dsh web launch token has a lifetime and lives in process memory only.
• In headless mode only the foreground tab handles :hover, so multi-page fixtures open the web-shape page last.
• Face B of the model seat (⑳) registers no slot: the host still renders conversation.input.model; the component appends its own trigger to the same seat and marks the seat data-codex-ui-seated, and one child rule hides the host's child (which stays in the React tree); removing the trigger removes the mark too and the host control is back at once. Data and commits go through the host's ctx.modelDirectories only. The three advanced states of the Codex power rail — the highlight when Fast is off, the Fast-mode tick fly-out, and the purple/blue gradient beyond the maximum level — are not built: DSH has no Fast mode and no "beyond maximum" state. The purple Max label on the trigger (--color-chart-purple) is skipped too: it is outside the color whitelist.
• ⑯ keeps the host tab strip: hiding it also removes the fullscreen and collapse buttons.
• The session row text column is 40px, 2px shorter than the workspace, new session and plugin rows, because the shipped Rows.module.css gives .sessionRow .title its own margin. Left as is.
• composer.css, patches.css, sidebar-align.css and sidebar-surface.css use hash-class suffix anchors ([class$=…], [class*=…]) where the host exposes no data-* (0.7.0 raw occurrences: composer 9 · patches 9 · sidebar-align 9 · sidebar-surface 2 · settings-modal 3). The 9 in sidebar-align are one anchor, _collapsed (the collapsed sidebar), replacing an ancestor-position :has(). model-picker.css has none.
• Selectors keep :has() out of ancestor positions: while the conversation streams nodes in, Chromium re-matches the whole subtree under every affected ancestor, which took style recalc from ~0.3s to over 4s. The remaining :has() are in subject position or look at direct children only; check.mjs holds model-picker.css at zero.

Codex source alignment

The Codex desktop app carries its webview CSS inside resources/app.asar (webview/assets/app-*.css); the public openai/codex repository holds the CLI and the TUI, not this interface. Values below come from app 26.727.4816.0.

Value	Codex	This skin
Motion	--transition-duration-basic: .15s, --transition-duration-relaxed: .3s	--dsw-motion-fast: 150ms, --dsw-motion-slow: 300ms
Easing	--ease-in-out and --default-transition-timing-function, both cubic-bezier(.4, 0, .2, 1)	--dsw-ease
Focus ring	--color-border-focus = --blue-300 #339cff; dark the same at 70%	--dsw-codex-focus
Pending spinner	--animate-spin: spin 1s linear infinite	codex-ui-spin 1s linear infinite
Hairline	--shadow-hairline: 0 0 0 .5px #0000001a	the window and panel hairlines use the same 0.5px ring
Light foreground	--color-text-foreground: #1a1c1f	--dsw-alias-label-primary
Chip fill	--background-button-secondary-hover, 8% of the foreground	light #f2f2f3 (measured), dark rgba(255,255,255,.08)
Composer chip radius	Fully rounded pill (per-pixel measurement of codex-composer-chip-hover.png: R = h/2 = 21px)	--dsw-radius-pill (declared explicitly since 0.5.0; before that it inherited the host's --dsw-radius-sm = 8px)
Power rail	_Track 24px / radius 12 / 10% foreground / inset 0 0 0 .5px var(--color-border); _Tick 4px with a 16px hit area; _Thumb 28px white disc / .5px --color-border-strong / 0 0 2px #0000001a	.codex-mp-track / -tick / -thumb, same values; --color-border → --dsw-codex-border (10% / 12%), --color-border-strong → --dsw-codex-border-strong (15% / 20%)
Power rail motion	.3s cubic-bezier(.23, 1, .32, 1), tick transform .12s, thumb 0s on the first frame and .3s after 16ms	same values (--codex-mp-*)
Picker popover	width calc(var(--spacing) * 63.5) = 254px; enter .32s cubic-bezier(.23,1,.32,1) 30ms, opacity 0 / scale(.98) → 1	same; placement follows the host place(): right-aligned, 8px above, 12px viewport margin
Font stacks	— (the host dsh-client-ui-theme base_css_default)	declared verbatim once in skin.css, so the look does not drift with the host version

Deliberate differences:

• The dark base moved to the app default in 0.2.0: jdi.dark.surface = #181818, jdi.dark.ink = #ffffff, ramp #212121 / #282828 / #303030 (the app's gray-800 / gray-750 / gray-700). The 0.1.x picker values #111111 / #FCFCFC are no longer used. For the record, the app CSS resolves the dark surface to --gray-900 #181818; picker and CSS disagree, and the picker wins here.
• The composer card radius is 25px as measured on assets/reference/codex-composer-reference.png. The app CSS gives --radius-3xl (20px) for the multi-line composer and 22px for the single-line one; the gap is the screenshot's device scale factor, which is not recorded.
• The sidebar is 280px wide, set by the host layout. Codex clamps its own sidebar with clamp(240px, 275px, min(520px, calc(100vw - 320px))).
• Dark link text keeps #0169cc, which the app uses for --color-token-text-link-foreground; dragging the accent control on the settings page is now the way to get #339CFF there. The app's own --color-text-accent is #99ceff (--blue-100) in dark.
• The contrast slider is a documented simplification (see "Settings page"), not the app's Rdi + zdi·contrast blend.
• For the record, the app's full gray ramp is #0d0d0d / #181818 / #212121 / #282828 / #303030 / #414141 / #4f4f4f / #5d5d5d / #afafaf / #ededed / #f3f3f3 / #f9f9f9 / #fff.

CI

.github/workflows/ci.yml runs scripts/check.mjs (which includes the artifact sync check) on Ubuntu and Windows, Node 22 and 24. Fixtures and live checks need a host and Chromium, so they stay local.

License

MIT.
