dsh-block-ptc

English | 中文

Blackboard blocks for PTC mode in DeepSeek Harness.

Version 0.2.0 supports ids on both tools. The legacy id parameter remains an alias for ids: [id].

A block is a blackboard region. Every program the model runs is tagged with block ids, and when the block's work is finished the model hands in a summary it writes itself — which then replaces that block's messages in the model's own context. The original messages stay in the append-only session log, so the human transcript keeps everything and replay stays deterministic.

• DeepSeek Harness 0.2.0-rc.2 or newer; no upper version bound
• Community plugin maintained by mengwEX
• Zero runtime dependencies — the only external import is node:crypto
• License: MIT

Table of contents

• Why
• Context and cache comparison
• How it works
• Install
• Quick start
• Reference
• Design notes
• Verification
• Troubleshooting
• Known limits
• Development
• License

Why

Automatic compaction condenses history when token pressure builds, and it decides what to condense by size. It has no idea that the last forty messages were one finished sub-task and the next ten are a new one.

This plugin lets the model draw that line itself: open a block, work inside it, and close it with a handover summary — so the context it keeps is the one it chose to keep. The model submits the summary inside its program call; the plugin does not run a separate summarizer model.

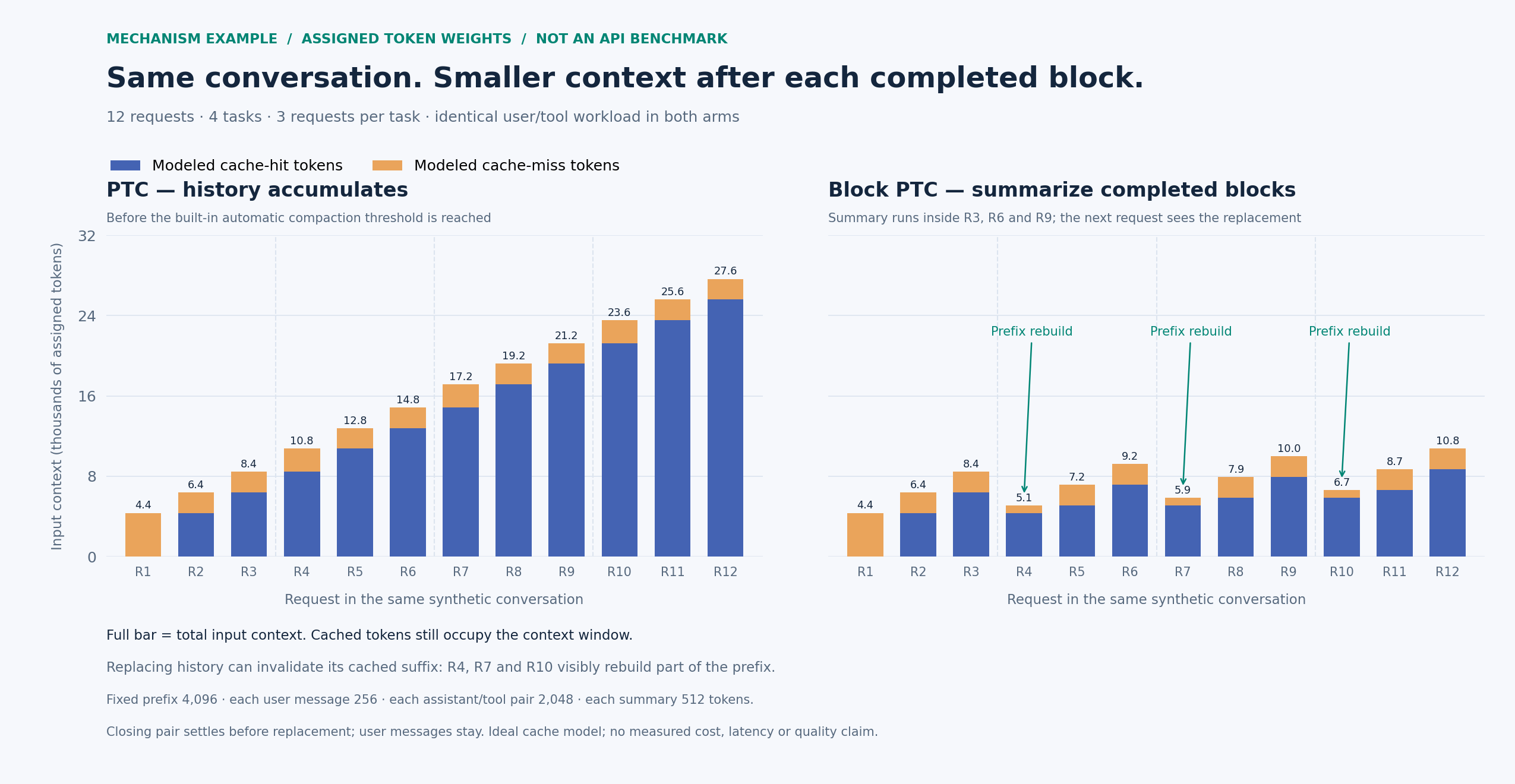

Context and cache comparison

Mechanism illustration, not an API benchmark. Both panels replay the same synthetic four-task workload with assigned token weights. Full bar = input context; blue = modeled cache hits, orange = modeled cache misses. Cached tokens still occupy the context window.

After a block closes, the next request carries a summary in place of its completed work. Replacing history can also invalidate the cached suffix: smaller context does not guarantee a higher cache-hit rate or a lower bill. The closing assistant/tool pair settles before replacement; original user messages remain. The baseline has not reached its automatic compaction threshold.

See the data, assumptions and reproduction steps. The plugin's tokensFreed is not a provider cache-hit measurement.

How it works

The model's whole surface is two callables:

block_run_code({ ids, description, code })     the only tool it may call directly
await tools.block_summary({ ids, summary })    callable from inside a program

1. block_run_code delegates its program to built-in PTC run_code. Its ids apply to the complete assistant message, including preceding thinking/text, and its tool results. Calls in the same assistant message contribute the union of their ids.
2. tools.block_summary({ ids, summary }) replaces the complete interval from the earliest to the latest occurrence of any target id with one summary.
3. The summary inherits the union of the interval's ids minus the target ids. It can participate in a later summary. A summary with no remaining ids stays.
4. If a tool pair in the interval is unfinished, the request is queued until its result lands. A protected system/developer message refuses the entire interval; no prefix is silently replaced.

A A B A C B  -- summary([A]) --> S[B] C B
S[B] C B    -- summary([B]) --> T[C]
T[C]        -- summary([C]) --> U[]
A A B A C B -- summary([A, B]) --> S[C]

What the human sees afterwards: the transcript still shows every original turn (the log is append-only); the model's next request shows the summary instead. In the Web UI the summary renders as a compaction checkpoint node.

Install

Requirements: DeepSeek Harness >=0.2.0-rc.2 and its bundled runtime, with Cordis >=4.0.4. Neither peer range has an upper version bound. The plugin is a profile bundle: installing it adds one row to dsh.profile.bundles and one new agent preset, block-ptc. It does not modify the shipped ptc preset.

The version ranges allow newer hosts to load the plugin; they are not a record of completed compatibility checks. Earlier live verification used DSH 0.2.0-rc.2; the current browser changes and newer hosts still await live acceptance. DSH's plugin loader includes prereleases when evaluating its peer ranges. The plugin checks the required tool/prompt methods before mounting and the session methods before summarizing, and reports missing capabilities. Method presence does not verify event semantics, preset configuration or browser rendering; these still need validation when the host changes.

From npm (recommended)

Find dsh-block-ptc in the Harness Plugin Manager and install it, or ask an agent with the Plugin Manager tool enabled to install the bundle:

plugin_manager  install_bundle  dsh-block-ptc

The package is published on npm. Restart the application after installation and select the Block PTC preset.

From a local checkout

git clone https://github.com/mengwEX/dsh-block-ptc.git

Install the absolute checkout path through the Plugin Manager:

plugin_manager  install_bundle  /absolute/path/to/dsh-block-ptc

Both methods use pnpm in the target profile. The local form installs a link: dependency for development. Versioned source archives are also available under GitHub Releases.

Manual install (equivalent, if you prefer files)

In ~/.dsh/profiles/<profile>/package.json:

{
  "dependencies": { "dsh-block-ptc": "link:/absolute/path/to/dsh-block-ptc" },
  "dsh": { "profile": { "bundles": ["@deepseek-ai/dsh-base", "@deepseek-ai/dsh-web-app", "dsh-block-ptc"] } }
}

then run pnpm in that directory.

After installing

1. The preset appears in the session preset picker as Block PTC.
2. Restart the application once. The loader keeps a plugin module per resolved URL, and installing a bundle changes the composition; a running host keeps the old module generation until it restarts.
3. Start a session with the Block PTC preset.

Uninstall

plugin_manager  remove_bundle  dsh-block-ptc

then restart. plugin_manager set_bundle dsh-block-ptc enabled=false disables it without removing the package.

Quick start

Say what you want done, then let it close the block when it finishes:

Read the parser module, explain how the tokenizer works, then close the block and continue with the lexer.

You should see:

• the model calling block_run_code for everything it runs;
• a closing call to block_summary whose return value is {"replaced": 3, "tokensFreed": 346} — how many messages were replaced and the estimated token count of the replaced messages (before counting the new summary);
• a <block-summary>…</block-summary> node sitting where those messages were.

If a tool call is refused with "In block mode only block_run_code may be called directly", that is the preset's guard working: in this mode every other tool is reached from inside a program, exactly like PTC mode.

Reference

Choose blocks for cohesive, loosely coupled units with a clear subgoal and completion point. Keep related investigation, implementation and verification together. Split a large task by separable subgoals, rather than assigning the whole task to one block or creating a block for every tool call. A small task may fit in one block. Close each unit when complete, then continue with the remaining work without waiting for the whole task to finish.

Tool block_run_code

Parameter	Type	Required	Meaning
ids	string[]	yes*	Non-empty, unique block ids for this work, such as ["auth-refactor"].
id	string	no	Legacy alias for ids: [id]. Supply either form, not both.
description	string	yes	One line stating the goal of this work, displayed in the tool row.
code	string	yes	Program body; top-level await and return are available and return becomes the result.
timeoutMs	number	no	Elapsed execution budget for this program.

*ids is required unless the legacy id is supplied.

Returns the run_code result verbatim: { logs, result?, sandbox? }, rendered exactly as PTC mode renders it. The browser half registers the call into DSH's keyed Tool view slot and draws the same code row the built-in gives run_code — the Code title, [<block ids>] <goal> as the summary, and the program plus its output behind the row — with every bash/read/write card the program dispatches nested inside it.

Callable tools.block_summary

Parameter	Type	Required	Meaning
ids	string[]	yes*	Block ids to summarize and close.
id	string	no	Legacy alias for ids: [id]. Supply either form, not both.
summary	string	yes	Written by the model. Summarize the complete first-to-last interval for these ids. Preserve intervening user requirements, corrections and constraints. State the goal, completed work and results, unfinished work, and next step; if only reporting to the user remains, say so. Retain necessary details as appropriate.

*ids is required unless the legacy id is supplied.

The replacement text identifies itself as your summary of earlier work and is wrapped in <block-summary>…</block-summary>. It includes a Block ids line only when memberships remain. Empty ids stay in internal metadata. This format is separate from DSH automatic compaction; both can coexist.

On immediate completion, returns { replaced, tokensFreed, ids? }; ids, when non-empty, are the memberships inherited by the summary. tokensFreed is the estimated size of the replaced messages, before the new summary's cost.

If tool results or another compaction are still pending, returns { replaced: 0, tokensFreed: 0, pending: true, requestSeq, note }. This acknowledges queuing, not a completed replacement. The logged successful tool outcome lets the plugin resume the request after restart/fork. Deferred failures are logged; target memberships remain until a replacement commits. Missing target ids and protected messages reject the whole request without removing any memberships.

Preset block-ptc

The shipped ptc preset plus:

• tool-presentation.mode: both — under ptc presentation the reserved run_code transport is the only directly callable tool, a check that is hard-coded in dsh-tools, so a plugin tool could never be reached. both keeps the generated tools SDK and the native schemas;
• this plugin's row, which registers the two callables and a guard: a model-direct call (no parent token) may only name block_run_code, while nested calls from inside a program are unrestricted.

Design notes

Why delegate instead of reimplementing the transport. block_run_code hands the program to the built-in run_code through ctx.tools.execute({ …, parent: exec.token }). "Identical to PTC mode" is then true by construction rather than by careful copying.

Why the nested transport keeps the outer call id. The PTC bridge parents every program sub-call at the id of the call that is executing it (parentCallId: exec.callId), and the conversation UI can only attach a sub-call to a call node it can see in the transcript. Giving the nested run_code a synthetic id such as <callId>:blk:1 therefore named a parent that no node renders: the whole sub-call tree was projected away and the block card showed a bare tool row. Reusing the outer id reproduces PTC mode's topology exactly — rootCallId = parentCallId = <callId>, program sub-calls <callId>:ptc:<n> — so the bash/read/write cards a program dispatches render inside the block row just as they do in PTC mode.

Why the package ships a browser half. DSH maps a wire tool name to its row inside @deepseek-ai/dsh-client-ui-tool, which knows run_code and nothing else; a Host-only tool therefore lands on the generic "Tool call" row. The registered keyed view (tool.call.toolview, key block_run_code) is the only supported way to give the call PTC's row. Its markup, CSS and icons are copies of the host row renamed under a dbp- prefix, because the client-plugin rules forbid importing Harness client packages as modules; --dsw-alias-* theme tokens are the only shared styling dependency.

Why the bundle patch also mounts a host-level anchor row. DSH serves a package's client module only for packages that appear as host Loader entries (dsh-client-modules scans ctx.loader.entries()), and this plugin's functional row lives inside the block-ptc preset, which is a separate tree. The anchor row (config.anchor: true) exists so the package is a host entry; it registers nothing, because a host-level guard would deny direct tool calls in every other preset.

Why the compaction vocabulary. A message can only disappear from the model's context through DSH's own surface-replacement mechanism, and a replacement must carry the events DSH expects around it:

compaction/start        takes the durable compaction lock
compaction/summary      states the token price of the exact replaced range
user/message            the replacement itself (surfaceOp: replace, compact-checkpoint source)
compaction/end          releases the lock

These are DSH's own session event types (@deepseek-ai/dsh-compaction, @deepseek-ai/dsh-session), not names invented here; a plugin cannot define new event types without making the session log unreadable. The built-in compaction engine is never invoked and no summarization call is made — the summary is the model's own text, and these four events are only the bookkeeping DSH requires for the replacement. Every failure makes exactly one close attempt, so a failed summary can never leave the durable lock behind.

What is preserved. System and developer messages are never replaced; an interval containing them is refused. User follow-ups and tool notices inside the interval are summarized with the work. The summary must preserve added requirements, corrections and constraints. Messages outside the interval stay. A user message arriving after the model wrote the summary is not discarded: the old summary is refused and must be updated after reading the new message. Unfinished tool pairs delay the complete replacement.

Where the state lives. tool/call arguments assign message memberships. Committed summary checkpoints carry the remaining ids, closed ids and request sequence in source.blockPtc. A summary attempt alone closes nothing. Successful queued outcomes are replayable; a session/event observer schedules completion outside the append boundary. No second persistence store is used.

Why the plugin has no external imports. Profile bundles can be installed as symlinks; a plugin that imports @deepseek-ai/dsh-* by bare specifier can fail to resolve depending on how the host links it. Its only external import is node:crypto; membership helpers use a bundled relative module.

Verification

npm run check          # syntax + both tests
node tests/logic.test.mjs
node tests/client.test.mjs

The ids implementation passes these offline tests and append/replay checks using DSH 0.2.0-rc.2's real Session. To repeat the optional native check, run tests/native-session.mjs with the installed dsh-session/lib/index.js path as its argument. An ASAR installation requires the desktop executable in ELECTRON_RUN_AS_NODE=1 mode. This does not run a model or validate the live UI.

The logic test drives the real plugin entry with a fake context and fake sessions: tool registration, the guard, the nested run_code dispatch, the whole compaction transaction, the failure path that still releases the lock, and the discovery anchor that must register nothing. The client test loads client/client.js through a stubbed browser module table and renders the row for every lifecycle shape — preparation, a dispatched program, a settled result, a failure, an interruption, and a malformed argument payload — because a keyed view that throws blanks its slot entry.

Live verification of the row (the browser half is not covered by the unit tests):

1. Install this checkout as a bundle. The desktop profile is managed by the desktop app, so use its Plugin Manager with the absolute directory — plugin_manager install_bundle /absolute/path/to/dsh-block-ptc — or the plugin page's "package name or address" field, which accepts an absolute local path.
2. Restart the application: the Loader caches resolved modules and the client module scan runs at boot.
3. Open a new Block PTC session and run any program. The block_run_code call should render as PTC's own code row, with the program's sub-calls nested inside it.

Known cosmetic difference from the built-in row: the running row has no shimmer sweep, and a DSH row redesign has to be copied here again.

The original development notes record the following live desktop-profile validation on 0.2.0-rc.2 with the Block PTC preset. These are historical observations, not an end-to-end test run by this repository's CI:

Step	Observed
Direct catalog	block_run_code plus the SDK, which also exposes block_summary
Program run	block_run_code({ id, description, code }) returns the run_code result unchanged
Closing	compaction/start(55) → compaction/summary(56) → user/message(57) → compaction/end(58), no error
Replacement	{op: 'replace', startSeq: 19, endSeq: 33}, sources [55, 56, 19, 29, 33]
Result	{"replaced": 3, "tokensFreed": 346}
Surface afterwards	node 0 is still the system prompt, every user message kept, the summary at the replaced position

The same transaction was replayed offline through the runtime's own SurfaceManager validator against that session's real log and was accepted.

Troubleshooting

Symptom	Cause and fix
The preset is missing from the picker	The bundle is not in dsh.profile.bundles, or the host has not recomposed. Check plugin_manager list_bundles, then restart.
The preset shows as broken / "dsh-block-ptc: never started"	The plugin module failed to import (usually a package-resolution problem for a linked checkout). Fix the layout, then restart.
No block_run_code in a session	The session is not running the block-ptc preset, or the app has not been restarted since installing.
New summaries still use [block-summary ids=[]]	The host is running an old module generation. Update the bundle and fully quit/reopen DSH. Existing historical summaries keep their original text.
Edits to the plugin do not take effect	Modules are cached per URL and module watching is off by default: restart the app.
A block never gets compressed	It was never closed with block_summary, so its content stays until automatic compaction folds it into a generic summary.
Compaction stops working in a session	A compaction/start without a matching compaction/end is the durable lock. This plugin closes its own bracket on every failure; if you hit it from an older build, start a fresh session.

Known limits

• One summary replaces one complete contiguous first-to-last interval. A protected system/developer message rejects that interval; it is not skipped and no prefix is treated as a completed summary.
• Summaries are lossy: necessary information must be included in their text.
• Checkpoints inherit remaining ids and may be summarized again. A checkpoint with empty ids is retained as the completed result.
• Existing id calls are supported. Already compacted legacy history has no recoverable ids ownership metadata; it is not retroactively retagged.
• Blocks are per session. Sub-agents run their own context and their own blocks.
• Peer dependencies declare minimum versions without an upper bound. Newer hosts are allowed, but compatible event semantics, preset configuration and browser APIs still need verification.

Development

.
├── lib/plugin.js        host tools, deferred requests and transactions
├── lib/blocks.js        message memberships and interval planning
├── cordis.patch.yml     the bundle patch: one new preset, `block-ptc`
├── locale/{en,zh}.json  display metadata read by the Harness UI
├── tests/logic.test.mjs the logic and transaction tests
├── RELEASING.md         release and hand-over checklist
└── package.json         bundle manifest (`dsh.bundle.patch`)

Run the tests with any Node 22+ (no install step, no dependencies):

node tests/logic.test.mjs

Releasing to npm

See RELEASING.md for GitHub release and npm publication steps. The package name is dsh-block-ptc; the bundle patch resolves that same name.

Contributing and support

Join the official community discussion for feedback on block boundaries and context/cache tradeoffs.

Read CONTRIBUTING.md, report bugs through GitHub Issues, and follow SECURITY.md for private vulnerability reports.

License

MIT — see LICENSE. The preset adapts DeepSeek Harness configuration; see third-party notices for upstream attribution.
