What this is, and why

A model can describe a comparison, but a wall of Markdown makes the reader do the layout work. This plugin gives the model a small declarative language for the cases where structure carries the answer: side-by-side options, an object you want to inspect, a number the reader will change.

The renderer is a real React tree behind a strict schema. There is no generated HTML, no eval, no shell access, and no page-level JavaScript from the model. Local controls recompute in the browser; the model is only called again when the reader explicitly asks.

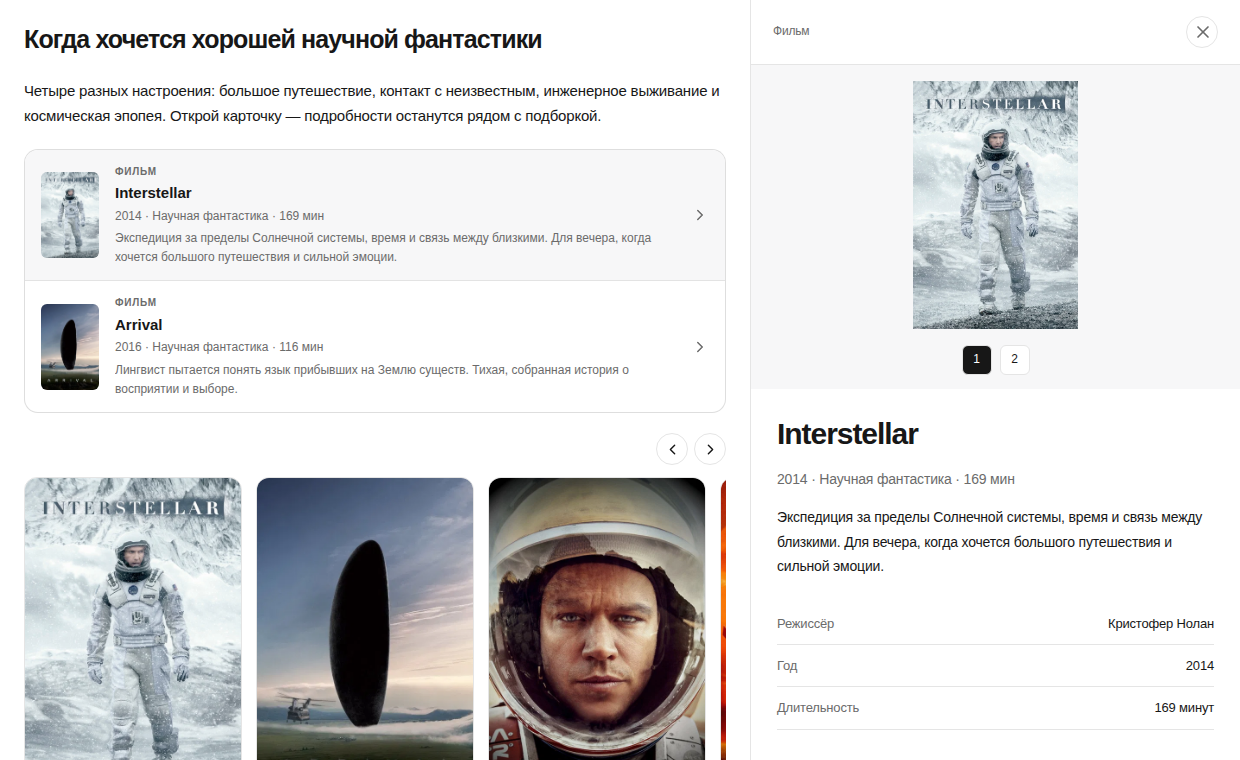

The detail panel opens beside the collection and the answer reflows around it.

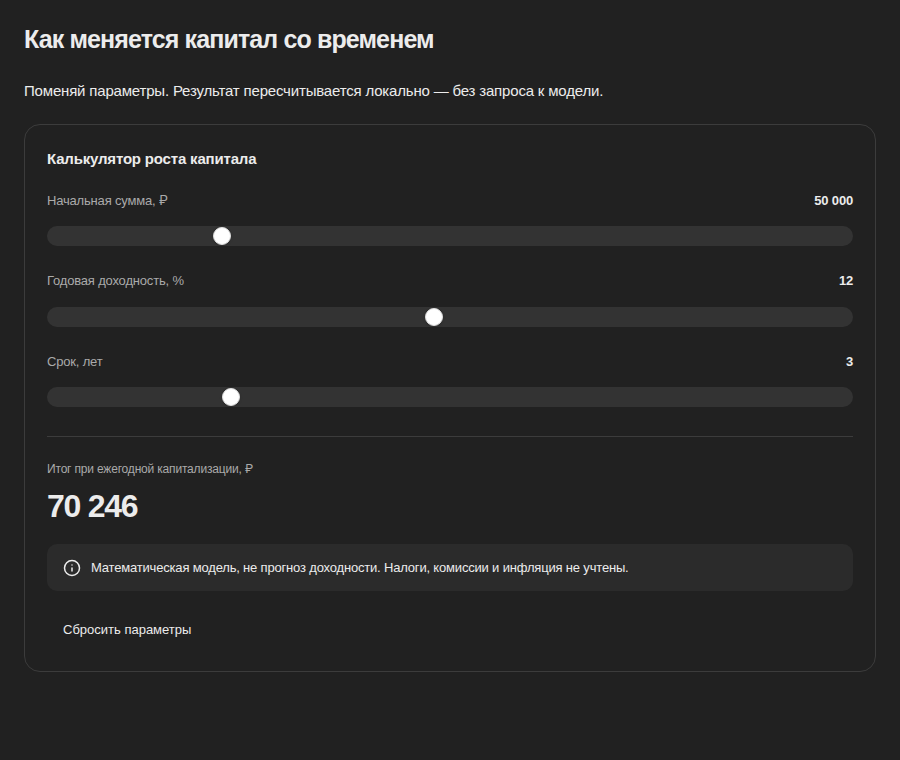

Sliders recompute the number in the browser; the model is not called again.

Install

Requires DeepSeek Harness 0.2.x and Node 22.19+. No NixOS change, no patched Harness.

dsh plugin --profile web add github:kyoukisu/dsh-rich-ui
systemctl --user restart deepseek-harness   # or restart however your Harness runs

From a checkout — this is the loop the author uses:

git clone https://github.com/kyoukisu/dsh-rich-ui && cd dsh-rich-ui
npm ci && npm run build:plugin
dsh plugin --profile web add link:$PWD

The plugin registers itself as a bundle; the fence language is rich-ui.

Quick start

Ask for something that benefits from structure, in a new session:

Compare three electric kettles by price, volume and features. Make it clickable.

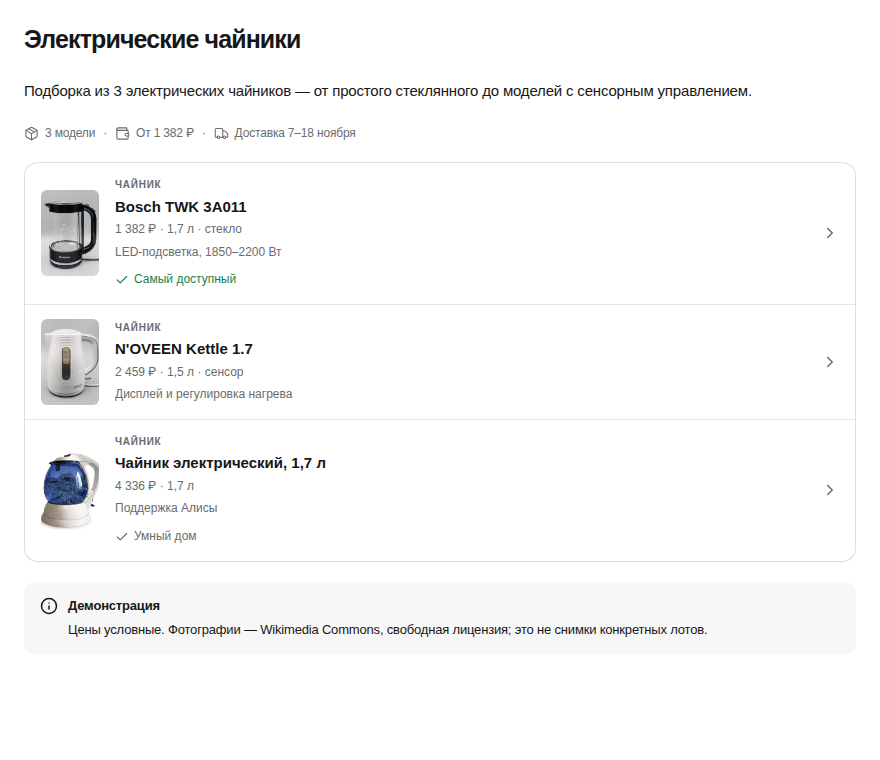

The reply arrives as an interface: a summary strip, rows with photos, and a green highlight on the cheapest option. Opening a row shows facts, sources and related items without leaving the conversation.

Things worth trying: "build a budget calculator with three sliders", "show this quarter as a chart and a table", "make a configurator with tabs and conditional warnings".

What it can render

Group	Nodes
Layout	stack, row, grid, card, divider, meta
Text	text with inline code and bold, callout with optional title, code
Objects	entity-ref, entity-list, detail panel with gallery, facts, sources, related entities
Data	table, chart (bar / line / donut), computed
Media	image, image-group, gallery lightbox, popover, tooltip
Controls	input (text / number / date), select, slider, switch, checkbox, radio, segmented, tabs
Logic	expressions (add, mul, round, comparisons…), conditional, local actions, send-message

Icons are a curated Lucide subset with semantic tones (success, warning, danger, muted) so colour means something. Light and dark themes follow the host palette and font.

The contract in ten lines

```rich-ui
{"version":1,"title":"Budget","initialState":{"spend":1200},
 "nodes":[
  {"type":"slider","stateKey":"spend","label":"Monthly spend, €","min":100,"max":5000,"step":100},
  {"type":"computed","label":"Per year, €","expr":{"op":"mul","args":[{"state":"spend"},12]}},
  {"type":"callout","tone":"info","content":"Recomputed locally — no model call."}
 ]}
```

Entities, tables, charts and actions — one complete document

{"version":1,"title":"Кино на вечер",
 "entities":[{"id":"a","kind":"Фильм","title":"Arrival","subtitle":"2016 · фантастика",
   "image":"https://example.org/poster.jpg",
   "facts":[{"label":"Режиссёр","value":"Дени Вильнёв"}],
   "sources":[{"title":"TMDB","url":"https://www.themoviedb.org/movie/329865-arrival"}],
   "badge":{"label":"Выбор редакции","tone":"success"}}],
 "nodes":[
  {"type":"meta","items":[{"icon":"film","text":"3 фильма"},{"icon":"clock","text":"2 часа"}]},
  {"type":"entity-list","entityIds":["a"]},
  {"type":"table","columns":[{"key":"k","label":"Что"},{"key":"v","label":"Сколько"}],
   "rows":[{"k":"Сеансов","v":3}]},
  {"type":"chart","kind":"bar","data":[{"label":"Пн","value":2},{"label":"Вт","value":5}]}]}

The authoritative text is prompt-rich-ui/prompt.md; exact fields, enums and budgets live in references/schema.md, and working documents in references/examples.md.

How it works

flowchart LR
  A["Model writes a rich-ui fence"] --> B["Adapter finds the code block"]
  B --> C{Strict JSON schema}
  C -- invalid --> D["Stays a normal code block"]
  C -- valid --> E["React renderer mounts"]
  E --> F["Local state, no model call"]
  F -- explicit button --> G["rich-ui action message"]

• Node half registers one always-on system-prompt section with the whole contract and the absolute path of the reference files. No skill, no tool call: the model can answer on the first attempt, and opens references only after a rejected block.
• Browser half validates the fence and mounts into a plugin-owned root. While the model is still writing, closed nodes render in an inert preview and become interactive when the block settles.
• Malformed documents are never repaired: they stay visible as code, which is also how you can tell the model got a field wrong.

Safety

Risk	Mitigation
Arbitrary code execution	Declarative JSON only; no HTML, CSS, JS, eval or property paths
Prompt-injected actions	Local actions cannot call tools; send-message needs an explicit click and is delivered as ordinary user text
Secrets in the UI	Password/secret state keys are rejected; no secret input components exist
Hostile URLs	http(s) only, credentials in URLs rejected
Resource exhaustion	Bounded depth, node count, string size and expression budget
Stored data	Persistence is opt-in, per session, and never stores text or date inputs

Parity with the reference

Measured, not claimed: 12 of 21 reference scenarios reproduced, 3 partial, 6 missing — with an itemised deviation list in docs/PARITY.md. Missing today: sortable tables, code highlighting, math, maps, persistent panels, and a detail drawer that reflows the conversation column instead of overlaying it.

Known limitation: the fence label is not preserved by Harness, so an unlabelled block is claimed only when its payload looks like a spec document and passes the strict parser. A json-labelled block is never claimed.

Troubleshooting

The block stayed as code. The JSON did not pass the schema — usually an unknown field (title inside a node that has none, or items from another plugin's syntax). Ask the model to resend the whole block; nothing was silently changed.

Images show a placeholder. The URL is wrong, blocked by the remote host, or not http(s). Ozon/WB CDNs reject hotlinks; use a permitted source or your own media host.

Old dsh-ui messages stopped rendering. That is a different plugin's syntax. This one claims rich-ui only.

Development

npm ci
npm run dev            # lab at http://127.0.0.1:4173, HMR, no Harness needed
npm run build          # typecheck + lab build
npm run build:plugin   # the two real bundle artifacts
npm test               # 101 unit and DOM tests
npm run test:browser   # Playwright desktop + mobile (goldens never auto-update)

Browser tests run in a pinned container so no system libraries are required:

docker run --rm --network host --ipc host --user "$(id -u):$(id -g)" \
  -e HOME=/tmp -v "$PWD:/work" -w /work \
  mcr.microsoft.com/playwright:v1.64.1-noble npx playwright test

Scenarios in the lab: ?demo=films, listing, calculator, configurator, technical, primitives, plus &theme=dark.

Screenshots in this README are captures of that lab, not mockups. Golden images under tests/ are regression baselines and say nothing about fidelity to another product.

License

MIT — see LICENSE. Demo photography comes from Wikimedia Commons under free licences; prices and metadata are illustrative. DeepSeek Harness is a separate project by DeepSeek; this plugin is unaffiliated.
