dsh-3d-preview

STL / 3MF model preview inside the dsh-better-sidebar file tree — with slicer plates and per-object filament colours.

Click a .stl or .3mf in the sidebar's file explorer and orbit, zoom, switch plates and see the colours your slicer assigned — without leaving the conversation.

中文说明

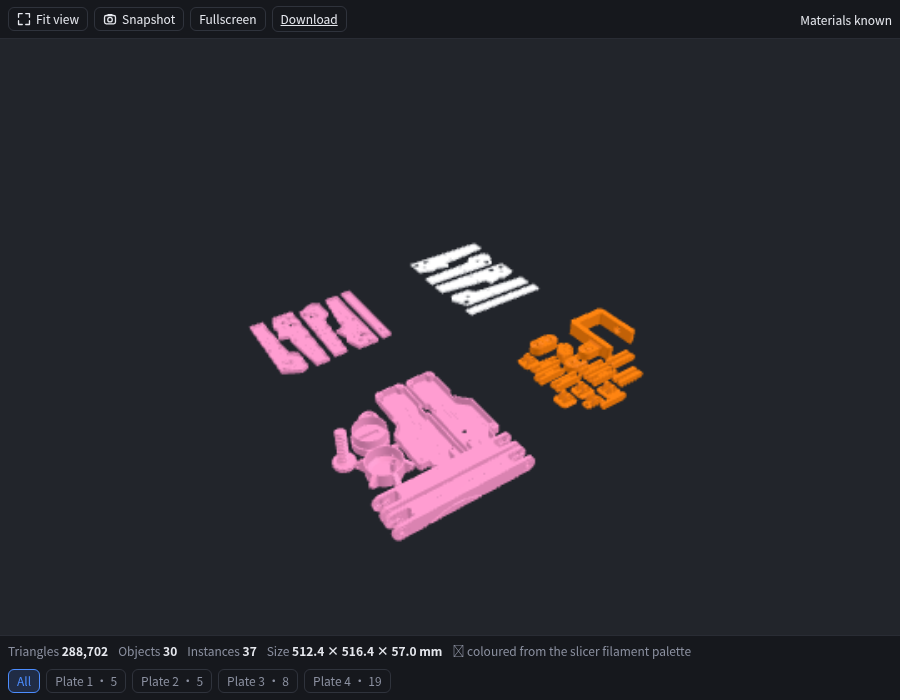

A real Bambu Studio project: 4 plates / 30 objects / 37 instances / 288,702 triangles. The pink and orange come from filament_colour in Metadata/project_settings.config.

---

What it does

Formats	.stl, .3mf
3MF coverage	Core spec, the Production Extension (external 3D/Objects/*.model parts), basematerials / colorgroup, and Bambu/Orca paint_color facet paint
Slicer extras	Plate detection + a plate selector; per-object filament colours from Metadata/project_settings.config + Metadata/model_settings.config
Controls	drag to orbit · wheel to zoom · right-drag to pan · Fit view · Snapshot (PNG) · Fullscreen
Footer	triangles · objects · instances · bounding-box size in mm · material confidence · plate chips
Failure modes	progress overlay with real stage counts; a retry + download overlay when parsing or WebGL fails

Nothing is invented. When a file carries no material information the model renders in a neutral grey and the footer says Materials unavailable — the same honesty contract the underlying renderer uses.

Why this plugin carries extra code

Rendering is delegated to @chestnutlabs/gcode-model-renderer (MIT, three-based, no DOM dependency, runs in a worker). It parses both formats, derives plates and instancing, and reports progress — this plugin adds three things on top:

1. The slicer colour id-join. A Bambu/Orca project declares colours in three places, and the extruder table is keyed by the core 3MF object id while the mesh lives in an external part addressed by a different id (p:path / objectid). The renderer looks the extruder up with the external part id, so every object misses and a four-filament project renders grey (measured: 0 hits out of 37 placements). src/client/bambu-colors.ts redoes the join from the zip itself — no fork, no patched dependency — and the same file then colours 30/30 objects.
2. The chrome. Progress, retry, plate chips, stats, snapshot, fullscreen.
3. The plumbing. Bytes come from better-sidebar's own /sidebar/file media route, so this plugin contributes no host route at all.

Install

Needs Node 20+ and a DSH profile with dsh-better-sidebar installed.

# prebuilt tarball from the latest release — seconds, no build step
dsh plugin --profile web add https://github.com/kmyqchy/dsh-3d-preview/releases/latest/download/dsh-3d-preview.tgz

# or straight from this repo — lib/ is committed, so this needs no build either
dsh plugin --profile web add github:kmyqchy/dsh-3d-preview

Then restart dsh web: profile bundles are composed at boot, so a freshly added plugin is not served until the next start. After the restart, lib/client.js is available at /plugins/dsh-3d-preview/client.js.

From a local checkout (for development)

git clone https://github.com/kmyqchy/dsh-3d-preview.git && cd dsh-3d-preview
npm install --ignore-scripts     # see note below
npm run build
dsh plugin --profile web add link:$PWD

--ignore-scripts skips native build steps of transitive dev dependencies (dsh-better-sidebar pulls node-pty, which we only need for its type declarations). If you never run npm run typecheck, you can drop dsh-better-sidebar from devDependencies entirely.

Not published to npm yet — see Releasing.

Verified against

File	Result
Bambu Studio project *.3mf, 4.42 MB	30 objects / 37 instances / 288,702 triangles / 4 plates (5+5+8+19) / pink-orange palette applied / Materials known
PrusaSlicer-exported *.stl, 864 KB	1 object / 17,686 triangles / 13.7 × 12.4 × 63.0 mm

Also checked: tsc --noEmit clean; the descriptor registers correctly under the real window.__ModuleLoader__ contract (id / exts / fetchStrategy / title / icon); no extension conflict with the built-in viewers (image / pdf / markdown / html / code, plus binary-download, whose priority −50 sits below this viewer's 0).

Adding this viewer to an existing sidebar

Everything is a registry, so a viewer can also be registered from your own plugin:

import type { Context } from '@deepseek-ai/dsh-client-runtime/client'

export const inject = ['betterSidebar']

export function apply(ctx: Context) {
  ctx.effect(() => ctx.betterSidebar.registerFileViewer({
    id: 'my:model3d',
    exts: ['stl', '3mf'],
    fetchStrategy: 'mediaUrl',
    component: Model3DView,
  }))
}

Limits and out of scope

• 20 MB. The /sidebar/file media route caps responses at dsh-better-sidebar.mediaLimit (default 20 MB) and serves whole files without Accept-Ranges. Files above it show a clear error with a Download link rather than a broken canvas. The largest file this plugin was measured against is a 4.42 MB slicer project.
• No glTF / STEP / OBJ / PLY. The engine ships STL and 3MF loaders only. Its loader registry is open (loaders: [...]), so adding one is a self-contained change.
• No wireframe / section plane / measurement. The renderer exposes framing, plate scoping and capture, and nothing else.
• Orbit / zoom / pan only — the preset API currently implements the isometric view, so there is no front/side/top button row.
• No file-watch reload. Bytes are fetched over HTTP, so the viewer does not see mtime changes; re-open the tab after re-exporting.
• Bambu plate thumbnails (Metadata/plate_N.png) are not shown — the plugin renders geometry, not the slicer's rendered preview images.
• UI language follows navigator.language: Chinese for zh*, English otherwise. There is no in-app switcher.

Development

npm run build      # esbuild: lib/index.js (host) + lib/client.js (browser bundle)
npm run watch      # rebuild on change
npm run typecheck  # tsc --noEmit
npm test           # node --test: the colour id-join regression suite

npm test needs no browser: it builds a minimal Production-Extension project in memory and asserts that colours land on the right objects. It runs TypeScript sources directly through Node's type stripping, so it wants Node 22.6+; the shipped artifact is plain ES2020 ESM and runs on Node 20+.

Bundle shape

lib/client.js is one lazy-CJS closure registered on window.__ModuleLoader__:

window.__ModuleLoader__.load({ id: 'dsh-3d-preview', factory: (require) => { /* … */ return module.exports } })

react and react/jsx-runtime resolve through the shell's frozen module table; everything else is inlined, including three. Code splitting is off — the factory's require can only reach module-table entries, so a relative chunk URL could never be fetched. Expect ≈ 560 KB raw (≈ 150 KB gzip); it is fetched lazily, only when a model file is opened.

Because the artifact is self-contained, this package declares no runtime dependencies — three, the model renderer and fflate are build-time only, which is why installing it costs nothing at the registry.

Releasing

The release workflow builds, tests, packs and attaches dsh-3d-preview.tgz to a GitHub Release whenever a v* tag is pushed:

npm version patch --no-git-tag-version   # bump package.json + CHANGELOG.md
git commit -am "release: v0.1.1"
git tag v0.1.1 && git push --follow-tags

The asset name is deliberately version-free, so the releases/latest/download/dsh-3d-preview.tgz URL above keeps working across releases. Keep that name when adding release assets by hand.

Publishing to npm is not set up; if it ever is, the tarball route stays valid.

Compatibility

Built and verified against dsh-better-sidebar 0.19.x and @chestnutlabs/gcode-model-renderer 0.20.x with three 0.178 (pinned — the engine's peer range is a 0.x caret).

License

MIT. three (MIT) and @chestnutlabs/gcode-model-renderer (MIT) are bundled into the client artifact; see their repositories for their notices.
