dsh-3d-plugin-graph

A live 3D visualization of the DSH plugin ecosystem. Every node, edge and state you see is the real Cordis runtime — nothing is mocked.

简体中文 README

What is it?

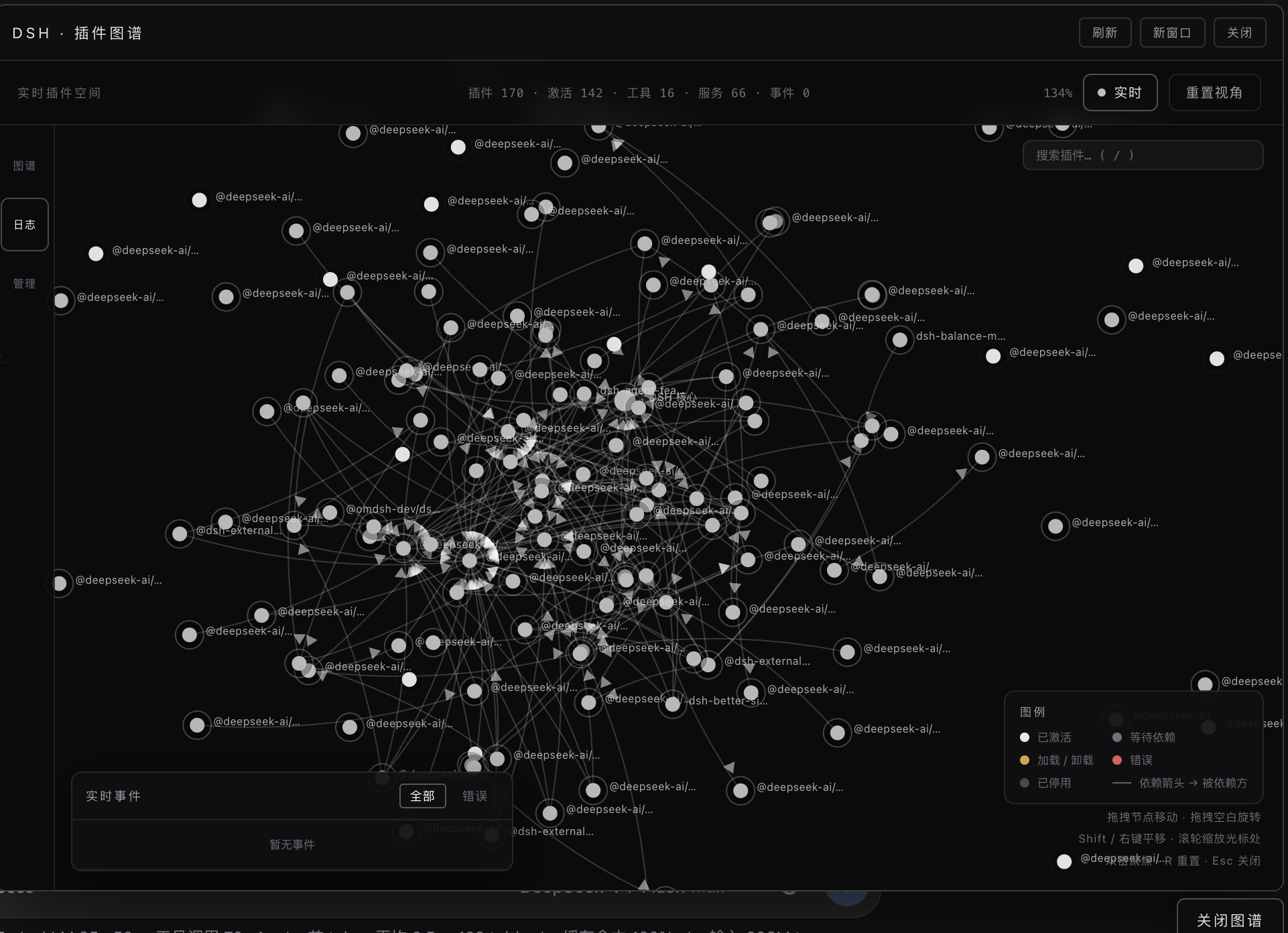

DSH (DeepSeek Harness) is itself an ecosystem of 170+ Cordis plugins. This plugin opens a window into that ecosystem: it reads the running Cordis runtime and renders the live plugin topology as an interactive 3D graph you can orbit, zoom, drag and operate.

• Nodes are real runtime plugins (loader entries / registry fibers).
• Edges are real dependency relations (service providers from the reflect store × inject declarations on each fiber; the arrow points at the dependency).
• States are the real fiber state machine (active / pending / loading / error / disabled / unloading), refreshed every 2 s — drag a node around and watch its neighbours follow; unplug a plugin from the graph itself and see the whole neighbourhood react.
• Activity streams from real tools/result events — when a tool runs, white light motes travel along the affected edges in real time.

Features

Real runtime data

• Nodes / edges / services / tool surface all come from the live runtime (ctx.loader.entries(), ctx.reflect.store, ctx.tools.schemas(), tools/result events); the UI merges state polls without ever moving your dragged nodes.
• Graceful degradation: with no reachable source it falls back to an offline demo so the UI is never a blank page.

Interaction

• Orbit / pan / zoom: drag empty space to orbit (bounded pitch), Shift / right-drag to pan, wheel to zoom anchored at the node under the cursor (it stays glued to the cursor), double-click a node to focus, R to reset, Esc to close.
• Node dragging with physics: nodes are solid bodies — dragging one pushes others out of the way (velocity-impulse collision), and spring edges pull connected nodes along. Release and the graph settles back into balance.
• Label LOD: far away only the core label shows; labels fade in as you zoom; occluded labels hide automatically (8px type, occlusion-aware).

Operations & safety

• Unplug requires double confirmation: arming it shows the cascade impact count, the list of affected dependents, and a dedicated warning when the plugin is part of a dependency cycle — because unplugging a mutual dependency can destabilise the harness itself.
• No auto re-insertion: unplug is a real entry.update({disabled:true}); nothing silently re-inserts a plugin later.
• Server-side guards: core infrastructure (loader / include / isolate), the graph plugin itself, and any operation whose cascade would hit the graph are refused server-side, not just hidden in the UI.
• Re-plug is one click (re-enabling is safe), with live state flip on the next poll.

Activity & status

• Live tool-execution log (all / errors only) with connection-state pill.
• Runtime flow effects: white motes on active edges, red motes for failed calls; pulse animation when a plugin's state changes.

UI / UX / performance

• Single-file UI (assets/index.html), zero external dependencies, no CDN, no build step.
• 170-node synthetic load (state churn + event stream + drag): mean frame gap ≈ 17 ms in the automated perf test — no long hitches.
• Accessibility: prefers-reduced-motion support, focus-visible outlines, aria-live announcements, color-scheme: dark.
• Dark, restrained visual language: white node surfaces, state-only accent colours, deep background.

Security posture

• CSP meta tag (default-src 'self'), X-Content-Type-Options: nosniff, esc() on every server-originated string that touches innerHTML.
• Adversarial test suite: XSS payloads through popup / confirm / panel / search, prototype-pollution keys, malformed state payloads — all asserted inert.

Installation

Requires a DSH installation with a web profile.

dsh plugin --profile web add https://github.com/jelly-000/dsh-3d-plugin-graph

Then restart the web profile (or let HMR pick it up). For local development you can point add at a directory instead of a URL.

Usage

Once installed, open the DSH web UI — a floating 「插件图谱」 entry appears bottom-right. Or access directly:

What	URL
The graph UI	http://127.0.0.1:3080/plugins/dsh-3d-plugin-graph/
Live state JSON	http://127.0.0.1:3080/plugins/dsh-3d-plugin-graph/state
Enable / disable a plugin	POST /plugins/dsh-3d-plugin-graph/action with `{"action":"plug"

Controls

Input	Action
Drag empty space	Orbit camera
Shift / right drag	Pan
Wheel	Zoom, anchored at cursor
Drag a node	Move it (physics: collision + springs)
Click a node	Select → detail card
Double-click a node	Focus it (camera converges)
Double-click empty space	Reset view
R	Reset view
Esc	Close popup / confirmation
Search box (top right)	Fuzzy plugin search, arrows + Enter to focus

How it works

flowchart LR
  A[ctx.loader.entries] --> B[Plugin nodes]
  C[ctx.reflect.store] --> D[Service providers]
  E[fiber.inject] --> F[Dependency edges]
  G[ctx.tools.schemas] --> H[Tool surface]
  I[tools/result events] --> J[Activity stream]
  B --> K[/state snapshot/]
  D --> K
  F --> K
  H --> K
  J --> K
  K --> L[3D UI - 2s poll merge]

Full details in docs/ARCHITECTURE.md — key decisions:

• Drag resolves by id, not by closure: event handlers look the node up at event time, so 2 s state merges can never leave the pointer holding a ghost object.
• Drag is isolated from physics: the dragged node is excluded from collision, springs and drift while held; it stops exactly where you drop it.
• Real state only: the graph never invents data; every status, edge and service is read from the runtime.
• Schema contract: the dsh_plugin_graph_status tool output schema declares every top-level key, so bind failures are impossible.

Development & testing

npm install        # no runtime deps; scripts need none either
npm run verify     # offline harness simulation: states, edges, guards, schema, adversarial HTTP
npm run test:ui    # headless Chrome + CDP: real pointer drag / orbit / zoom / unplug flows (77 checks)
npm run test:security  # XSS / prototype-pollution / malformed-data adversarial checks
npm run test:perf  # 170-node synthetic load, asserts mean frame gap < 25 ms

All suites run against mock servers and real headless Chrome — no live DSH instance needed.

Repository layout

lib/index.js        Host plugin: /state, /action (guarded), /, /client.js, tool dsh_plugin_graph_status
lib/client.js       Browser client launcher (ModuleLoader protocol), floating entry + panel
assets/index.html   Single-file 3D UI (no external dependencies)
docs/               Architecture notes, screenshot, demo video
scripts/            verify / ui / security / perf test suites

License

MIT
