dsh-context-usage-guard

Keeps the DeepSeek Harness composer's context-usage ring honest: an empty usage sample during a retry no longer collapses it to 0%, and its percentage is typeset at the size of the figures beside it. English | 简体中文

A DeepSeek Harness (dsh) plugin that repairs two defects in the composer's context-usage ring — one in the value it shows, one in how large that value is drawn:

1. the ring stops dropping to 0% while a model request is being retried — the host half; and
2. the ring's percentage renders at the size of every other figure on its own line — the browser half, one stylesheet rule.

The two bugs it repairs

One line, in the composer footer:

  182 steps · 238 tok/s      33.4M tok · Cache hit 94%      ◯ 30%
                                                             ↑
              the ring's 30% was one pixel larger than every other figure

Mid-retry, the same ring read 0% instead of holding the last real reading:

  ◯ 0%   →   ◯ 6%

The ring collapses to 0% while a request is being retried

The ring renders the session projection contextPressure. That projection takes the newest usage sample as the current prompt size and publishes:

pressureTokens  = usage.inputTokens + cacheReadTokens + cacheWriteTokens
projectedTokens = max(0, pressureTokens + surfaceTokens - sampledSurfaceTokens)

A model call that fails before the provider reports anything — a 429, a rate limit, a timeout, a transport error, or a user cancellation — still ends its stream with a usage chunk:

[ { "type": "chunk", "chunk": { "type": "usage",  "usage": { "inputTokens": 0, "outputTokens": 0, "totalTokens": 0 } } },
  { "type": "chunk", "chunk": { "type": "finish", "reason": { "kind": "error",
      "failure": { "code": "RATE_LIMIT", "message": "429: token_capacity_exceeded" } } } } ]

The adapter's accumulator starts at zero and nothing ever overwrote it, so this sample is empty, not a measurement. But it is the newest sample, so pressureTokens becomes 0, and because the sample is stamped at the current surface total the projection publishes projectedTokens: 0. @deepseek-ai/dsh-llm-retry then retries the same step — six times in the session this plugin was written from — and the ring reads 0% for the whole storm, misreporting a context that never changed.

Measured against the shipped contextPressure fold, replaying that session's real events (test/fold.spec.ts):

Replay	pressureTokens	projectedTokens	Ring
after the last successful call, before the retry	64 389	64 389	6%
the failed attempt, unguarded	0	0	0% ← the symptom
the failed attempt, guarded	64 389	64 389	6%
the retried step finally succeeds	64 575	64 575	6%

The percentage is one pixel larger than the figures beside it

The same footer band holds the session statistics and the ring, and the two shipped stylesheets disagree by one pixel about how big a figure is:

/* @deepseek-ai/dsh-client-ui-chat — StatsPills.module.css, the pills */
.bOPqQW_root    { font-size: calc(var(--dsh-content-font-size-secondary,13px) - 1px) }

/* @deepseek-ai/dsh-client-ui-conversation — ContextMeter.module.css, the ring */
.JObwrW_trigger { font-size: var(--dsh-content-font-size-secondary,13px) }

Both prefixes are content-hashed per build — the pair above is what the 0.2.0-rc.2 packages installed here carry; the declarations are what matters, and test/meter-typography.spec.ts re-reads them from the installed packages rather than trusting this block.

So 30% renders about 8% larger than the 182 steps, 238 tok/s, 33.4M tok and Cache hit 94% beside it, which reads as a different typeface. Measured on a screenshot of that line: every other figure has a 12 px cap height, the ring's has 13–14 px — a ratio of 1.08, exactly 13 ÷ 12. The meter's own breakdown panel is already 12px, so the trigger is the outlier.

What the plugin does

Half	Surface	What it does
Host	llm/stream waterfall	one listener that withholds an empty usage sample belonging to a failed attempt, so the projection keeps its last real reading
Browser	the document head	one self-tagged stylesheet rule that puts the meter's percentage at the statistics pills' figure size

Neither half adds a page, a route, a settings section or a stored file. The host half declares inject: ['llm'], so the LLM service must exist first, and it registers inside ctx.effect: cordis runs the disposer on unload, when the profile patch disables the row, or at shutdown — a bare ctx.on would leak the listener past unload.

One rule, applied to the chunk stream of every model call:

A usage sample whose every reported count is zero measures nothing. When it belongs to an attempt that ended in error or aborted, it is dropped, so the previous real reading stands.

Everything else passes through untouched:

• a successful completion, whatever it reports — stop, tool-calls and max-tokens are authoritative provider answers, so a zero there is left for the consumer to judge;
• a failed attempt that did report something — a partial call can carry real input counts, so no billed counter is ever discarded;
• stream shape, order and timing — the withheld sample is the only chunk that moves; visible deltas keep their order and the terminal finish the retry executor reads is preserved.

How the fix works

Host half: the sample that decides the reading never lands

The wrapper holds at most one usage chunk and releases it immediately before the next chunk, so the only chunk whose position can change is the sample that decides the outcome. A stream that ends without its terminal finish still releases a held sample — the guard never swallows information it did not positively decide to drop. Withholding the chunk is legal in the stream protocol: usage may appear at most once and is never required, BlockAssembler.usage stays undefined without it, and the agent loop already omits the durable event's usage field rather than failing. Token accounting is unaffected — the projection's usage fold adds an empty sample's buckets as zero anyway, which test/fold.spec.ts pins directly.

Browser half: one stylesheet rule

The browser half adds one stylesheet rule that repeats the statistics declaration verbatim:

button[aria-haspopup="dialog"]:has(> svg > circle) {
  font-size: calc(var(--dsh-content-font-size-secondary,13px) - 1px);
}

• Structural selector, not a class name. The meter's button is the only dialog-opening control whose icon is the ring — an inline <svg> with <circle> children — while the statistics pills draw <path> icons. A build that re-hashes every class name cannot break the rule, and the pills can never match it. Specificity (0,1,3) beats the shipped (0,1,0), so there is no !important.
• One declaration. Nothing is hidden, moved, recolored or replaced; the line box is unchanged, because both shipped rules already share line-height.
• Self-limiting. test/meter-typography.spec.ts reads both declarations out of the installed packages and fails when they converge, so a release that fixes the trigger upstream says so instead of leaving a silent workaround behind.

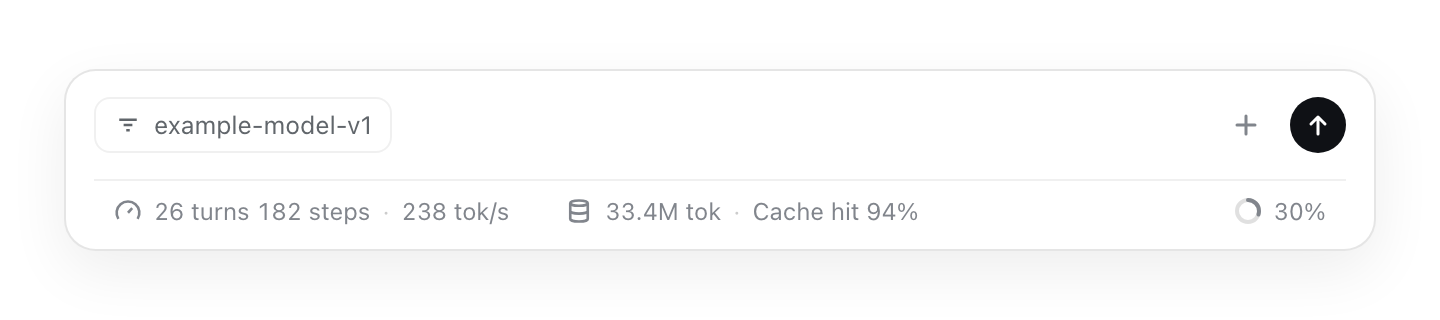

Screenshot

The footer band as tools/preview.mjs renders it outside the GUI: the pills' 26 turns 182 steps · 238 tok/s and 33.4M tok · Cache hit 94%, and the ring's 30%, now share one figure size — all of it drawn from the installed dsh-client-ui-chat and dsh-client-ui-conversation stylesheets. The figures are a replay of plausible session projections, not a capture: the harness never reads a session log, a profile or the network.

Requirements

Requirement	Version	Notes
DeepSeek Harness	0.2.0-rc.2	the dsh version this build is pinned to; peers are @deepseek-ai/cordis ^4.0.1, @deepseek-ai/dsh-llm 0.2.0-rc.2 and @deepseek-ai/schemastery ^3.18.3
Node.js	>=22.17.0	engines.node in package.json
pnpm	11.8.0	only for developing this repository: pnpm check and pnpm build
Google Chrome, Chromium or Edge	any recent	only for tools/preview.mjs, the screenshot harness

The built halves are committed in lib/, so installing the plugin needs no build step and no toolchain beyond the harness you install it into.

Install

git clone https://github.com/icrefin/dsh-context-usage-guard.git
cd dsh-context-usage-guard
sh scripts/install.sh

scripts/install.sh packs dist/dsh-context-usage-guard-0.2.0.tgz and prints the path to give the app. The desktop profile is owned by the Electron application, so dsh plugin add refuses it: install the tarball from Settings → Plugins (or with the plugin-manager tool), then restart. A bundle added to a running profile cannot be imported by that process — its module path is not in the resolution the harness computed at boot — and the browser half additionally needs the page reloaded.

To run the suite before or after installing:

pnpm install
pnpm check     # tsc over both halves, then 40 tests in five suites

Two operational notes:

• Reinstalling the same version is a no-op. pnpm sees an unchanged spec and leaves the extracted copy in node_modules alone, so a rebuilt tarball at the same version does not reach the profile. Remove the bundle first, then install it again — or bump the version.
• A host-side change reaches the running app only on the next start. On the first install the host listener activates and the browser half registers as soon as the install finishes. After that the two halves diverge: the browser bundle is re-imported when its revision changes, but the host half is a boot-time ESM import and keeps serving the code the process started with. This is upstream behaviour; client-side changes never need a restart.

Uninstall

Remove the bundle from Settings → Plugins (or with the plugin-manager tool) and restart. Nothing else is written: no route, no file, no stored state. The stylesheet goes with the bundle — the client module system evicts any <style> tagged for this package, and the plugin's own effect removes it even earlier.

Configuration

The row's Config is the settings namespace, so the values live in the row's config in <profile>/cordis.patch.yml:

- id: dsh-context-usage-guard
  config:
    enabled: true
    logHeldSamples: false

Field	Type	Default	Meaning
enabled	boolean	true	While off, every stream is passed through untouched.
logHeldSamples	boolean	false	Log one host line per withheld sample: route and failure code.

Both fields are volatile, so a change applies to the next request with no reload. The defaults change nothing except the repair itself: a fresh install behaves like a stock one that keeps its context reading honest.

[dsh-context-usage-guard] held an empty usage sample from a failed request
  (example-provider/example-model-v1, RATE_LIMIT); the context reading stays at its last value

What this plugin deliberately does not do

• It does not touch the projection registry. dsh-token-meter registers contextPressure internally and the registry shares a key rather than replacing it, so a second registration cannot override the fold, and re-registering the same key first would hijack a package this plugin does not own. Repairing the fold's input is the narrow fix; the fold itself is left to its owners.
• It does not replace or restyle the ring's component. The meter is rendered inside dsh-client-ui-conversation's input bar with no extension seat. The one thing the browser half does is add a font-size declaration to the trigger the statistics already prove is wrong; the ring, its icon, its colors, its hover state and its dialog are the shipped ones.
• It does not invent a number. When nothing measurable has ever been reported, the projection stays absent and the ring stays hidden — the shipped behavior — rather than showing a value nobody measured.
• It does not freeze the reading. The next successful attempt reports real usage and the ring advances, which the suite asserts.

Limits

• The repair is about failed attempts. A successful completion reports what the provider sent, zeros included, because a stop/tool-calls/max-tokens answer with zero counts is still an answer. The plugin never overrides a provider's own numbers.
• The browser half is a workaround with a built-in expiry. It exists because the two shipped declarations differ; the moment they converge the suite fails and the rule should be deleted rather than kept.
• Its pixels are checked outside the GUI, not inside a live session. tools/preview.mjs renders the real bundle and the real stylesheets in headless Chrome and fails unless the meter matches the pills; what the running app paints with a user's own theme and font settings is not asserted automatically.
• The host half only sees calls that use the LLM service. It sits on the llm/stream waterfall, which is where the harness routes model calls; a provider reached around that service is neither guarded nor broken by this plugin.

Troubleshooting

The ring still reads 0%. Check that enabled is true. If it is, the reading came from a call that completed successfully: the guard withholds empty samples only from attempts that ended in error or aborted, and a successful answer reporting zero is left for the consumer to judge. Once a retried step succeeds, the next real usage sample takes the reading over again.

The percentage still looks larger than the figures beside it. The rule is installed when the browser half registers, so a plugin installed into a running app needs the restart described in Install and then a page reload. After that, test/meter-typography.spec.ts is the authority: it fails when the shipped declarations converge, which is the signal to delete the rule.

No held an empty usage sample line appears in the log. That line is behind logHeldSamples, which defaults to false; the repair itself does not depend on it. Turn it on and the next withheld sample prints the route and the failure code.

License

MIT — see LICENSE.

If this plugin keeps your context reading honest, a ⭐ star helps other DSH users find it.

---

Built for DeepSeek Harness 0.2.0-rc.2 · MIT · issues and pull requests are welcome.
