dsh-bot-board

A floating board for DS Bot: what every Bot is doing right now, how long it has been running, what it is stuck on, and who is waiting on whom. No need to open each Bot's chat.

It is a DeepSeek Harness plugin and needs DS Bot installed — without DS Bot there is nothing to show, and the panel stays hidden. It reads DS Bot's own data and writes nothing of DS Bot's: no state.json edits, no api/bot calls that change state, not even a locale field that would flip your UI language. The panel's own position, size and collapsed state live in your browser's localStorage.

Requirements: DSH (a Developer Preview build is fine), DS Bot 0.1.7 or 0.2.0 (the two this was built against), Node ≥ 20 to build from source.

Install

The package is on npm. Add it to your profile's package.json (~/.dsh/profiles/desktop/package.json) and register the bundle:

{
  "dependencies": {
    "dsh-bot-board": "^0.7.1"
  },
  "dsh": {
    "profile": {
      "bundles": ["...", "dsh-bot-board"]
    }
  }
}

Then install in that directory with whatever the profile already uses — pnpm install if it has a pnpm-lock.yaml, otherwise npm install — and restart DSH completely:

killall -9 "DeepSeek Harness"    # osascript quit pops an automation prompt

To change the code instead of just using it, clone and link:

git clone https://github.com/coii08o0o/dsh-bot-board.git
cd dsh-bot-board
npm install
npm run build        # only needed after you edit src/
ln -sfn /path/to/dsh-bot-board ~/.dsh/profiles/desktop/node_modules/dsh-bot-board
killall -9 "DeepSeek Harness"

The panel appears bottom-right. The client half hot-reloads after npm run build; changes under src/host/ need a restart.

Windows: the npm install needs no symlink at all. Only the source path does, and ln -sfn is Unix-only — use mklink /D "%USERPROFILE%\.dsh\profiles\desktop\node_modules\dsh-bot-board" "C:\path\to\dsh-bot-board" from an elevated cmd.

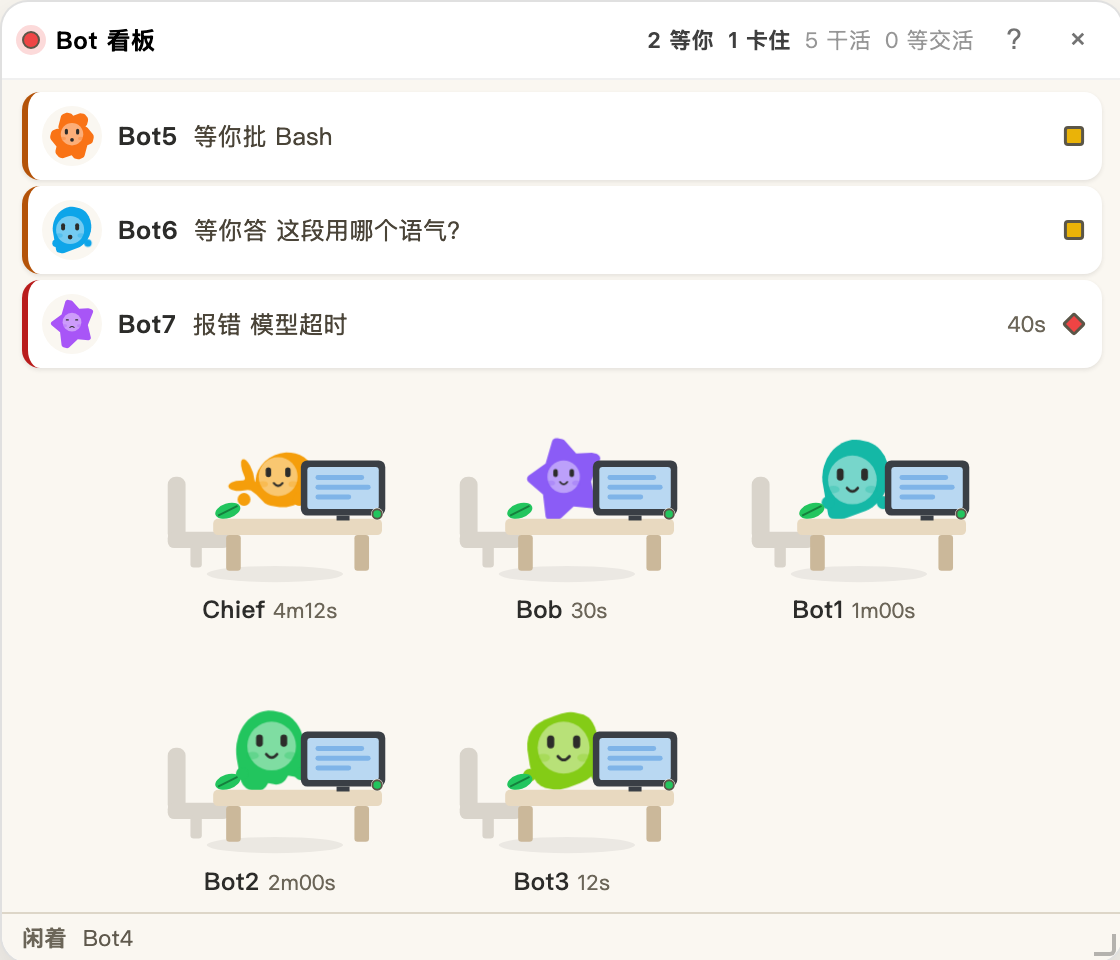

What it shows

Three bands, ordered by whether you have to do anything:

1. Needs you — up to three rows of Bots waiting on an approval, a question, or a failed turn. Each row: the Bot's face, its name, the action in its own words, how long it has waited, and a lamp. When more than three are waiting the third row grows a +N chip that expands the list in place.
2. Moving — the classroom floor: Bots that are running, waiting on another Bot, or just finished (7 seconds). Hand-off edges sit above the grid.
3. Idle — one line of names. When nothing is running and nothing is owed, the line becomes a roster instead: one 44px row per resting Bot with its face, its name, its role (or model) and 闲着 on the right. The roster reflows to two or three columns on a smaller panel, so no Bot is ever behind a scroll. A ! badge sits on a Bot that failed and has since gone quiet.

The three bands differ by image, row height, weight and surface, not by background colour. Status colour appears only on the 3px bar and the lamps.

Six states

State	Lamp	Shape	Means
Working	green	circle	running, thinking, searching, sending, handing over
Needs you	yellow	square	an approval, a question, or a new Bot waiting for a model pick
Waiting on a Bot	blue	circle	it is waiting for another Bot to hand work back, not for you
Stuck	red	diamond	failed, and not working now. After 3 quiet minutes it drops to idle with a red !
Idle	grey	circle	nothing running
Just finished	teal	circle	a clean hand-off landed; falls back after 7 seconds

Colour alone does not carry the state: stuck is a diamond, needs-you is a square, the rest are circles, and each lamp has an outline. Green and red sit 13.6 ΔE apart for red-green colour blindness — close enough that shape has to do the work.

Where the faces come from

A Bot's look is DS Bot's, not this board's. Two fields decide it:

Axis	Source	Values
Character (body outline)	bots[].avatar.shape	whale star moon wave squircle zed hex
Colour	bots[].color	19 named inks or any #rrggbb
Desk prop	this board	10 props, hashed from the Bot id

The seven outlines are redrawn from DS Bot's own shapes: the whale keeps its tail, the bull its horns, the blossom its petals. Face disc and eyes shrink per outline, because a star's concave points cannot hold an 18px disc; the two silhouettes without a round edge have no hands.

DS Bot stores those two fields only when the user picked them, so a new Bot usually has neither. Whatever is missing is hashed from the Bot id: 12 colours × 7 outlines × 10 props = 840 combinations, stable across refreshes, and a collision is re-rolled. Upstream always wins over the hash.

Names are not part of identity. A Bot called Chief gets nothing extra for the name — avatar.shape is a closed set of seven, and names are free text in whatever language you type.

Where the data comes from

What	From
Live status, current tool, elapsed time, approvals, questions, a new Bot waiting for a model	DS Bot's POST api/bot (endpoint: "state"), 1.5s while anything runs, 6s after 90s of a fully idle team
Hand-offs (from/to/open/results), room names	~/.dsh/bot/state.json, read by the host half, cached on mtime+size, polled every 5s
Failures	DSH's agent/error, mapped back to a Bot by session, kept for 15 minutes

Polling slows down when the panel is collapsed, the window is hidden, or requests keep failing (exponential backoff, 8× cap, 30s ceiling). This is not about battery: api/bot runs refresh + bootstrap + catalog + loadSecrets on every call, and unchanged only saves response size. An idle board left open still costs the upstream 40 of those a minute, and that is what the slow-down reduces.

If you moved DS Bot's data folder (bot.home in its config), point this plugin at the same folder:

- id: bot-board
  name: dsh-bot-board
  config:
    home: /path/to/bot-data   # default $DSH_HOME/bot

state.json carries DS Bot's data format version. If it is not 1, the panel says so — a moved field fails by reading the wrong value, not by crashing, and silence would be worse.

Known limits

• The panel lives in every DSH session, not only DS Bot's. It hides itself when there is no state file to read.
• Hand-offs only show what state.json still holds. DS Bot deletes a sub-record when the sub-task finishes, so chains break; there is no graph view, only the "in flight" table.
• No group-chat panel: rooms[].log[] has no timestamps, and group chat went unused on the machine this was built on.
• Failures cover what DSH's agent/error reports (model and tool steps); a dropped network connection is not one of them.
• The classroom is a light island by design. In a dark theme the room stays cream and the text stays dark.
• DS Bot's avatar.image (an uploaded photo, up to 160KB as a data URL) is not drawn. Seven outlines is the whole vocabulary here; a photo inside a 138px workstation is a different problem.
• DS Bot changing api/bot fields will need a matching change here. The ink values come from its src/client/inks.js.
• The snapshot is visible to any authenticated DSH session. /api checks an HttpOnly cookie and an owner principal and binds to loopback by default, but same-origin plugin scripts, remote trustedHosts and API operator tokens can read it.
• state.json is treated as semi-trusted input. A drifted or mistyped field degrades to an empty value instead of crashing the panel, which means a wrong value is possible; the panel says so when dataVersion does not match.
• Error text is copied into system notifications, which can appear on a lock screen or a shared screen. Turn notifications off for this plugin in sensitive environments.

Development

src/host/index.js       host half: snapshot route, failure store
src/client/index.js     apply / slot registration
src/client/rows.js      row building (pure)
src/client/scene.js     state priority (pure)
src/client/layers.js    band membership, hand-off edges, idle demotion (pure)
src/client/station.js   workstation SVG, lamp component, blob
src/client/panel.js     shell, drag, resize, collapse, three bands
src/client/poll.js      the two pollers
src/client/cadence.js   polling rhythm (pure: slow down when the team is idle)
src/client/const.js     tunables, six states, seven characters, 19 inks
tools/build.mjs         esbuild bundle in __ModuleLoader__ format
tools/smoke.mjs         host snapshot + pure logic + artifact contract + CSS
tools/render-check.mjs  renders the component tree through a React shim

npm run build    # rebuild client.js after editing src/
npm run smoke
npm run render
npm run check    # all three, build first
npm run verify   # only: is client.js the build of the current src/?
npm run ci       # verify + smoke + render, no build
npm run preview  # static HTML of nine scenarios, measured in a browser

verify and ci exist because they do not build. check always builds first, so "the artifact is stale" cannot be expressed there — put an old client.js back and all 531 assertions still pass. verify compares the src fingerprint in the bundle banner against a fresh hash, and ci runs that plus both suites, so a forgotten build fails before release.

The preview export is not a mockup. It renders the real components with the real CSS and prints clientHeight/scrollHeight under each panel. That is how the 0.72px margin at 560×480 was measured.

react and react-dom stay external at build time and are injected by __ModuleLoader__; bundling a second React breaks hooks.

Notes for the next plugin

• connection.fetch.register needs a leading slash (/api/bot-board); paths match exactly, not by prefix.
• The connection service may arrive after apply(). Wait with ctx.inject(['connection'], cb) — an early if (!ctx.connection) return registers nothing and says nothing.
• The id in __ModuleLoader__.load({ id }) must equal the package name; rename the package without rebuilding and the bundle silently never loads.
• The panel sits in the shell.overlay slot above order 500, clear of DS Bot's 50/55/60.
• rooms[].log[] has no time field (only seq), so "3 minutes ago" has to be tracked yourself.
• works[].room is a room id, not a Bot id.
• bots[].sessionId is the current part; segments[] holds only ended parts. Collect both when mapping a session to a Bot, or errors from a Bot that rolled over a part go missing.
• api/bot's state is not a pure read. Do not poll it at high frequency.
• After changing a host-half plugin, quit DSH entirely. killall -9 "DeepSeek Harness" is cleaner than osascript quit.

Uninstall

Remove dsh-bot-board from the profile's bundles and dependencies, drop the link, restart.

Issues

Include three things: your DSH version, your ds-bot version, and what the panel header says (or a screenshot). A DS Bot upgrade changing a field is the most common failure here, and the version number saves a round trip. Run npm run ci before opening a PR — it checks that client.js matches src/.

License

MIT. See LICENSE.

The seven character outlines come from DS Bot (Apache-2.0), and the 19 ink values from its inks.js. The board redraws them as dumplings — face, eyes, hands and desk props are this project's. DS Bot is Apache-2.0 and the attribution stays here.

---
