dsh-vista

Visual memory and active inspection for DeepSeek Harness.

Your agent sees an image once. dsh-vista makes it addressable forever.

DSH agents work with screenshots, charts, and rendered pages, but the image that matters is often gone after the next tool call or compaction. dsh-vista keeps every image it has seen in an addressable archive and gives the agent three tools to go back to it:

• inspect — revisit any past image and crop any region, enlarged without smoothing;
• read_pixels — sample exact colors from a region as a compact symbol matrix;
• visuals — list the images the agent has already seen.

Every image that reaches the model is automatically tagged with a stable id:

<visual id="v12" source="tool:read_image" size="1280x720"></visual>

The model can reference v12 later even if the original image has fallen out of the context window.

Why

• Compaction drops bytes, not meaning. dsh-vista keeps the original bytes addressable after the context has moved on.
• Re-screenshotting is expensive and lossy. The screen has changed; the image you need is the one from three steps ago.
• "Look at the whole image again" is not inspection. A good visual agent asks a specific question about a specific region.
• Text-only fallback. read_pixels works even when the model route accepts text only.

Install

dsh plugin --profile web add dsh-vista

Or pin a version:

dsh plugin --profile web add dsh-vista@0.1.3

Then verify:

dsh --profile web --dump-config | grep dsh-vista
dsh --profile web

From a GitHub checkout:

dsh plugin --profile web add github:ZhangShurong/dsh-vista#v0.1.3

Tools

Tool	What it does	Output
inspect	Select an archived visual and an optional region; crops from the original and enlarges with nearest-neighbour.	Image blocks
read_pixels	Divide a region into equal rows and columns; sample each centre pixel.	Palette + symbol rows
visuals	List recent visuals with id, source, size, and timestamp.	JSON

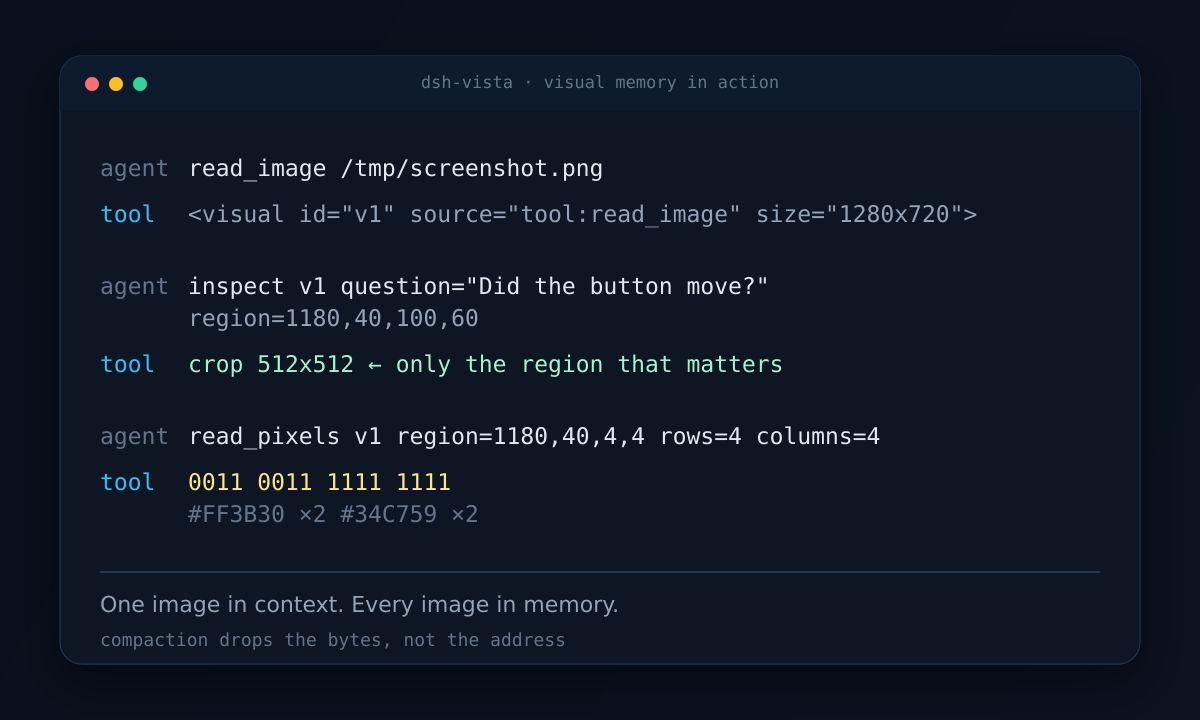

Example inspect:

{
  "question": "Did the button move after the click?",
  "views": [
    {
      "label": "button before",
      "visual": "v11",
      "region": { "x": 1180, "y": 40, "width": 100, "height": 60 }
    }
  ]
}

Example read_pixels result:

{
  "palette": { "0": "#FF0000", "1": "#0000FF" },
  "views": [
    { "label": "quadrant", "visual": "v1", "rows": 2, "columns": 2, "samples": ["01", "11"] }
  ]
}

read_pixels only measures. It does not align, transform, or interpret pixels.

How it works

tool result / attachment
        │
        ▼
tools/post-execute ──► archive bytes, assign vN, prepend <visual id="vN">
        │
        ▼
     model sees: <visual id="v12" ...></visual>  [image]
        │
        ├── inspect(v12, region)      ──► cropped + enlarged image
        ├── read_pixels(v12, region)  ──► palette + symbol rows
        └── visuals()                 ──► index of previous images

The archive is content-addressed and append-only (index.jsonl plus files under archiveDir). DSH's attachment service still owns the image that reaches the model; dsh-vista keeps a second copy so visual ids survive compaction and image offload.

Configuration

Defaults live in src/config.ts. Override them in the bundle row or the profile patch:

- id: dsh-vista
  config:
    archiveDir: /home/me/.dsh/dsh-vista/archive
    displaySize: 1024
    maxInspectViews: 8
    maxPixelViews: 16
    maxPixelSamples: 4096
    annotate: true
    retentionDays: 7

Field	Default	Meaning
archiveDir	$DSH_HOME/dsh-vista/archive	Byte store and index.jsonl.
displaySize	1024	Longest edge of an inspected crop.
maxInspectViews	8	Views per inspect call.
maxPixelViews	16	Views per read_pixels call.
maxPixelSamples	4096	Total samples per read_pixels call.
annotate	true	Insert <visual id="..."> before every archived image.
retentionDays	7	Delete older archived visuals; 0 keeps forever.

Verified against DSH 0.2.1-rc.2

Tested end to end with deepseek-flash:

1. read_image returned an image; dsh-vista archived it and appended <visual id="v1" source="tool:read_image" size="16x16">.
2. visuals listed v1.
3. inspect cropped and enlarged the archived image and returned a model-visible 1024×1024 PNG.
4. read_pixels returned the expected 01 / 11 color samples.
5. The model correctly described the red/blue quadrants.

The attachment bridge in src/content.ts uses:

ctx.attachments.saveImage({ data, mediaType, name })
ctx.attachments.imageHostPath(ref)

Both are confirmed in the installed @deepseek-ai/dsh-attachment.

What this deliberately does not do

• No environment adapters (ARC-AGI-3, GameWorld, browser automation).
• No play / act action tools.
• No one-action-per-turn policy, budgets, or evaluation harness.
• No Python sidecar.

Those belong in follow-up plugins. This one answers a narrower question: does addressable visual memory plus active inspection improve a DSH agent's visual work?

Development

pnpm install
pnpm typecheck
pnpm build
npm pack --dry-run

The package is an ESM bundle. lib/ is generated; assets/ contains the logo and README images.

Releasing

Publishing runs in GitHub Actions, not from a laptop.

Tag-driven (recommended):

npm version patch          # or minor / major
git push --follow-tags

Manual button:

Actions → Publish → Run workflow → choose patch, minor, or major. The workflow bumps the version, commits, tags, and publishes.

The workflow uses npm Trusted Publishing (OIDC) and publishes with provenance. One-time setup:

1. Open https://www.npmjs.com/package/dsh-vista/access
2. Add a Trusted Publisher → GitHub Actions:
   • Owner: ZhangShurong
   • Repository: dsh-vista
   • Workflow filename: publish.yml
3. No NPM_TOKEN secret is needed.

If you prefer a token instead, add an NPM_TOKEN repository secret and set NODE_AUTH_TOKEN: ${{ secrets.NPM_TOKEN }} on the publish step.

CI (.github/workflows/ci.yml) runs typecheck, build, and npm pack --dry-run on every push and pull request.

License

MIT
