Bulk–scRNA Concordance

Compare bulk RNA-seq expression with group-level pseudo-bulk profiles from single-cell RNA-seq. Available as a DSH Host plugin, Python CLI and MCP server for Claude, ChatGPT and other MCP clients.

The tool reports Pearson and Spearman correlations, a linear regression, optional group-matching diagnostics, and figures. Each run records parameters, input/output hashes and package versions.

Inputs and analysis

• Single-cell raw counts: .h5ad, or a genes × cells CSV with cell metadata.
• Bulk expression: a genes × samples CSV/TSV.
• A group label for each cell; bulk sample names must contain the matching group as an exact delimited token.

Cells are summed by group, and bulk samples are averaged within each group. The default normalization is CPM followed by log2(x+1). The regression and figure use bulk as x and pseudo-bulk as y, with the same genes and transformations.

For .h5ad, the default count source is layers['counts'] when available, otherwise X. Select a layer with --sc-layer <name> or explicitly select raw.X with --sc-use-raw. Gene metadata follows the selected matrix. All single-cell inputs must contain raw counts: nonfinite, negative and non-integer values are rejected. These checks cannot prove that integer-valued data are untransformed; confirm the source before running.

This is a descriptive comparison. Pooling by group does not estimate biological replicate variation. The optional matched–mismatched correlation gap can flag unexpected matches, but does not prove biological agreement.

See docs/usage.md for parameters, normalization and limitations.

Requirements

Python with numpy, pandas, scipy and matplotlib; .h5ad input also requires anndata and h5py.

python -m pip install -r requirements.txt

Real-data example: human iPSC (GSE77288)

This example compares independently measured bulk and single-cell read counts from three donors in Tung et al. (2017), available as GSE77288. It uses the authors' 564 QC-passing cells and eight matching bulk libraries. The QC list excludes all NA19098.r2 cells, so that batch's bulk library is also excluded. Both inputs use untransformed read counts; the 92 ERCC spike-in columns are removed.

Donor	Cells	Bulk libraries	Genes used	Pearson r	Spearman ρ
NA19098	142	2	15,844	0.966628	0.963411
NA19101	201	3	16,440	0.968652	0.967269
NA19239	221	3	16,247	0.972792	0.970065

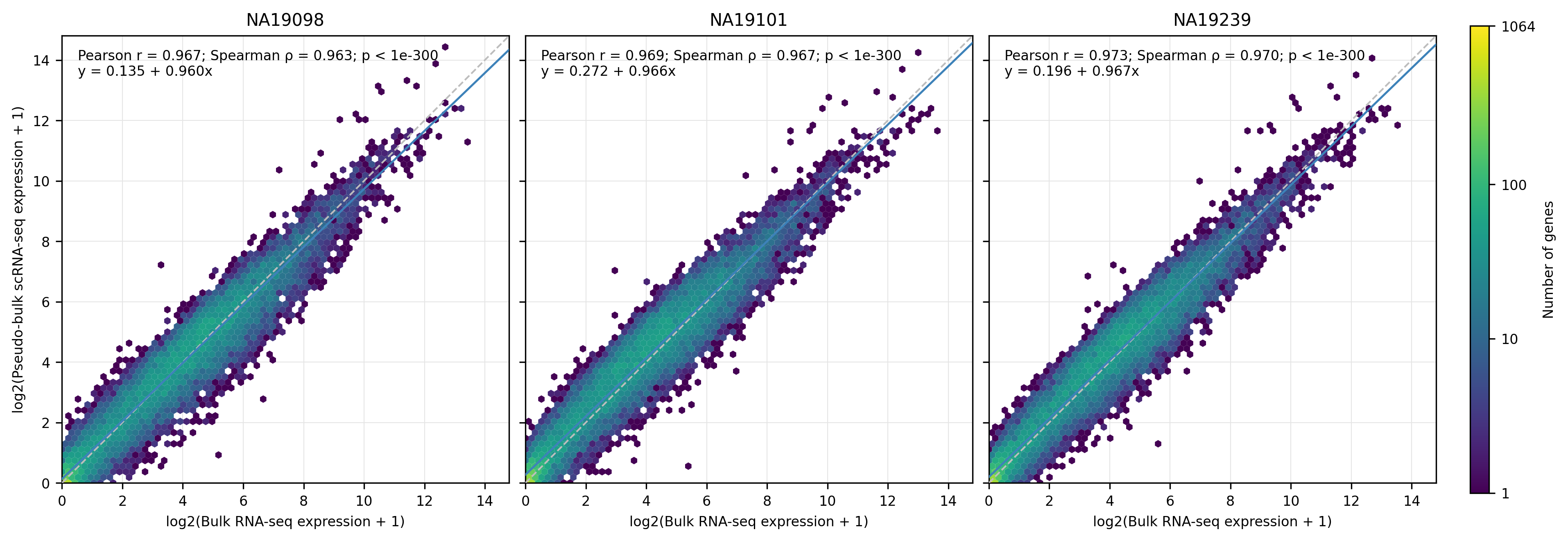

The figure uses default shared axes, hexagonal gene-density bins, a logarithmic gene-count colorbar, grid lines, regression lines and per-panel statistics. The reference run used analysis commit 7478bde. Raw counts and the correlations/regressions were checked independently.

PDF · SVG · Statistics CSV · Cross-donor correlations · Results, parameters and source hashes

From the repository root, prepare the public inputs and run the same analysis:

python examples/gse77288/prepare.py --out-dir results/gse77288/input-data
python python/bulk_scrna_concordance.py \
  --sc-h5ad results/gse77288/input-data/sc_read_counts.h5ad \
  --bulk-csv results/gse77288/input-data/bulk_read_counts.csv \
  --group-col individual --gene-id-key var_names --discriminability \
  --out-dir results/gse77288 --out-prefix GSE77288_real \
  --results-json results/gse77288/GSE77288_real_results.json

The preparation script downloads about 13 MB of compressed counts plus sample annotations, verifies fixed SHA-256 hashes, and writes raw-count inputs and provenance. It reuses verified cached downloads on later runs. The underlying counts are downloaded from their public sources rather than bundled here. See the example notes for filtering, caching and the reference environment. All three donors are iPSCs: these gene-wise correlations describe expression agreement, not biological replicate inference or general classification accuracy. Pearson p-values underflow to zero in the statistics CSV and display as p < 1e-300 in the figure.

Command line

Run the included synthetic fixture:

python python/bulk_scrna_concordance.py \
  --sc-matrix-csv examples/synthetic/sc_expr.csv \
  --sc-meta-csv examples/synthetic/sc_meta.csv \
  --bulk-csv examples/synthetic/bulk.csv \
  --group-col Group --discriminability \
  --out-dir results --out-prefix example \
  --results-json results/example_results.json

For real .h5ad data:

python python/bulk_scrna_concordance.py \
  --sc-h5ad /path/to/counts.h5ad --sc-layer counts \
  --bulk-csv /path/to/bulk.csv --group-col Group \
  --out-dir results --out-prefix my_run \
  --results-json results/my_run_results.json

DSH plugin

Clone the repository:

git clone https://github.com/Wanner122333/dsh-bulk-scrna-concordance.git

In DSH, open Settings → Plugins and install the bundle using the absolute path to the checkout containing package.json. The registered tool is bulk_scrna_concordance. Check the installation result and restart DSH if it reports restart-required.

For profiles managed through the CLI:

dsh plugin --profile <profile> add /absolute/path/to/dsh-bulk-scrna-concordance

Set pythonPath in the profile's plugin configuration if the required Python interpreter is not on its PATH:

- id: bulk-scrna-concordance
  name: "@local/dsh-bulk-scrna-concordance"
  config:
    pythonPath: /absolute/path/to/python
    defaultTimeoutMs: 1800000
    maxLogLines: 40

Use the in-app installer for the Desktop-owned profile.

ChatGPT and Claude through MCP

Install the optional MCP dependencies:

python -m pip install -r requirements-mcp.txt
python python/mcp_server.py --transport stdio --workspace /path/to/data

The server exposes bulk_scrna_concordance through stdio for local clients such as Claude Desktop and Claude Code. Streamable HTTP is also supported. ChatGPT can connect through Secure MCP Tunnel or an operator-deployed HTTPS endpoint; account and workspace policies apply. See MCP setup for client configuration and deployment requirements.

Inputs must exist on the server machine. The server returns statistics and artifact paths; it does not upload chat attachments or serve file downloads. The HTTP server has no built-in authentication and binds to loopback by default. Keep it private, or place it behind an authenticated HTTPS proxy.

Outputs

Files are written under --out-dir:

File	Contents
<prefix>_results.json	Parameters, per-group statistics, diagnostics and warnings; CLI requires --results-json
<prefix>_bulk_scrna_correlation_stats.csv	Per-group statistics
<prefix>_discriminability.csv	Pseudo-bulk × bulk correlation matrix, when requested
<prefix>_bulk_scrna_correlation.{png,pdf,svg}	Scatter plots with regression and y=x lines
<prefix>_manifest.json	Code/input/output hashes and recorded environment versions
<prefix>_run.log	Analysis log when called through DSH or MCP

The manifest's environment_lock field records installed versions; it is not an installable dependency lockfile.

Checks

python -m unittest discover -s tests -v
node --check index.js

These synthetic regression checks cover input handling and numerical behavior. They do not establish biological validity or confirm an installed host's setup.
