Lumina · Light

The Photoshop post-processing suite for DSH: drive your local Adobe Photoshop from a script to grade game screenshots / photos — persistent session, parameterized recipes, one-call automated output, objective QA, style LUTs, HDR highlight reconstruction, optional super-resolution, and pixel-level visual inspection.

Lumina is a DSH host plugin (bundle). It turns "drive PS from the command line" — a loop where every iteration costs a permission prompt, a 6-second cold start, hand-written JSX, and silent-failure trial and error — into an everyday delivery tool that runs ≈5 seconds per iteration with automatic metrics and reproducible parameters:

• Persistent Photoshop session: one cold start, then ~5 seconds per image; automatically restarts and retries after a crash or kill.
• Parameterized recipes: 19 grading recipes + 5 built-in style LUTs; every parameter can be deep-merged and overridden, and versions can be appended iteratively. Styles themselves are hot-reloadable data packs (add/replace them without restarting, including parameter-only presets).
• Any framing: game screenshots, real photos, portrait/square/ultra-wide images all work; only a screenshot UI strip detected with high confidence is cropped away.
• Auto mode: just drop in an image — it crops the UI strip, decides character vs. landscape, runs HDR highlight reconstruction when needed, and applies an accepted draft preset.
• Optional super-resolution preprocessing: small/low-detail sources can first run through an external AI upscaler (Real-ESRGAN / waifu2x, ...), with a built-in Lanczos fallback when no external tool is configured, before HDR reconstruction and grading.
• Objective QA: highlight clipping, sharpness, midtones, saturation, output size — pass or fail is listed outright; auto mode can also self-heal and re-run.
• Per-task project folder: source image, the actual JSX that ran, PSD, final output, before/after metrics, a 1:1 comparison image, and the full version history are all persisted and reproducible.
• Vision tools: high-zoom viewing with a coordinate grid, a pixel probe, and native-resolution text pixel maps — not bounded by the image token limit.

Screenshots

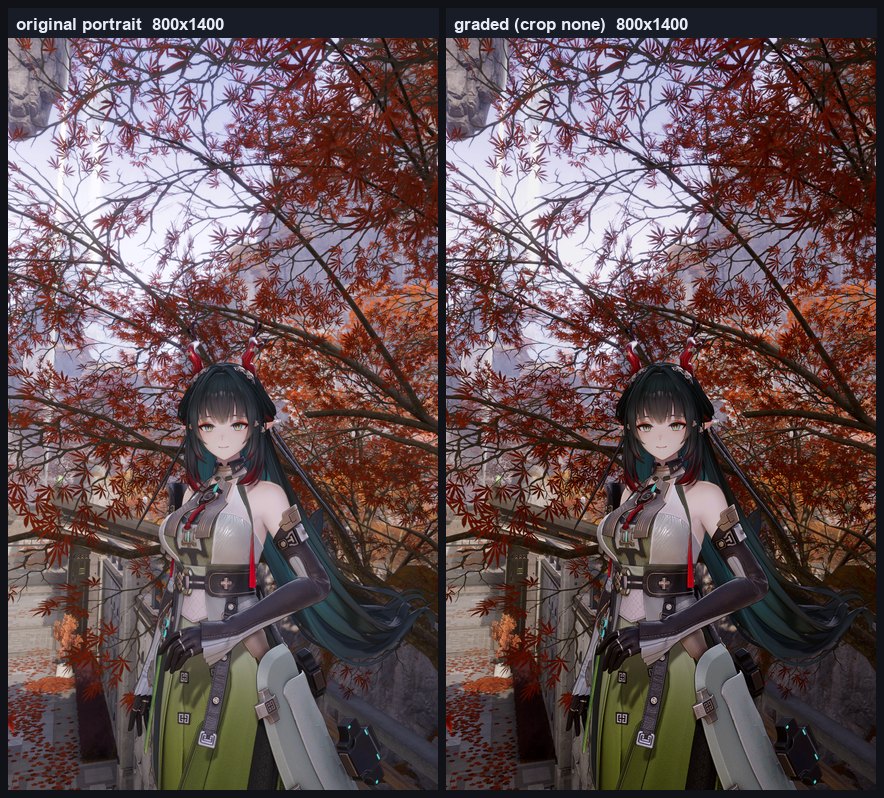

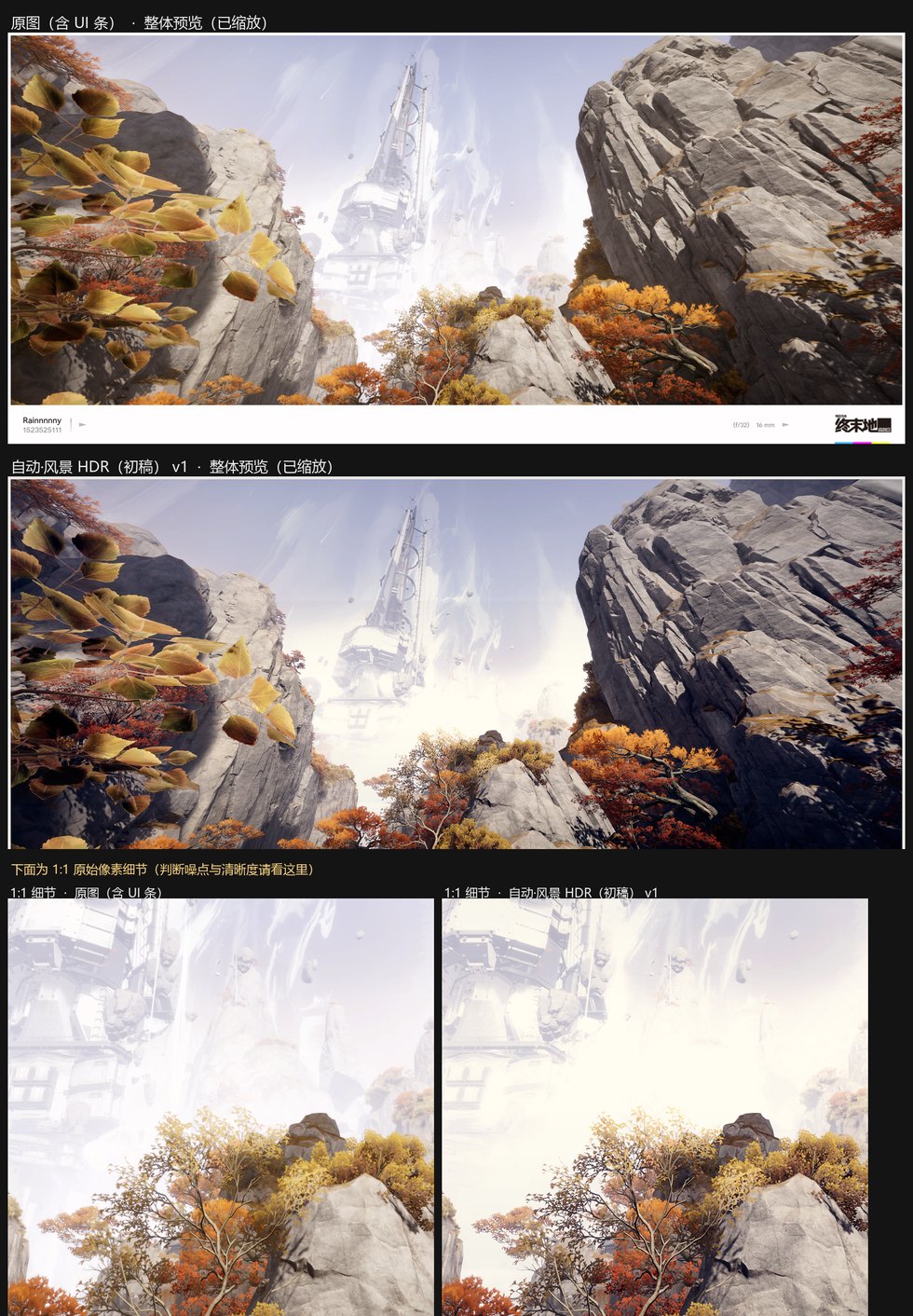

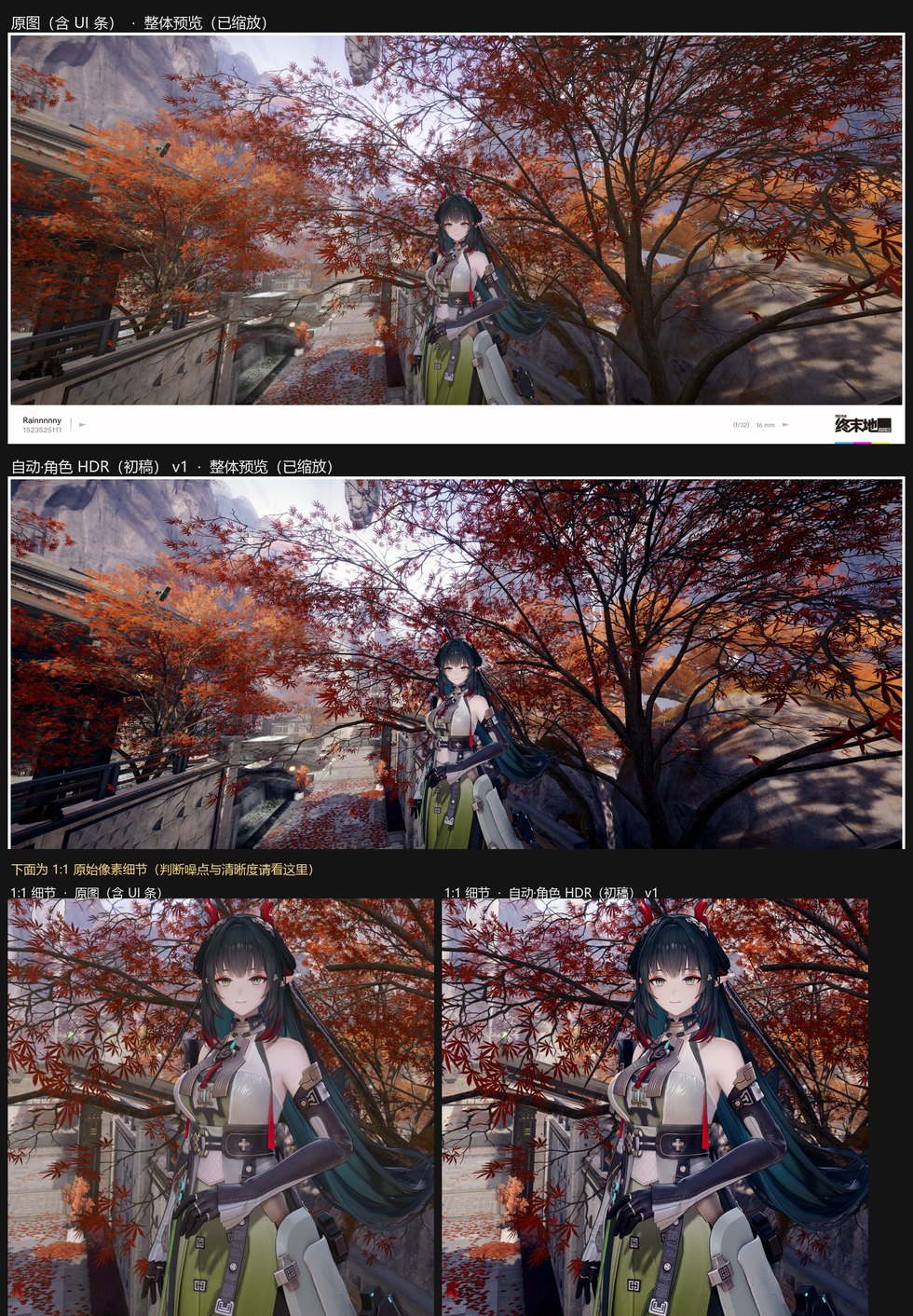

Auto · landscape (HDR reconstruction + before/after)	Auto · character (cinema style LUT)

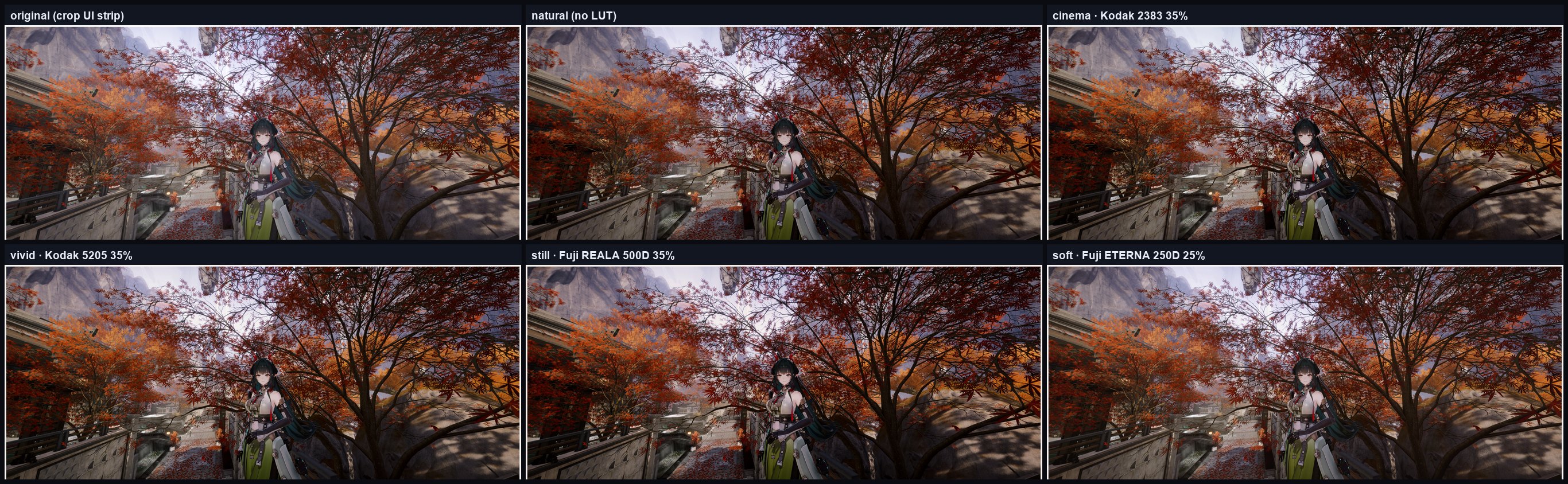

All 5 built-in styles side by side (original → natural → cinema → vivid → still → soft):

Tools

Tool	What it does
ps_grade	Runs a recipe on an image: creates the project folder, universal auto assessment (screenshot/photo, sharpness, UI strip, EXIF orientation, low-res/blurry auto super-resolution, automatic fallback for corrupt engines), grades/layers, writes PNG/PSD, builds a before/after comparison image with 1:1 detail, computes metrics, and runs QA. Pass project to append a new parameter version; crop:{"mode":"none"} keeps the full resolution.
ps_measure	Quality metrics for any image (brightness distribution, highlight/shadow clipping, saturation, sharpness, size, UI strip) + automatic assessment: blur, noise, EXIF orientation, photo/screenshot decision. Does not modify the file.
ps_state	Photoshop session state, LUT folder, case bank, hot style pack, super-resolution settings, available recipes / styles, recent projects. start=true warms it up, quit=true releases the memory.
vision_zoom	High-resolution viewing: enlarge a region + original-image coordinate grid + edge overlay + markers, and hand the image straight back to the model.
vision_probe	Pixel probe: exact RGB, luminance, and edge strength at given coordinates or at sampled points along a line segment.
vision_textmap	Renders an image region as a native-resolution "text pixel map", not bounded by image token/size limits.

Installation

Requirements

Photoshop compatibility: 2025 (26.x) tested; 2020-2024 expected (older Select Subject failures degrade gracefully); 2019 and earlier unsupported; Photoshop Elements / macOS unsupported (Windows COM required).

• Windows 10/11 + Adobe Photoshop (developed and verified against Photoshop 2025; ps_grade relies on Windows COM, earlier versions are untested).
• The DSH desktop app (the host plugin runs in the DSH host process, which is what makes launching Photoshop COM possible).
• Node.js ≥ 20 (the DSH bundled runtime is enough).
• Python 3.10+, with numpy and Pillow (already included in the DSH bundled runtime; install them yourself for standalone use).

Photoshop's install path needs no configuration: automation launches it through the system's Photoshop COM registration; only style LUTs need the Presets/3DLUTs folder, which is auto-detected (see below); unusual installs can set lutDir.

Install from npm (recommended)

dsh plugin --profile <profile> add lumina-dsh

Desktop app: Settings → Plugins → install bundle → lumina-dsh.

Restart DSH once after installing, then say hilumina in a conversation: the plugin runs its self-check (dependencies, GPU/disk, the complete super-resolution tier ladder), confirms the output folder and the CUDA fallback model, and is ready for images.

For local development, use the checkout-based install below.

Install from a local checkout (development)

Put this repository in any directory, install it in a DSH profile as a link: / file: dependency, and add it to the bundle list, e.g. C:\Users\<you>\.dsh\profiles\<profile>\package.json:

{
  "dependencies": {
    "lumina-dsh": "link:C:/path/to/lumina-oss"
  },
  "dsh": {
    "profile": {
      "bundles": ["@deepseek-ai/dsh-base", "@deepseek-ai/dsh-web-app", "lumina-dsh"]
    }
  }
}

After installing dependencies (or simply symlinking the repository folder to <profile>/node_modules/lumina-dsh), restart DSH. The plugin's cordis.patch.yml registers the six tools ps_grade / ps_measure / ps_state / vision_zoom / vision_probe / vision_textmap.

Configuration (optional)

Every config key can be omitted; omitted keys use the defaults in the table below. Example cordis.patch.yml:

- insert:
    - id: photoshop
      name: 'lumina-dsh'
      config:
        projectRoot: 'D:/Photos/Lumina'   # default <home>/Lumina
        # pythonPath: 'C:/Python312/python.exe'   # defaults to the DSH bundled Python
        # lutDir: 'C:/Program Files/Adobe/Adobe Photoshop 2025/Presets/3DLUTs'
        # casesFile: 'D:/Photos/Lumina/.lumina-cases.json'
        psWaitMs: 90000        # longest wait for a cold Photoshop start
        opTimeoutMs: 240000    # per-image operation timeout
        maxViewDimension: 4096 # max view size for vision_zoom

Config key	Default	Description
projectRoot	<home>/Lumina	Every task's project folder is created here; the LUMINA_PROJECT_ROOT env var is also supported
pythonPath	auto	Python interpreter; LUMINA_PYTHON / DSH_PYTHON are also supported
lutDir	auto-detected	The Photoshop Presets/3DLUTs folder; LUMINA_LUT_DIR is also supported
casesFile	<home>/.lumina/auto-cases.json	Writable style case bank; LUMINA_CASES_FILE is also supported
casesSeedFile	<package>/assets/auto-cases.json	Read-only seed case bank (empty/absent in the published package)
stylesFile	<home>/.lumina/styles.json	Hot-reloadable user style pack (overrides built-in styles by name); LUMINA_STYLES_FILE is also supported
superResolution	disabled	Default super-resolution preprocessing parameters (see "Super-resolution preprocessing"); fallback controls corrupt-engine fallback
assess	built-in thresholds	Overridable universal auto-assessment thresholds: {minLongEdge, blurThreshold, maxBlurUpscaleEdge, maxLongEdge, photoRecipe}
psWaitMs / opTimeoutMs	90000 / 240000	Start wait / per-step timeout (milliseconds)
maxViewDimension	4096	Cap on the image produced by vision_zoom (the model-side image size limit)

More environment variable aliases: LUMINA_CASES_SEED, LUMINA_STYLES_FILE, DSH_LUMINA_LUT_DIR, DSH_LUMINA_CASES_FILE, DSH_PHOTOSHOP_PROJECT_ROOT, DSH_PHOTOSHOP_PYTHON, DSH_VISION_PYTHON; when troubleshooting set LUMINA_DEBUG=1 (or DSH_PHOTOSHOP_DEBUG=1) to print host-side debug logs.

User config file (machine settings, not in the repository/package)

To change the plugin config without touching it, and to put projects and runtime data on another drive, use the user config file:

<home>/.lumina/config.json (or point the LUMINA_CONFIG environment variable at any path)

// C:/Users/<you>/.lumina/config.json — e.g. put everything on the D: drive
{
  "projectRoot": "D:/Photos/LuminaProjects",  // project folders (outputs/PSD/comparison images live here)
  "dataDir": "D:/Photos/LuminaData",          // default dir for case bank / style pack / caches
  "lutDir": "D:/PS/Presets/3DLUTs",           // optional: non-standard Photoshop install location
  "stylesFile": "D:/Photos/LuminaData/styles.json",  // optional: explicit path (otherwise <dataDir>/styles.json)
  "casesFile": "D:/Photos/LuminaData/auto-cases.json",
  "superResolution": { "enabled": true, "mode": "auto", "minLongEdge": 1600, "scale": 2 }
}

Full precedence: plugin config (cordis.patch.yml) > environment variable > user config file > built-in default. The user file is read when the plugin loads (restart/reload DSH after editing); the case bank and style pack themselves remain hot-reloaded on every call.

You can copy the shipped example: assets/config.example.json → <home>/.lumina/config.json, then change the paths to your own drives (the example puts projects and runtime data under D:/Lumina).

Quick start

First install: say hilumina (or "initialize"). The plugin self-checks dependencies/config, probes GPU VRAM / disk / runtimes, and renders the complete tier ladder (SUPIR (diffusion) → HAT/DAT → UltraSharp/Remacri → Real-ESRGAN → waifu2x → Lanczos) with status/size/adapter/license notes and the current engine chain, then always asks two explicit confirmations: the output folder (current value; change allowed) and the CUDA fallback model (SUPIR stays first in the chain). Missing tiers can be downloaded in the background with one reply. Pass onboard:true, forceAsk:true to add the write-confirmation step (first install / testing).

// Zero prompt: drop in a screenshot and let auto mode deliver
{ "source": "C:/Photos/MyScreenshot.png", "auto": true }

// Explicit recipe + title
{ "source": "C:/Photos/MyScreenshot.png", "recipe": "clean-premium", "title": "night-draft" }

// Add the cinematic style LUT
{ "source": "C:/Photos/MyScreenshot.png", "auto": true, "style": "cinema" }

// Append a parameter version to an existing project (no new folder)
{ "project": "20261024-214504-auto-canyon", "recipe": "atmospheric-depth",
  "params": { "vignette": 30, "tone": { "gamma": 0.88 } } }

A task returns the project folder, output PNG, PSD, comparison sheet, before/after metrics, QA checks, and warnings. If QA is not to your taste, append another version with project + params; every version is recorded.

Any image, automatically (game screenshots / real photos / blurry images)

auto:true is the universal automatic path: you never have to tell the plugin whether this is a game screenshot or a photo, or whether it is sharp — just drop an image in and the plugin assesses it and decides every step itself; the plan is written into the result and project.json.

The automatic pipeline is: assess → plan → execute → fallback

1. Assess (runs automatically for every auto call, no extra dependencies): resolution/pixel count, scale-normalised blur (measured at a fixed 1024px long edge, comparable across resolutions), noise, EXIF (camera info / orientation), UI-strip detection, clipping ratio, AI subject fraction.
2. Plan (built-in thresholds, overridable):

Condition	Automatic decision
Long edge < minLongEdge (default 1600) or blur < blurThreshold (default 0.010, and long edge ≤ maxBlurUpscaleEdge)	Super-resolve first (use the AI engine when available; otherwise fall back to built-in Lanczos automatically), then grade
Very large but soft image	Do not force an upscale; report a "consider AI restore" hint (you can manually use mode:"always", scale:1)
UI-strip detection confidence high	Treat as a screenshot and trim the bottom UI strip
No UI strip / photo-like aspect such as 4:3 or 3:4 / camera EXIF	Treat as a photo: keep the full frame and deliver with the gentle clean-premium (no game-oriented auto-* recipe, no case bank)
Highlight clipping ≥ threshold (screenshots/renders only)	Run HDR highlight reconstruction first
EXIF orientation ≠ 1 (phone portrait shots)	Normalise the orientation first, then process; the original image stays in input/

1. Execute: super-resolution (as needed) → HDR (as needed) → crop/grade → style; the project folder / comparison image / QA system is unchanged.
2. Fallback (quality-first chain): degrade automatically in the order CUDA dual-model → waifu2x Vulkan → ONNX/DirectML → Lanczos; if an engine is missing, fails to start, times out, runs out of memory, or returns a corrupt frame (e.g. the 2022 Real-ESRGAN ncnn build on RTX 50-series cards: exit code 0 but an almost-black output) → validation intercepts it and the next engine is tried automatically, ending with Lanczos (fallback:"lanczos"; change it to "skip" if you prefer); the main pipeline delivers an image in every case.

// One entry point: auto-detect screenshot/photo and auto-decide whether to upscale
{ "source": "D:/Photos/whatever.jpg", "auto": true }

// Force the photo flavour / keep the full frame
{ "source": "D:/Photos/portrait.jpg", "auto": true, "crop": { "mode": "none" }, "style": "cinema" }

// Override a decision (e.g. force the landscape draft):
{ "source": "D:/Photos/street.jpg", "auto": { "scene": "landscape" } }

ps_measure also returns the assessment (blur, noise, EXIF, photo/screenshot decision), so you can inspect an image before deciding how to process it.

Cropping (the crop argument, takes precedence over the automatic decision):

crop.mode	Behaviour	Good for
bottom-strip	Detect and trim the bottom UI strip; low confidence (<8px) is ignored automatically	Game/app screenshots
auto	Only trims when detection confidence is high, otherwise keeps the full frame (this is what photos use automatically)	Real photos (recommended)
none	Never crop, keep the full size	Photos / when the original size matters

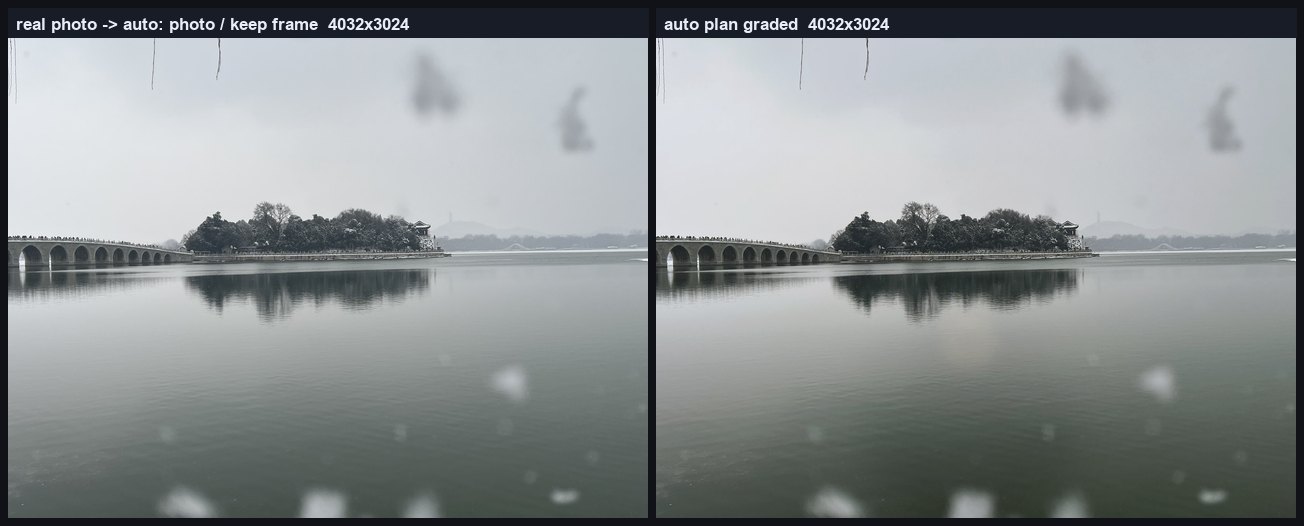

Measured (real 12MP phone photos on this machine, 3 shots):

• 2 landscape 4:3 shots + 1 portrait shot with EXIF rotation → all automatically classified as photo, full frames kept (4032×3024 / 3024×4032), no wrong cropping, no wrong super-resolution trigger;
• the same image downscaled to 900px and blurred → automatically classified as low-resolution + blurry, auto 2x output (with Lanczos as the fallback while no AI engine is installed);
• a faked "corrupt-frame AI engine" (exit 0, almost-black output) → output validation intercepted it and fell back to Lanczos automatically; output was normal.

• Layered mask coordinates (person ellipse, polygon, horizon/depth) are 0–1 relative values, reusable across aspect ratios and resolutions.
• Screenshots still use the original auto-character-* / auto-landscape-* recipes and the case bank, behaviour is unchanged (the existing auto regression baselines show Δ=0).

Auto mode (auto)

With auto: true, one call does:

1. crop the bottom screenshot UI strip (auto-detected, confidence reported in the result);
2. scene classification: Photoshop "Select Subject" AI selection + colour heuristics → character / landscape;
3. highlight reconstruction: when content-area highlight clipping is ≥2.5%, run assets/hdrsynth.py --sdr-mode neutral first to reconstruct highlights, then grade;
4. apply an accepted draft recipe (auto-character-hdr/natural, auto-landscape-hdr/natural);
5. produce the comparison image / PSD / metrics as usual, and write the classification basis into warnings.

{ "source": "C:/Photos/shot.png", "auto": { "style": "natural", "scene": "landscape", "hdrThreshold": 3.0 } }
{ "source": "C:/Photos/shot.png", "auto": { "recipe": "atmospheric-depth", "params": { "vignette": 24 } } }

Auto mode is a "first draft": it saves you from picking a recipe and tuning per image; refine with one follow-up call (append a version with project).

Auto self-heal

If a QA check fails in auto mode, Lumina computes a small parameter patch and re-runs once (a single retry only):

Failed check	Automatic patch
highlight_clip	Global output white point −4, bloom ×0.7; −3 per-layer white point
midtones / mean	Adjust tone gamma towards the target median (clamp 0.62–1.35)

The retry is recorded as a new version; warnings say "first pass failed xxx, auto-tuned and re-ran as vN". Disable with selfHeal:false.

Style case bank

• learn:true banks an accepted version: {source, auto:true, learn:true} or {project, learn:{version:N, note:"final"}};
• Banked content: image features (clip ratio / wash ratio / mean / median / subject fraction / scene), recipe, full parameters, style;
• Before an auto grade, a nearest-neighbour match is performed (hit when distance ≤0.85); on a hit, that run's recipe + parameters + style are reused, and the result shows "case-bank hit";
• The bank has two layers: a read-only seed bank assets/auto-cases.json (optional; the published package ships no private cases) + a writable user bank ~/.lumina/auto-cases.json;
• ps_state shows both case-bank paths and their counts.

Styles and LUTs

The style argument applies a 3D LUT (colour lookup table; pure colour mapping, no grain, no resolution change) after grading:

style	Source (Photoshop-built-in LUT)	Strength	Effect
natural (default)	—	0	No LUT
cinema	Kodak 5218 → Kodak 2383 print emulation	35%	Warm highlights, teal shadows
vivid	Kodak 5205 → Fuji 3510	35%	Richer warmth and contrast
still	Fuji REALA 500D → Kodak 2393	35%	Softer highlight roll-off
soft	Fuji ETERNA 250D → Kodak 2395	25%	The gentlest option

Key points:

• LUT files are not distributed with the plugin. They are the local Photoshop-installed .cube files, located automatically in this order: ① config key lutDir → ② env var LUMINA_LUT_DIR → ③ the Presets/3DLUTs under the Photoshop install path in the Windows registry → ④ %ProgramFiles%\Adobe\Adobe Photoshop*. If not found, that style is skipped with a warning and the rest of the pipeline is unaffected.
• Sharpness gate: after applying the LUT, sharpness is measured automatically; if it drops by more than 2%, the strength is lowered to 60% and retried, and if it still does not pass, that style is skipped (sharpness first).
• The PSD is the pre-LUT version; the final PNG already includes the LUT (work/style-vN.png keeps the post-LUT intermediate image).

Custom style packs (hot-reloadable, replaceable)

The 5 built-in styles are only a starting point; styles are replaceable data files, not hard-coded code:

1. Copy the example assets/styles.example.json to <home>/.lumina/styles.json (or <dataDir>/styles.json, or point the plugin config stylesFile at any path);
2. After editing, the next ps_grade call picks it up immediately (hot-reloaded by mtime) — no DSH restart needed; a style with the same name overrides the built-in one;
3. Styles marked with * in ps_state come from the user pack, and the stylesFile path is shown.

// ~/.lumina/styles.json
{
  "styles": {
    "teal-orange": {                    // any name; pass this string directly as ps_grade's style
      "label": "Teal & orange (bring your own grade)",
      "lut": "my-teal-orange.cube",     // bare file name: resolved from Photoshop Presets/3DLUTs or lutDir;
                                        // an absolute path like D:/MyLUTs/xxx.cube also works; null = no LUT
      "strength": 40,
      "params": {                       // optional: the style's own parameter preset, deep-merged over the recipe
        "vignette": 18, "tone": { "gamma": 1.02 }, "desat": 4
      }
    },
    "warm-matte": {                     // parameter-only style (a style with no LUT)
      "label": "Warm matte",
      "lut": null,
      "params": { "tone": { "gamma": 0.9, "ob": 4 }, "vignette": 34, "desat": 4 }
    }
  }
}

• lutDir can also be written inside a single style (applies only to that style), e.g. "lut": "x.cube", "lutDir": "D:/MyLUTs".
• The style argument is a free string: a new style name works without a restart; a wrong name produces an error listing all currently available styles.
• Style parameters are merged after recipe/case parameters, which suits "same recipe, different flavour"; the run record (project.json's params/style) is fully retained and reproducible.

HDR highlight reconstruction

In 8-bit screenshots, highlight detail beyond/near display white is irreversible in the original data, but can be credibly reconstructed from the neighbourhood:

python assets/hdrsynth.py --input original.png --out-dir out/hdr --crop-bottom 149

Outputs hdr-view.png (SDR look), RGB16 linear/PQ HDR, gainmap.png, headroom.png, meta.json. Auto mode calls it automatically when the clip ratio is ≥ the threshold; you can also pre-process manually and then pass the result to ps_grade.

Super-resolution preprocessing (optional)

When the source resolution/sharpness is insufficient, run a super-resolution preprocessing pass before grading, then continue with HDR reconstruction and grading (order: super-resolution → HDR → recipe).

Quality first (default behaviour): when several engines are configured they are tried from the highest priority down — CUDA dual-model (photo x4plus / screenshot anime_6B) → waifu2x-ncnn-vulkan → ONNX/DirectML → built-in Lanczos; a missing, failing, timing-out or corrupt-frame engine is skipped for the next one, and only then do we fall back to Lanczos. Grading is never blocked.

Measured on an RTX 5080 with waifu2x-ncnn-vulkan 20250915 (MIT, Vulkan): 3440×1578 → ×2 in ~2.2 s, a 900×675 photo → ×2 in ~1.1 s; the photo/screenshot model is switched automatically via {sourceKind} (photos use models-upconv_7_photo, screenshots/anime use models-cunet).

Two sources:

Mode	Description
External AI upscaler (command)	Hook up any command-line upscaling tool (Real-ESRGAN / waifu2x / Topaz, ...). The plugin only calls it via a template and checks the output; it bundles no models; models and licences are your responsibility
Built-in Lanczos (default fallback)	When no external tool is available, use Python Pillow high-quality resizing. Deterministic, zero-dependency, but does not create detail out of thin air (not AI)

Trigger (mode): auto = trigger automatically when the long edge < minLongEdge or sharpness < minSharpness; always = trigger every time. In auto mode the universal assessment decides: with superResolution.enabled on, low-resolution/blurry images are upscaled automatically (thresholds above in "Any image, automatically"); with it off, you only get a hint and nothing is silently upscaled.

// One call: force a 2x upscale
{ "source": "D:/Photos/lowres.jpg", "preprocess": {
    "superResolution": { "enabled": true, "mode": "always", "scale": 2 } } }

// Hook up a local Real-ESRGAN (Windows ncnn build example)
{ "source": "D:/Photos/lowres.jpg", "preprocess": {
    "superResolution": {
      "enabled": true, "mode": "auto", "minLongEdge": 1600, "scale": 2,
      "command": "C:/Tools/realesrgan-ncnn-vulkan/realesrgan-ncnn-vulkan.exe",
      "args": ["-i", "{input}", "-o", "{output}", "-n", "realesrgan-x4plus", "-s", "{scale}"]
    } } }

// Quality-first engine chain (configure once, degrade automatically when needed)
{ "superResolution": {
    "enabled": true, "mode": "auto", "scale": 2, "fallback": "lanczos",
    "engines": {
      "cuda":   { "priority": 100, "label": "CUDA Real-ESRGAN",
                  "command": "C:/Tools/ai/venv/Scripts/python.exe",
                  "args": ["C:/Tools/ai/upscale_torch.py", "--input", "{input}", "--output", "{output}",
                            "--scale", "{scale}", "--kind", "{sourceKind}", "--model-dir", "C:/Tools/ai/models"] },
      "vulkan": { "priority": 50, "label": "waifu2x Vulkan",
                  "command": "C:/Tools/ai/waifu2x/waifu2x-ncnn-vulkan.exe",
                  "args": ["-i", "{input}", "-o", "{output}", "-s", "{scaleInt}", "-n", "2", "-g", "0"] },
      "onnx":   { "priority": 30, "label": "ONNX/DirectML",
                  "command": "C:/Tools/ai/ort_upscale.cmd",
                  "args": ["--input", "{input}", "--output", "{output}", "--scale", "{scale}", "--kind", "{sourceKind}"] }
    } } }

Enable globally (auto mode then only triggers on low-res images): write "superResolution": { "enabled": true, "mode": "auto", "minLongEdge": 1600, "scale": 2 } in the user config ~/.lumina/config.json.

Option	Default	Description
enabled	false	Master switch; an explicit preprocess.superResolution can enable it temporarily
mode	auto	auto / always
scale	2	Target magnification (clamped by maxLongEdge)
minLongEdge	1600	In auto mode, images whose long edge is below this trigger
minSharpness	0	When >0, low-sharpness images trigger too (sharpness comes from metrics)
maxLongEdge	8192	Final long-edge cap, avoiding a 4K→16K memory blow-up
command / args	empty	External upscaler executable and argument template, supporting {input} {output} {scale} {targetLongEdge}; when engines is set this is the highest-priority engine
engines	empty	Quality-first engine chain: {name:{command,args,priority,label}}; tried from the highest priority down, failing engines degrade automatically; top-level command acts as a priority-1000 engine
timeoutMs	600000	External command timeout
fallback	lanczos	When the external engine fails or returns a corrupt frame: lanczos (keeps the upscale intent) or skip (leave the image untouched)

Corrupt-frame validation: after the external engine runs, output size/luminance/contrast are compared with the input. Known case: the 2022 Real-ESRGAN ncnn build on NVIDIA 570+ drivers (including RTX 50-series) exits 0 but returns an almost-black frame — validation intercepts it and falls back to Lanczos automatically, so a black image is never delivered as the result.

Low-spec / compatibility (quality first by default, automatic degradation when an engine fails; lower-spec machines just use the same engines interface):

Machine	Recommendation
No discrete GPU / do not want to install anything	Configure nothing: disabled by default, or when enabled use the built-in Lanczos (zero-dependency, deterministic, adds no detail)
Integrated/any Vulkan GPU	waifu2x-ncnn-vulkan 2025+ (MIT, -g 0 GPU; built-in denoise levels, good for screenshots/anime-style art)
Want AI on CPU too	Same engine in -g -1 CPU mode + small -t 200 tile; only recommended for images ≤2000px — slow but usable
≤4GB VRAM	Smaller tile (-t 200) + a tighter maxLongEdge
RTX 50-series	Must use an engine built in 2025 or later (the 2022 Real-ESRGAN build returns corrupt frames, caught by validation); or point command at your own ONNX Runtime DirectML script (not bundled — bring your own script/model)

Project record: the super-resolution result goes to work/sr-vN/sr-view.png, input/ always keeps the original; project.json gains a superResolution record (method/scale/reason/sizes), and the result reports "source → upscaled → output" resolutions; the QA "before" baseline uses the post-super-resolution, pre-grading image, so sharpness/tone evaluation still only measures the grading step.

Layer masks

The following recipes all carry params.layers.mask layering (split into subject/background, or fore/mid/back layers, apply different parameters, then composite); the mask strategy is written in params.layers.mask.mode:

mode	Split basis	Good for
person	AI subject selection ∩ person region (ellipse or hand-drawn polygon)	Person vs background
subject	AI subject selection	Foreground object vs background
horizon	Horizontal-line split (horizon as a 0–1 height ratio + feathering)	Landscape foreground/background
polygon	Hand-drawn polygon (absolute pixels or normalised coordinates) + feathering	Precise manual selection
alpha	The alpha channel of an RGBA PNG as a per-pixel soft mask	Hair strands / semi-transparent edges
depth	Two widely feathered horizontal lines split fore/mid/back layers (optional midAlphaFile makes the midground = person)	Atmospheric perspective / big scenes
none	No layering	Single-layer grading

Layered modes additionally output work/mask-vN.png (mask preview) and region metrics (subject sharpness gain, background stability).

Project folder

One directory per task (under projectRoot by default):

<projectRoot>/<YYYYMMDD-HHmmss>-<slug>/
  input/original.<ext>        read-only copy of the original image
  work/grade-vN.jsx           the ExtendScript actually executed this run (reproducible)
  work/<recipe>-vN.psd        PSD working file (pre-LUT)
  work/mask-vN.png            layered mask preview (layered recipes)
  work/hdr-vN/hdr-view.png    HDR highlight reconstruction result (when triggered)
  work/sr-vN/sr-view.png      super-resolution preprocessing result (when triggered)
  work/oriented-vN.png        EXIF-orientation-normalised working image (phone portrait, when triggered)
  out/<recipe>-vN.png         final output (lossless PNG, original or upscaled resolution)
  metrics/before-vN.json      pre-processing metrics (baseline is "post-SR, pre-grade" when upscaled)
  metrics/after-vN.json       output metrics
  metrics/region-vN.json      region metrics (layered recipes)
  compare-vN.png              before/after comparison image (full preview + 1:1 native pixel detail)
  project.json                task metadata + full version history (incl. auto/preprocess/superResolution/style)
  log.jsonl                   run log
  README.txt                  directory notes

Resolution behaviour: the width always equals the source-image width; the height = source height − the auto-detected bottom UI strip (real photos should use crop:{"mode":"auto"} or none). When super-resolution triggers, the final output is "content area × super-resolution factor"; input/ still keeps the original size.

Recipe reference

recipe	Label	Description
clean-premium	Clean premium	Pull highlights back, deepen slightly, neutral white balance, subject sharpening, light vignette; default for screenshots/4K
clean-natural	Natural and clear	The most restrained: highlight recovery + light sharpening only, no vignette; when you want to keep the original feel
cinematic-film	Cinematic	Deep midtones, matte blacks, cool shadows / warm highlights, strong local contrast; stylized
subject-pop	Subject pop (separation)	Subject brightened/warmed/sharpened + background darkened/cooled, auto-composited; person mask
landscape-depth	Foreground/background separation (depth)	Foreground deepened/warmed/sharpened + background brightened/cooled, horizon mask
dark-cinematic	Dark cinematic	Lift shadows, control high saturation, light split toning; dark / high-contrast scenes
subject-manual	Subject layering (manual outline · default)	Hand-drawn → hard trace → pixel-level tiled polygon precise mask
subject-alpha	Subject layering (channel mask · soft alpha)	Per-pixel soft-alpha channel mask, hair strands / semi-transparent edges
hdr-pop	HDR look (high-dynamic-range simulation)	Warmer/brighter highlights, deeper shadows, richer colour, stronger local contrast
atmospheric-depth	Atmospheric perspective (fore/mid/back layers)	Graduated three-layer depth + haze, big scenes/landscapes
depth-subject	Subject × atmospheric perspective (three layers)	Foreground band + subject soft alpha + background, hybrid layering
auto-character-hdr	Auto · character HDR (draft)	Used by auto: AI subject layering + HDR look
auto-character-natural	Auto · character natural (draft)	Used by auto: AI subject layering + natural tone
auto-landscape-hdr	Auto · landscape HDR (draft)	Used by auto: atmospheric perspective + dense HDR
auto-landscape-natural	Auto · landscape natural (draft)	Used by auto: atmospheric perspective + natural depth
hdr-photo	HDR look (universal layered)	Picks the region mask by content (people -> AI subject, landscapes -> horizon/depth), brightens/warms the sky, crushes/cools the foreground, wide feather
hdr-photo-cinematic	HDR look (sunset, highlight-safe)	Sunset/backlight: white-point compression protects clouds, warm highlight glow, cool shadow separation, strong contrast + vignette
region-sky	Region grading (sky colour domain)	Colour-range soft alpha selects sky/cool colours, brightens/warms the selected region and darkens the rest
region-zones	Multi-zone grading (person / plants / highlight flowers)	AI person + green colour range + luminance highlight masks, each with its own params; person zone runs last and colour zones subtract the pixel-level person alpha

All parameters can be deep-merged and overridden with params; QA thresholds are written in each recipe's checks (highlight clip cap, sharpness gain floor, p50/mean ranges, subject/background region sharpness, output size).

Architecture

DSH host process (normal user permissions, not subject to the shell sandbox)
  └─ lumina-dsh (index.js)
       ├─ lib/ps-session.js   ←→ PowerShell COM helper (resident, JSON line protocol)
       │                             └─ Photoshop.Application (hidden resident)
       ├─ lib/jsx.js          reads assets/pipeline.jsx to build ExtendScript
       ├─ lib/ps-locate.js    detects Photoshop install and Presets/3DLUTs
       ├─ lib/recipes.js      reads assets/recipes.json + user style packs (hot-reloaded)
       ├─ lib/cases.js        auto case bank (seed + user layers)
       ├─ lib/assess.js       universal auto assessment: screenshot/photo/render + low-res/blurry → upscale plan
       ├─ lib/superres.js     super-resolution preprocessing: trigger decision + external AI command / built-in Lanczos + corrupt-frame validation
       ├─ lib/user-config.js  local user config (<home>/.lumina/config.json)
       ├─ lib/grade.js        project orchestration: assessment/create dirs/preprocess/process/metrics/comparison/QA/versions
       └─ lib/py.js           ←→ Python (numpy + Pillow) metrics/assessment/reconstruction/LUT/super-resolution

• Must run in the host process: the DSH shell sits in a low-integrity sandbox and cannot activate Photoshop's COM; running the plugin in the host process is the prerequisite for driving PS.
• No DSH restart needed for tuning: assets/recipes.json, assets/pipeline.jsx, and assets/*.py are read from disk on every call; style packs and the case bank are hot-reloaded by mtime; only changes to index.js / lib/*.js require a restart.
• Many ExtendScript adjustment interfaces in PS 2025 silently no-op (adjustCurves, Hue/Saturation, Invert, ...); pipeline.jsx only uses APIs that were verified one by one on greyscale test images and actually change pixels.
• CJK paths in UTF-8 and Python→Node stdout UTF-8 are handled; after a PS crash/force-kill, the next call restarts it automatically and retries once.

Known limitations

• Once 8-bit screenshot highlights clip (e.g. a fully white sky), the original detail is irreversible; hdrsynth.py infers/paints rather than restores, and does not guarantee semantic correctness.
• ps_grade supports Windows + Adobe Photoshop only; ps_measure / the vision tools and metric computation are cross-platform.
• Style LUTs need the local Photoshop-bundled Presets/3DLUTs; a trimmed Photoshop install without LUT files will skip styles.
• LUTs are not written into the PSD (the PSD is the pre-LUT version); the final PNG is the version with the LUT.
• Super-resolution is only preprocessing: the built-in Lanczos does not add real detail; the quality/licence of external AI super-resolution depends on the tool you hook up — the plugin bundles no models and makes no semantic guarantee about super-resolution results. A missing/failing engine or a corrupt frame falls back automatically and never blocks output.
• Very large but soft images are not auto-upscaled (only a "consider AI restore" hint), avoiding a pointless 12MP→48MP blow-up; only small/low-resolution images are auto-upscaled.
• Phone-photo EXIF orientation is auto-normalised (portrait shots are no longer processed sideways), provided the file still carries the orientation tag; images with completely stripped metadata can only be processed as raw pixels.
• Auto classification is heuristic: if a complex image is misclassified as a screenshot (or vice versa), override it explicitly with crop / auto.scene / recipe.
• The depth mask only layers by frame height; near/far objects at the same height cannot be distinguished; use polygon / alpha for intricate scenes.
• AI "Select Subject" may pull neighbouring objects into the subject in complex scenes (the result reports the AI selection area as a hint); narrow it with a hand-drawn polygon.
• Auto mode is a first draft; when it is not satisfying, append versions with params + project and keep iterating.
• Cold-starting Photoshop takes ~6–10 seconds; warm, each image is ~5 seconds (4K images take longer; super-resolution adds extra Python processing time and disk usage).

Development

npm test                        # fast smoke (26 checks, no PS/Python needed): plugin load/6 tools/config and case bank/style pack/universal auto assessment/super-resolution and corrupt-frame decisions/release hygiene
node test/integration.mjs "C:/path/shot.png"   # full-pipeline smoke test (needs local Photoshop)
node test/acceptance.mjs acceptance.json       # regression acceptance (against baseline metrics; includes real-photo auto classification/low-res auto super-resolution/corrupt-engine fallback/custom style local checks)
# or: LUMINA_ACCEPTANCE_MANIFEST=path/to/acceptance.json npm run test:acceptance

See CONTRIBUTING.md for details. Recipes, LUTs, and bug fixes are welcome.

Credits

Development of this plugin was pair-programmed with an AI coding agent running on DeepSeek Harness: architecture, Photoshop pipeline, test suite and documentation. Model: DeepSeek V4.1 flash 1017 (deepseek-flash).

License

MIT License, see LICENSE.

Adobe and Photoshop are trademarks of Adobe Inc. This project is not affiliated with Adobe and distributes no Adobe LUT / Photoshop binary files.
