dsh-plugin-mindmap

MindMap — a DeepSeek Harness plugin that distills a conversation into persistent storylines and renders them as an interactive map.

中文文档 | English

Highlights

1. Auto-organizes conversation logic and identifies key forks in thinking. Every storyline is one independent topic; rule-first, LLM-fallback classification runs incrementally — each new message is decided once (append / fork / new), never re-clustered in bulk.
2. Click a node to revisit any past Q&A — efficiently distilled. Each node opens a detail card with the question, one-line summaries of tool calls, and the answer. Long storylines fold into multiple rows at semantic breakpoints, with bold labels marking the turns.
3. Auto-distilled, persisted development memory. The classification is stored in DEV_LOG.json at the workspace root. Restart the project or switch agents — the map reloads instantly with 0 LLM calls and keeps its memory.

Features

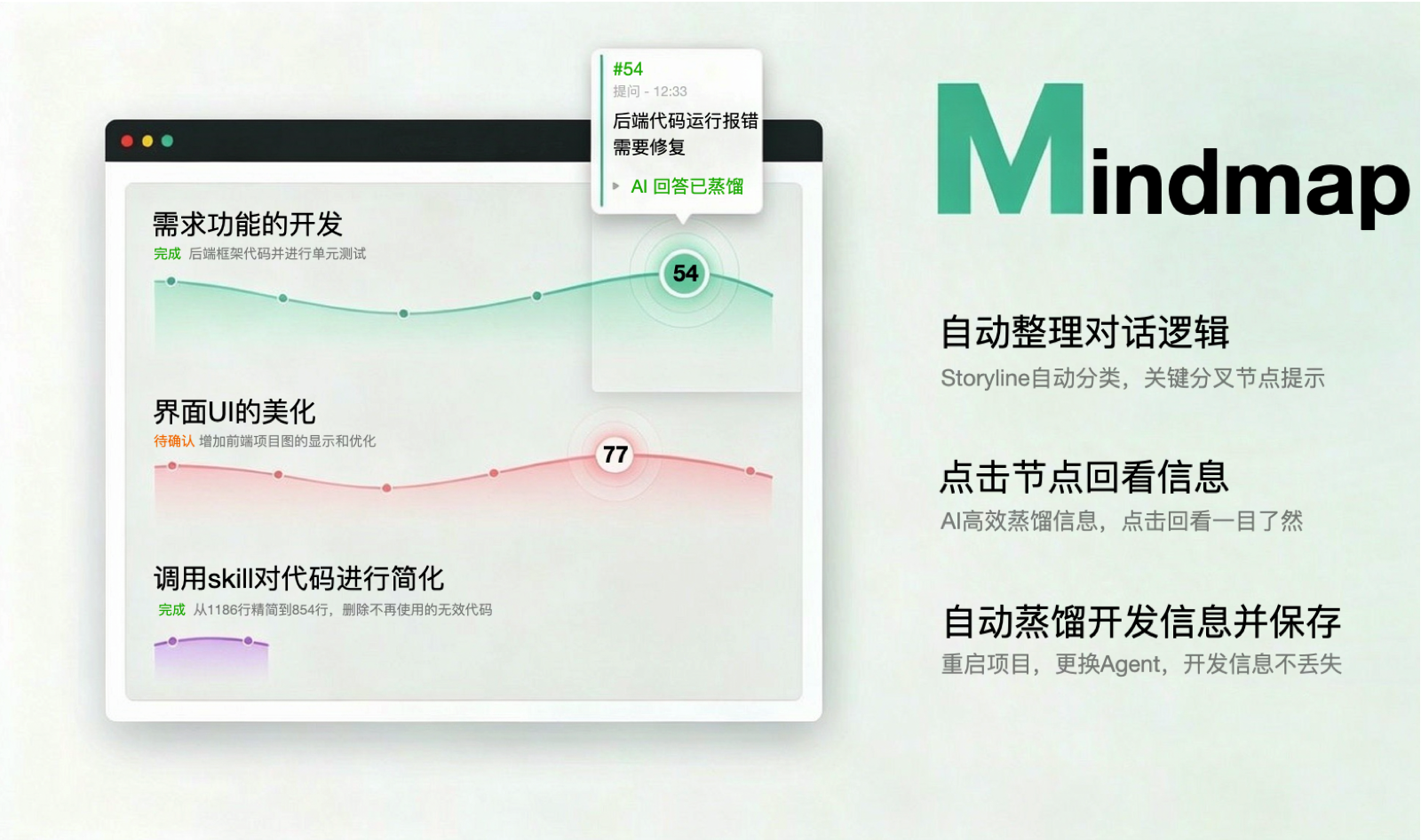

• Storyline map tab (MindMap in the session view): one row per topic, bezier gradient ribbons, six node shapes (question / decision / feature / bugfix / refactor / research).
• Status badges under every title: 进行中 (ongoing, green) / 有阻塞 (blocked, amber) / 已完成 (done, blue) / 讨论结束 (discussion ended, gray), followed by a one-line description.
• Instant open: DEV_LOG.json exists and its format version matches → no rebuild, 0 LLM; new messages sync in the background and refresh automatically.
• Background progress: full rebuilds show a progress bar; incremental syncs show a small hint.

Install

Prerequisite: DeepSeek Harness installed (dsh command available) with a web profile in use.

From GitHub (current)

dsh plugin --profile web add github:ImCabbage/dsh-plugin-mindmap

1. This installs the package into the profile with pnpm and adds it to the profile's bundle list automatically (the package declares dsh.bundle).

2. First git-source install: pnpm asks to allow this package's prepare build script (it builds lib/ on install). Follow the printed hint and add the key to $DSH_HOME/profiles/web/pnpm-workspace.yaml:

   allowBuilds:
     - dsh-plugin-mindmap


   Then run the install command again.

3. Restart web: stop the current dsh web process and run dsh web again.

4. Open any session — a MindMap tab appears in the view tab bar.

From npm (once published)

dsh plugin --profile web add dsh-plugin-mindmap

Restart dsh web afterwards.

Local development

dsh plugin --profile mindmap-test add .

(A separate test profile keeps your daily web profile untouched.)

Usage

1. Chat normally; MindMap classifies in the background (progress is shown inside the tab).
2. Open the MindMap tab:
   • each colored ribbon is one independent topic, nodes ordered left-to-right by time;
   • click a node: focus its storyline and open the detail card (question / tool-call summaries / answer);
   • click empty space: clear focus;
   • the small line under each title is its current status (badge + description).
3. The first open (or a DEV_LOG format upgrade) runs one full distillation with a progress bar; after that every open is instant.

How it works

• Host half (src/host): the MindMapGateway service (Typert remotes mindmap/graph and mindmap/progress) reads the session log, classifies incrementally (rules + LLM), reads/writes DEV_LOG.json, and runs background sync tasks with progress.
• Client half (src/client): registers the MindMap tab in the conversation.view slot; fetches the graph through ctx.remote, renders instantly from DEV_LOG, and polls background progress for auto-refresh.
• RPC: Typert protocol, with manifests hand-written in src/host/typert.host.js (host side) and src/host/typert.remote-client.js (client mount side), strict zod codecs.

Develop

npm install
npm run build        # esbuild: lib/index.js (host) + lib/client.js (browser bundle)

Rebuild after changes, then restart the test profile's dsh web.

License

MIT
