Green-hats/dsh-devin2api

---

[!IMPORTANT] This plugin is the client half. devin-2api-lite owns the Devin protocol, the model catalog, the quota snapshot and your upstream token. The plugin only adapts DeepSeek Harness' model API to the gateway's OpenAI-compatible Chat Completions endpoint.

Start the gateway first: the plugin advertises no models and cannot stream without it.

dsh-devin2api registers the provider route devin2api inside DeepSeek Harness. It reads the gateway catalog from GET /v1/models, streams POST /v1/chat/completions as DSH StreamChunks, and adds a settings page, per-model visibility switches, and a daily/weekly quota pill to the Web UI.

No build step. No runtime dependencies beyond the packages DSH already provides.

Why

Area	What you get
Catalog	/v1/models cached for refreshMinutes, single-flight, graceful fallback to a configured model list
Chat	Streaming text, reasoning_content, tool calls, usage, mapped finish reasons
Reasoning	Per-model efforts from reasoning_efforts; high is the default when advertised
Images	Current-turn images as base64 data URLs, resized and byte-capped; history becomes placeholder text
Control	models allowlist and per-model switches (modelVisibility) with an all-off safety fallback
Settings	Editable row in Settings → Models and a dedicated Settings → Devin2API page
Quota	Daily/weekly remaining percentage in the composer; click to bypass the gateway cache
Ops	Stable error codes for auth, quota, timeout, aborts and image budgets; optional local debug log

Gateway endpoints this plugin uses

Endpoint	Caller	Credential
GET /healthz	settings panel	none
GET /v1/models	catalog, visibility, model discovery	Host: Bearer; browser: no header
GET /v1/quota	quota pill and panel	browser: no header
POST /v1/chat/completions	every model call	Bearer
POST /__clientlog	optional diagnostics	none; local only

The browser reads the three GET endpoints directly (and the gateway must allow CORS on them, as lite does). It never carries the API key — see Web UI.

Requirements

• DeepSeek Harness 0.2.x (verified on 0.2.1-rc.3). Peer packages: @deepseek-ai/dsh-llm >= 0.1.5-rc.1, @deepseek-ai/schemastery >= 3.18.0.
• Node.js ^22.19.0 || >=24.0.0.
• devin-2api-lite with /v1/quota and read-only CORS enabled (both are in current lite releases).
• The Host attachments service (present in the default composition) for image input.
• Gateway reachable from the Host and from the browser that renders the settings page and quota pill.

Quick start

1. Start the gateway

git clone https://github.com/Green-hats/devin-2api-lite.git
cd devin-2api-lite
cp config.example.yaml config.yaml     # set devin.token
go run ./cmd/devin-2api -config config.yaml

curl -s http://127.0.0.1:18089/healthz
# {"status":"ok"}

See the lite quick start for tokens, Docker and configuration.

2. Install the plugin

# from GitHub
dsh plugin --profile desktop add github:Green-hats/dsh-devin2api

# or from a local checkout
dsh plugin --profile desktop add /absolute/path/to/dsh-devin2api

Restart the profile (or reload the plugin) after installing. The bundle patch inserts this row:

- id: devin2api
  name: dsh-devin2api
  config:
    providers:
      devin2api:
        displayName: Devin2API
        baseURL: http://127.0.0.1:18089/v1
        apiKeyEnv: DEVIN2API_API_KEY
        enabled: true
        images: true
        models: []

3. Point it at the gateway

Either edit the row in Settings → Models → Devin2API, or override the same id in $DSH_HOME/profiles/<profile>/cordis.patch.yml:

- id: devin2api
  config:
    providers:
      devin2api:
        baseURL: http://127.0.0.1:18089/v1
        apiKeyEnv: DEVIN2API_API_KEY

4. Pick a model

Open /model in DSH and choose Devin2API. The catalog is the gateway's /v1/models; a model switch or a draft endpoint change is reflected by the provider directory and model discovery.

5. Verify

curl -s http://127.0.0.1:18089/v1/models | head -c 200
curl -s http://127.0.0.1:18089/v1/quota

Configuration

All plugin configuration lives under providers.devin2api so that the Models page can address one provider object (settingsPath: ["providers", "devin2api"]).

- id: devin2api
  name: dsh-devin2api
  config:
    providers:
      devin2api:
        displayName: Devin2API
        baseURL: http://127.0.0.1:18089/v1
        apiKeyEnv: DEVIN2API_API_KEY
        apiKey: ''
        enabled: true
        models: []
        modelVisibility: {}
        images: true
        contextWindow: 262144
        maxTokens: 128000
        refreshMinutes: 5
        requestTimeoutMs: 300000
        imagePixelBudget: 4194304
        imageMaxBytes: 1048576
        maxRequestImageBytes: 20971520

Field	Default	Notes
displayName	Devin2API	Provider name in the model selector and provider list
baseURL	http://127.0.0.1:18089/v1	Gateway root including /v1; trailing slashes are tolerated
apiKey	''	Direct key; role('secret') so the settings document redacts it. Prefer apiKeyEnv
apiKeyEnv	DEVIN2API_API_KEY	Environment variable read at request time when apiKey is empty
enabled	true	Mount-time gate: changing it requires reloading the plugin or restarting the profile
models	[]	Empty advertises every gateway model. Non-empty is an allowlist of ids or { id, name } objects
modelVisibility	{}	Per-model switch written by the settings page; false hides a model (all-off falls back to the full catalog)
images	true	Declares image input for vision-capable models; false forces text-only projection
contextWindow	262144	Reported to DSH because /v1/models does not disclose limits
maxTokens	128000	Default output cap sent as max_tokens
refreshMinutes	5	Catalog cache TTL (minimum 1 minute)
requestTimeoutMs	300000	Per-request timeout, including the stream
imagePixelBudget	4194304	Pixel budget used to resize an image before encoding
imageMaxBytes	1048576	Per-image byte cap after encoding
maxRequestImageBytes	20971520	Total base64 data-URL characters allowed in one request

DEVIN2API_BASE_URL is reported to the Models page as the provider's endpoint environment hint; the adapter itself resolves baseURL from the config.

Hot updates

Every editable field except enabled is declared .volatile(), so the settings page writes take effect on the running adapter without a remount. enabled is evaluated once when the plugin mounts; changing it from false to true (or the reverse) requires a plugin reload. See Known limitations.

Web UI

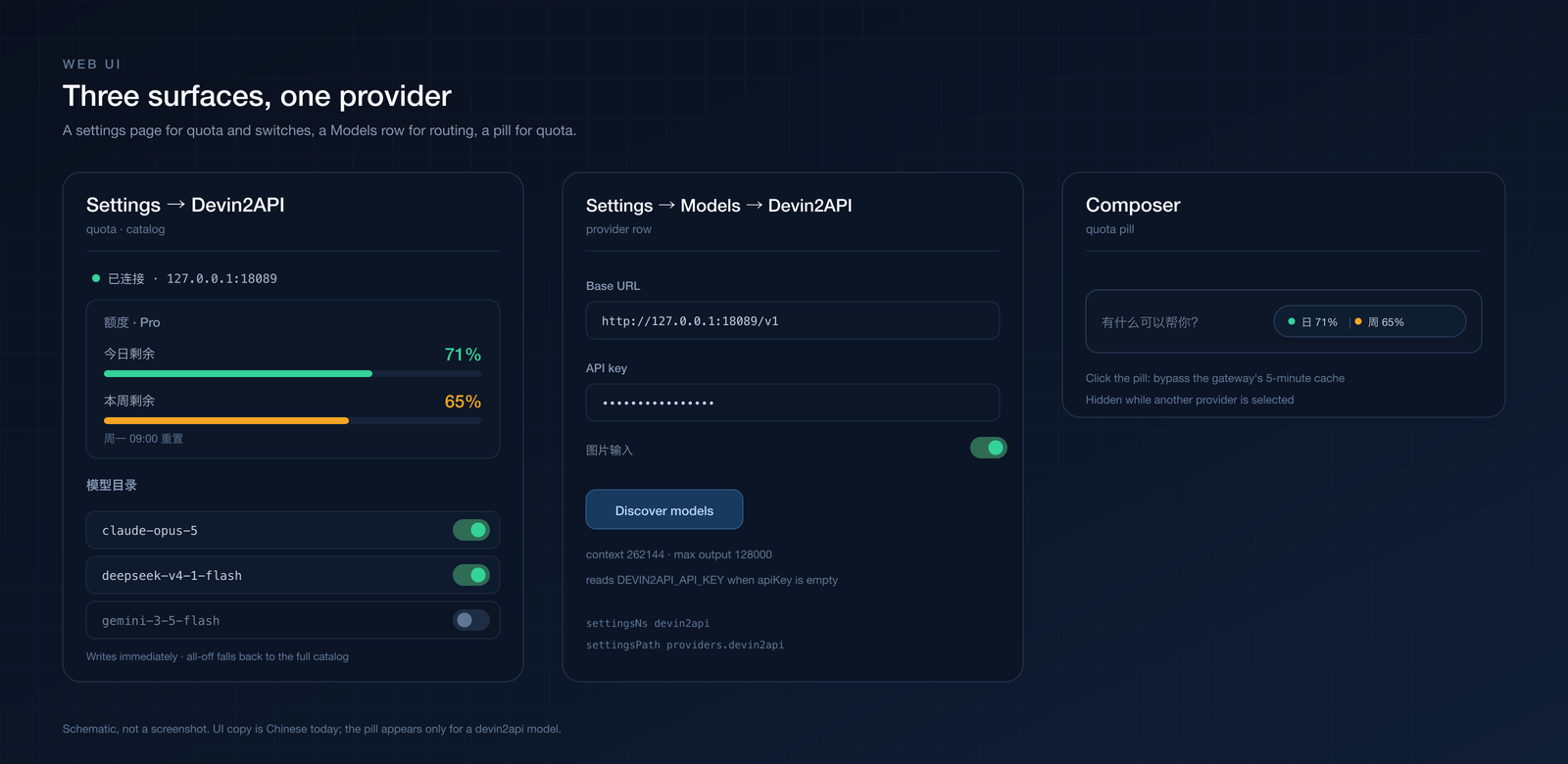

Schematic of the three surfaces; the UI copy is Chinese today.

Settings → Devin2API (own page):

• gateway connection state and resolved root URL;
• today's and this week's remaining quota, reset times and stale-snapshot marker;
• the model catalog with search, one switch per model, all on / all off, and refresh.

Settings → Models → Devin2API (provider card):

• editable baseURL, API key, image capability and model discovery. The row lives in the shared Models page; the plugin does not duplicate it in its own panel.

Composer quota pill (conversation.input.right):

• renders only while the session's selected provider is devin2api;
• polls GET /v1/quota every 60 seconds and is hidden when the endpoint is unavailable;
• click to request ?fresh=1 (lite bypasses its 5-minute cache);
• shows 日 71% │ 周 65% today; UI copy is Chinese-only for now (see Known limitations).

Browser and credentials

The panel and pill run in the renderer process and call the gateway directly. They send no Authorization header, so with auth.api_key set on the gateway:

• chat still works (the Host sends Bearer);
• GET /v1/models and GET /v1/quota return 401, so the panel shows no catalog and the pill disappears.

Keep auth.api_key empty for a local gateway, or terminate CORS/auth in a proxy you control. GET /healthz and POST /__clientlog are public in lite; keep the gateway bound to loopback.

Model catalog

• The catalog is fetched with GET /v1/models, cached for refreshMinutes, and refreshed in a single flight.
• On a transient failure the adapter serves the last snapshot; without a snapshot it falls back to models, or reports EMPTY_CATALOG when both are empty.
• models is an allowlist. If none of its ids exist in the gateway catalog, the adapter warns and advertises the whole catalog instead of silently hiding everything.
• modelVisibility is applied after the allowlist. If every remaining model is switched off, the full remaining list is advertised so the selector never empties; the panel explains this fallback.

GET /v1/models does not disclose context windows or output limits, so contextWindow / maxTokens are per-provider configuration values.

Images

• Only the current turn is uploaded. The boundary is the last user message: images in that message and in tool results after it stay; earlier images become [Image omitted from history]. This keeps vision working across tool loops without re-uploading the whole conversation.
• Each image is resized within imagePixelBudget and capped at imageMaxBytes; a request whose data URLs exceed maxRequestImageBytes fails with IMAGE_BUDGET instead of sending a truncated body.
• images: false, a model with supports_images: false, or a missing attachments service makes DSH project images to text before dispatch; the gateway never receives an unsupported image.
• Requires the Host attachments service (present in the default composition).

Protocol mapping

Request

DSH input	OpenAI Chat Completions request
options.system + leading system messages	one system message
developer message	system message
mid-history system message	system message (preserved, not dropped)
user text / images	string, or [{ type: "text" }, { type: "image_url", image_url: { url } }]
assistant text / tool calls	{ role: "assistant", content, tool_calls } with JSON-string arguments
tool result	{ role: "tool", tool_call_id, content }
tools	OpenAI function tools; deferLoading entries are skipped
maxTokens	max_tokens
reasoningEffort	reasoning_effort
temperature / stop	temperature / stop
—	stream: true, stream_options: { include_usage: true }

[!NOTE] Current lite releases fix sampling (max_tokens=128000, temperature=1, top_p=0.95, top_k=40) and ignore client values; this plugin still forwards them for gateways that honor them. See lite caveats.

Stream

DSH chunk	Upstream source
block-start / block-end	one per reasoning, text or tool-call block
reasoning-delta	choices[0].delta.reasoning_content
text-delta	choices[0].delta.content
tool-call-delta	choices[0].delta.tool_calls[].function.arguments
usage	final usage (prompt_tokens, completion_tokens, total_tokens, cached tokens)
finish	finish_reason: length → max-tokens, tool_calls / function_call → tool-calls, otherwise stop

Error codes

Code	Meaning
AUTH	401 / 403 from the gateway
QUOTA	429
INVALID_REQUEST	400 / 413 / 422
TIMEOUT	504 or the per-request timeout fired
ABORTED	The caller cancelled the stream or request
TRANSPORT	Gateway unreachable, connection dropped mid-stream, or unreadable response
SERVER	Any other HTTP status
IMAGE_BUDGET	The request's images exceed maxRequestImageBytes
IMAGE_UNAVAILABLE	An attachment could not be read
EMPTY_CATALOG	/v1/models returned no usable entries
EMPTY_RESPONSE	The stream ended without content or a finish reason
UPSTREAM_ERROR	The gateway sent an error chunk

Cancellation is reported as ABORTED (not TRANSPORT), so the harness can distinguish a user stop from a failure.

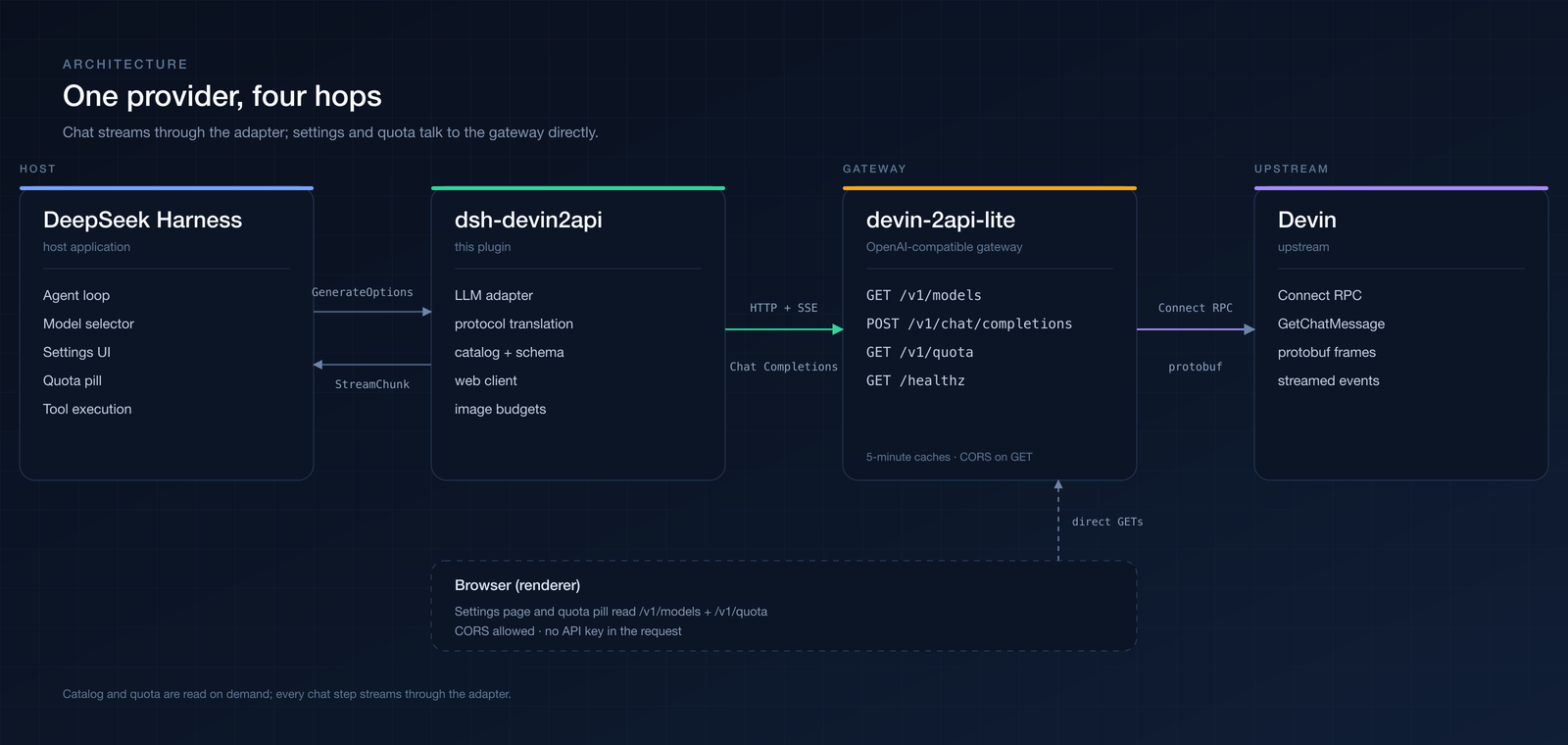

Architecture

File	Role
lib/index.js	Host adapter: registration, catalog, stream, images, discovery, settings policy
lib/protocol.js	Message/tool/SSE translation; no DSH imports
lib/catalog.js	Catalog and quota parsing, visibility, error mapping, volatile unwrapping
lib/schema.js	Config schema; every editable field is .volatile()
lib/client.js	Web UI: settings page, catalog switches, quota pill
cordis.patch.yml	Profile patch inserted by the bundle
test/	node:test suite; test/register.mjs + test/fixtures/dsh-llm make it runnable outside DSH

Troubleshooting

Symptom	Check
cannot reach the gateway	curl /healthz, baseURL, firewall; the Host must reach it too
AUTH on chat	apiKey / apiKeyEnv; lite's auth.api_key must match
Empty model selector	curl /v1/models; set models as a fallback; reload the plugin
Images become placeholder text	Expected for history. Check images, supports_images, attachments, and the image budgets
Settings page says unavailable	The namespace needs volatile fields; check the Host log and POST /__clientlog
Model switches do nothing	Settings are read-only, or every model is off and the host falls back to the full catalog
Quota pill missing	Session is not on a devin2api model; gateway down; CORS blocked; auth.api_key set
Client render errors	POST /__clientlog; lite appends browser and Host reports to $TMPDIR/dsh-devin2api-client.log

To remove the plugin, remove the bundle from the profile (dsh plugin --profile desktop remove dsh-devin2api) and restart; the inserted row and its settings go with it.

Known limitations

• No replay state. Reasoning text is not sent back as provider state; multi-turn requests replay visible text and tool calls only.
• One gateway per plugin instance. A second endpoint needs a second plugin instance and provider route.
• enabled requires a reload. The route is registered at mount time.
• The browser UI is unauthenticated. The panel and pill call the gateway without an API key; use a loopback gateway with auth.api_key unset.
• No multi-account failover or local usage analytics. Those are the gateway's job (or a future plugin surface).
• Chinese-only UI copy. The settings page and pill are not yet wired to the Client locale service.
• Sampling is gateway-owned. Current lite ignores client max_tokens / temperature / stop; see its caveats.
• Per-provider limits. /v1/models does not disclose context windows, so contextWindow and maxTokens are configured, not discovered.

Development

npm install --legacy-peer-deps   # installs the schemastery peer used by the schema tests
npm test                         # node --test, 30 tests
npm run check                    # node --check for every lib/*.js

--legacy-peer-deps is required because the published @deepseek-ai/dsh-llm is older than the version DSH ships; the test loader maps that specifier to test/fixtures/dsh-llm/index.js so the suite runs without a DSH installation. schemastery is a real dev dependency.

Layout:

lib/index.js       Host adapter
lib/protocol.js    pure translation layer
lib/catalog.js     pure parsing layer
lib/schema.js      Config schema
lib/client.js      Web client module
test/              node:test suites + DSH stub
.github/workflows  Node 22/24 CI
docs/              README artwork (regenerate with `scripts/make-images.py`)

Adding a configuration field: add it to profileSchema with .volatile(), add its default to PROFILE_DEFAULTS, extend the volatile-form guard in test/protocol.test.mjs, and update both READMEs. Settings writes must remain live on the running adapter; do not unwrap the config object in apply.

The artwork is generated, not hand-edited: python3 scripts/make-images.py renders the banners and diagrams from docs/ (needs rsvg-convert and Pillow).

Related

• devin-2api-lite — the gateway this plugin talks to (中文). It owns the Devin protocol, the catalog, /v1/quota and /__clientlog.
• DeepSeek Harness — the host application and its plugin API.
• leookun/devin-2api — the original protocol research lite is derived from (MIT).

Status

The Host path (catalog, streaming, tools, images, settings writes) is covered by the test suite and has been exercised against a live lite gateway. The Settings models row and the quota pill are implemented against the current Client APIs and register live; their visual rendering has not been verified on every DSH theme and locale.

License

MIT © 2026 Green-hats.
