dsh-jenkins-plugin

Jenkins integration for DeepSeek Harness: a live build-progress panel in the Web GUI's right sidebar, plus a set of model-facing Jenkins tools.

Once installed you stop switching to the Jenkins page to watch a build: the jobs you follow become cards in the sidebar with a live progress bar, a notice when a build finishes, and — when a build fails — one button that hands the failure to the model for a diagnosis.

Install

Installing from npm is recommended — the package ships prebuilt code and needs no build permission:

dsh plugin --profile web add dsh-jenkins-plugin

Restart dsh web, open Settings → Jenkins, add an instance (URL, account, password/API token) and save; the Jenkins panel then appears in the right sidebar.

Other sources:

# tarball (offline or internal distribution)
dsh plugin --profile web add ./dsh-jenkins-plugin-0.1.0.tgz

# git sources: the profile must allow the prepare script to build (pnpm ≥10 blocks it by default)
dsh plugin --profile web add github:<owner>/dsh-jenkins-plugin

A git install fetches sources, not built artifacts, so the profile's pnpm-workspace.yaml has to allow its prepare script:

allowBuilds:
  dsh-jenkins-plugin: true

That is permission for this package's code to run on your machine at install time, outside any sandbox the agent runs in — only allow sources you trust, and pin a commit (github:<owner>/dsh-jenkins-plugin#<sha>). Use npm or a tarball to avoid the step entirely.

What you get

The panel (the Jenkins tab in the right sidebar) has two modules:

• Following — one card per followed job: state dot, build number, outcome tag, live progress bar, the running stage's name, the change description of the current build, and the Maven project version when the controller reports one. Cards are fed by an SSE stream, not by a polling page.
• All jobs — collapsed by default; ☆/★ at the end of each row follows or unfollows it.

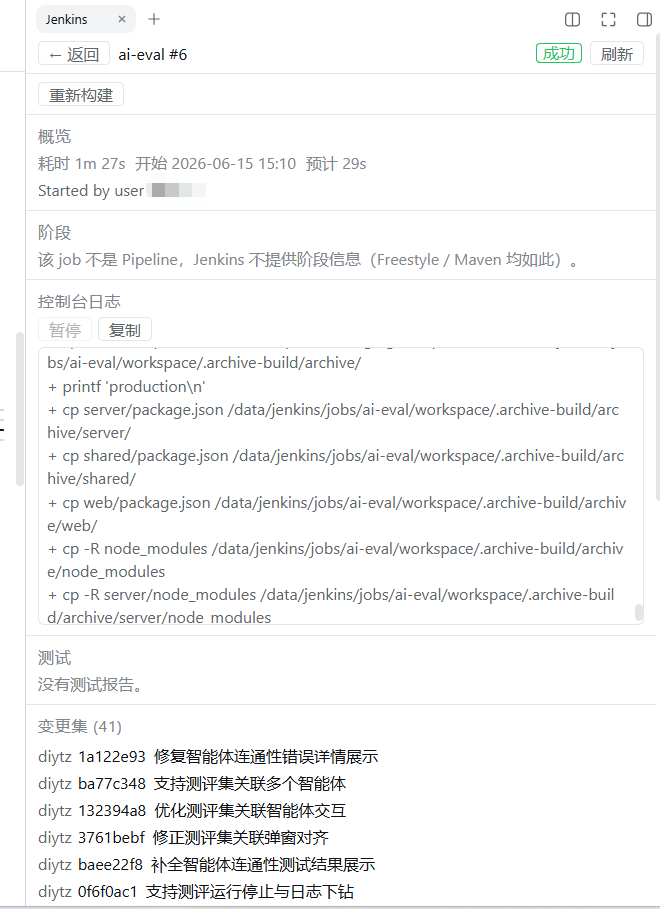

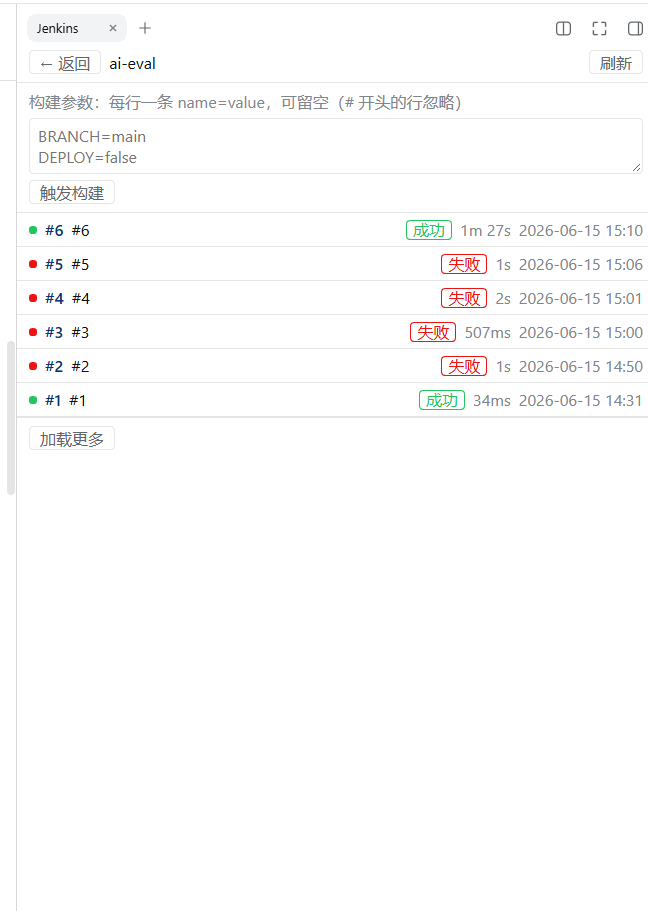

Clicking a job or a card drills down without ever leaving the panel: build history (paged) → build detail (stage bar, embedded console log, test summary, change set, artifacts). Downloading an artifact is the only action that opens a Jenkins page.

Writes happen in the panel as button → inline confirmation → run → result in place:

Action	Notes
Trigger a build	parameterized jobs get a KEY=VALUE box
Rebuild	offered only for failed builds; reuses the failed build's parameters
Abort	allowCancel is off by default; enable it to use the button
Hand to AI	offered only for failed builds; sends the failed log tail, stages and change set to the current session's model, and the answer appears in the conversation

Jobs on denyJobs are refused whatever the switches say, and not a single request reaches Jenkins.

Tools the model can call on its own:

Tool	Purpose
jenkins_jobs	list jobs and their status, optionally with recent build history
jenkins_build_status	one build's result, duration, Pipeline stages, change set, test summary
jenkins_log	console log, tail by default, continue from next_offset
jenkins_workspace	a build's workspace directory or artifact list (workspace reads need the Jenkins Workspace API plugin)
jenkins_build	trigger or cancel a build — the only write tool; denyJobs/allow.* first, then operator approval

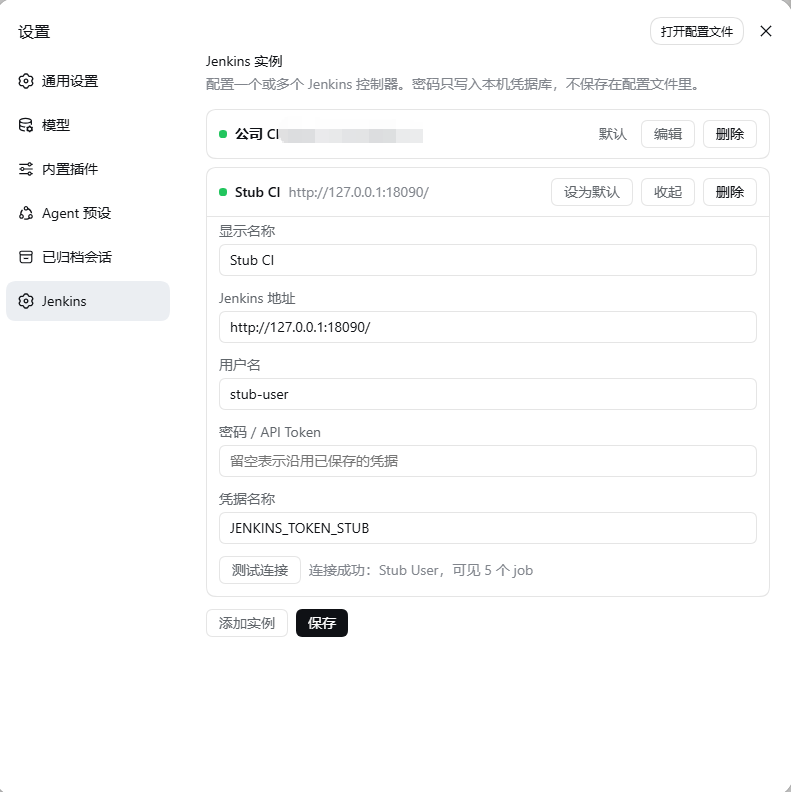

Multiple instances: the settings page holds several Jenkins controllers and probes each one with "test connection" before saving (if any row fails, the whole save is rejected with zero writes). The panel footer switches instances and marks the current one in green. The instance list and the followed jobs live in $DSH_HOME/jenkins.json.

Completion notices: a followed job's finished build is announced once through the platform's own background-job mechanism; the same build is never announced twice.

Failure wake (notifyWakeOnFailure, off by default): when a followed job fails, the conversation it was followed from gets the failure handed to it — the same log tail, stage and commits the button sends — so the model can explain it without anyone watching the build list. The favorite remembers which session followed it, so the answer lands where the person is. Only a real failure wakes anyone (unstable and aborted do not), each build wakes at most once, and a session that has closed is skipped silently. allowAnalyze: false turns it off too, since it sends the same log.

Permissions and risks

Please take these as read before installing:

• Network: requests go only to the Jenkins addresses you configure. Nothing else is contacted.
• Credentials: Basic auth; the password/API token is stored and resolved through DSH's own credentials service (tokenRef names a credential reference). The plugin's own jenkins.json holds only URLs, accounts and credential names — no passwords — and credentials never appear in tool output, the panel, or logs.
• Writes: it can trigger and cancel builds. allowTrigger defaults to on, allowCancel to off, and denyJobs hard-blocks specific jobs (including whole folders). Model-side calls additionally require approval; a panel click uses inline confirmation plus the same policy check.
• Build logs enter the model's context: "hand to AI" and the model's own jenkins_log calls send console log content to the model as part of the prompt. Jenkins logs are untrusted input — they can contain arbitrary text, including instructions aimed at the model — so treat them that way. Only the last 16 KiB of a failed build's log is sent by default (analyzeLogBytes).
• Local state: $DSH_HOME/jenkins.json (instance list plus followed jobs) and DSH credentials (passwords).
• The plugin never triggers a build by itself: only your click or an explicit model call does.

Compatibility

• Harness: built and verified against 0.1.6-alpha.2 (both engines.dsh and the peer dependencies pin that version).
• Node: matches the harness, ^22.19.0 || >=24.0.0.
• Surface: the panel is a Web GUI surface (dsh web), verified on the Web composition.
• Jenkins: verified against a real Jenkins 2.176.2 (FreeStyle and Maven jobs, an instance with 777 jobs). Several honest degradations:
  • Pipeline stages need Blue Ocean's wfapi endpoints; on a controller without Pipeline jobs the stage list is empty and the card falls back to an elapsed-time estimate — that is "the controller reported no stages", not a broken panel.
  • Workspace reads need the Jenkins Workspace API plugin; without it jenkins_workspace says so instead of pretending.
  • Maven versions come from mavenArtifacts/api/json, which only Maven jobs answer — and on a real 2.176.2 it is usually produced when the build ends, so a running Maven build's card may have no version. When there is none, nothing is shown; a version is never guessed.
  • Artifacts carry no size: Jenkins' tree query cannot fetch artifact sizes.
• Not finished yet: uiAutoOpenOnTrigger (open the panel on trigger) is accepted but not active; maxTrackedBuilds is advisory only — the followed list is the user's own choice, so nothing is hard-capped.

Configuration

Static configuration is only the fallback layer: instances configured in the settings page win, and static configuration applies when no panel settings exist (as an instance with id config). baseUrl/username may be left empty — that is exactly the "configure everything in the panel" setup.

- id: jenkins
  name: dsh-jenkins-plugin
  config:
    baseUrl: https://ci.example.com/jenkins
    username: ci-bot
    tokenRef: JENKINS_TOKEN
    denyJobs: ['infra/*']

Field	Default	Meaning
baseUrl	empty	Jenkins root URL; empty means panel settings only
username	empty	login name paired with the token
tokenRef	JENKINS_TOKEN	credential reference holding the API token; resolved per call, so a rotation applies without a restart
settingsFile	jenkins.json	panel settings file: an absolute path, or a name under the harness home
tlsMode	verify	verify validates the certificate; allowSelfSigned accepts an untrusted one
tlsCaFile	—	PEM bundle used to validate the certificate under verify
timeoutMs	15000	bound on one HTTP request
crumbMode	auto	auto fetches a CSRF crumb before mutating requests; off skips it
denyJobs	[]	job paths that may never be triggered or cancelled; folder/* matches a folder
allowTrigger	true	whether triggering builds is allowed
allowCancel	false	whether cancelling builds is allowed
progressIntervalMs	3000	stage polling interval for tracked builds
logIntervalMs	1500	console-log polling interval for the build the panel shows
idleBackoffMaxMs	30000	upper bound of the idle backoff
queueTimeoutMs	300000	how long a build may stay queued before it reports a timeout
maxTrackedBuilds	5	advisory cap on tracked builds (not enforced)
retainMs	600000	how long a finished build stays in the tracking table
historyCount	10	default build-history rows (max 50)
maxLogBytes	262144	byte cap on one console-log response
logReadBytes	8388608	byte window read from the controller per log call
maxListingBytes	4194304	byte cap on one response of the recursive job walk
maxWorkspaceEntries	500	entry cap on one workspace directory listing
maxReadFileBytes	1048576	byte cap on one workspace file read
notifyOnComplete	true	announce a followed build when it finishes
notifyWakeOnFailure	false	hand a failed followed build to the session that followed it
allowAnalyze	true	allow handing a failed build to the model
analyzeLogBytes	16384	log-tail bytes handed to the model
uiAutoOpenOnTrigger	true	open the panel on trigger (not active yet)

maxLogBytes and logReadBytes are two different things because real Jenkins ignores ?start=: the read window has to be far larger than a page, or the "tail" you get back is really the head of the log. That is why this plugin reads a window and slices locally.

Development

npm install          # runs prepare (= build) once
npm run typecheck
npm test             # 415 assertions, no test framework: every tests/*.ts runs on its own
npm run build        # tsc (Host half) + esbuild (browser half → lib/client.js)
npm run check        # test + secret scan + packed-payload audit

The browser half is bundled into the client module system's lazy factory (window.__ModuleLoader__.load({ id, factory })): React, Cordis and the static UI libraries stay external and resolve through the injected require, everything else is inlined — so the package has no runtime dependency beyond the platform baseline.

tests/stub-jenkins.ts is a zero-dependency stub Jenkins (node tests/stub-jenkins.ts) with stages, a failing build, a parameterized Maven job, write endpoints and a queue delay; it exercises the panel's live path and write path without touching a real controller.

Three gates run before a release (and are what CI runs):

npm run check:secrets   # credential shapes in everything a commit would carry (private hostnames / user paths warn only)
npm run check:payload   # reads npm pack's manifest: artifacts present, no src/ or internal notes shipped
npm pack                # produce the tarball, install it into a clean profile, then publish

Releasing is scripted end to end in RELEASING.md (npm run release:check is the pre-flight that refuses to reuse a version or a tag).

License

MIT
