dsh-git-graph-sidebar

English | 中文

A Git browsing plugin for DeepSeek Harness (DSH): a branch chip in the composer, plus a Repository graph tab inside dsh-better-sidebar that lists every Git repository below the current workspace directory and draws the selected repository's commit graph as an SVG lane canvas.

What it does

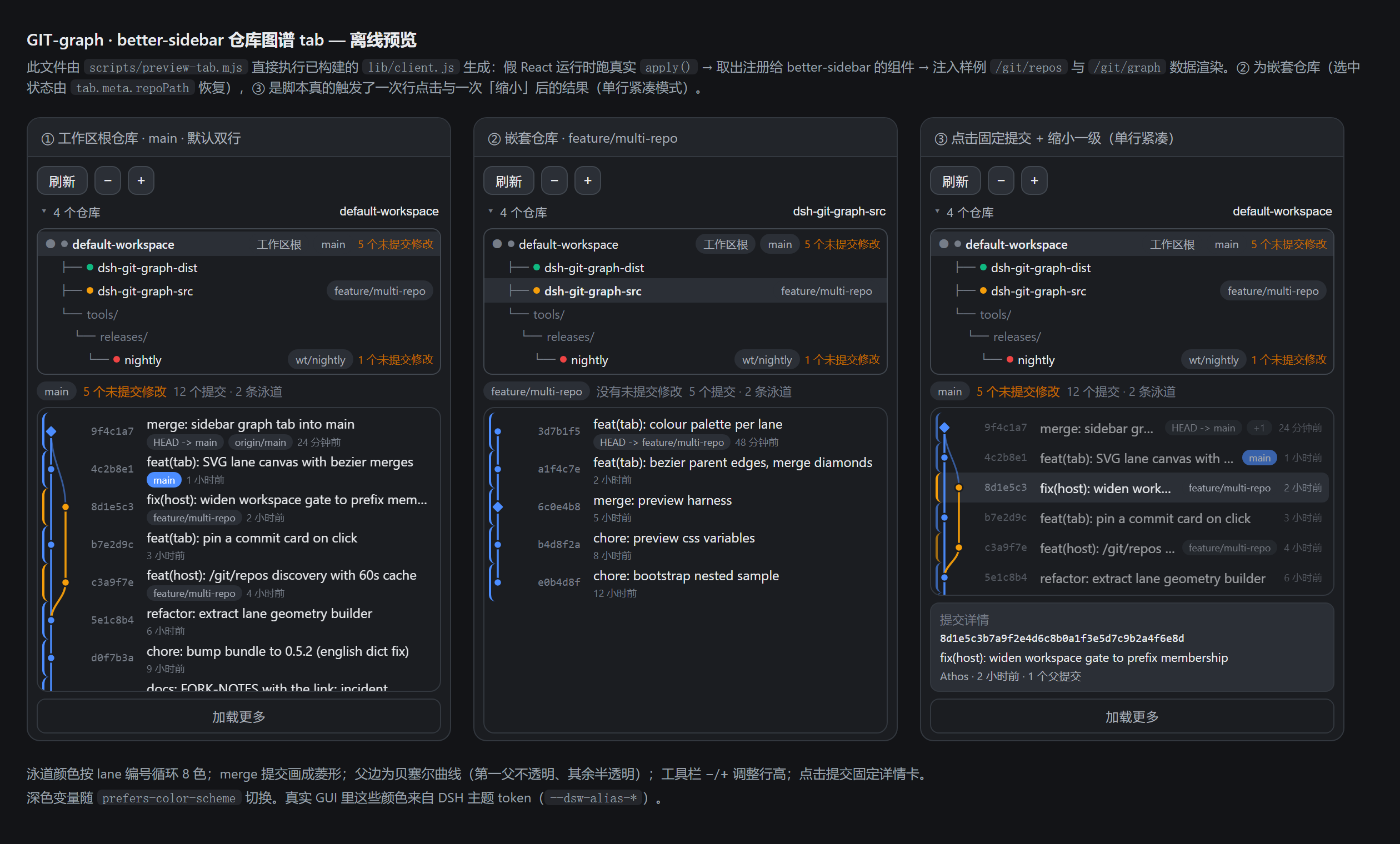

Repository graph tab (better-sidebar)

The tab works from the session's working directory and treats that directory as a container: everything Git-shaped below it is reachable without registering each repository as a separate DSH workspace.

• Multi-repository discovery — the workspace root itself, plus repositories nested up to 3 levels below it. Each entry carries its current branch, short head, dirty-file count and conflict count.
• Repository tree — the root, the intermediate directories and each repository, so the level relationship between them is visible rather than implied by a path.
• SVG commit graph — one row per commit, one colored lane per branch line, curved edges where a commit's parent sits on another lane, merge commits drawn as diamonds, ref badges and relative timestamps.
• Zoom — rows are two lines by default; − / + fold them into compact single-line rows or open them up.
• Pinned commit card — click a row for the full hash, subject, author, time and parent count.
• Refresh — re-scans on demand. The host caches a scan for 60 s.

Branch chip (composer)

The chip that ships with the upstream plugin is unchanged: on a blank conversation it lets you switch or create a branch, and it opens the interactive commit-graph dialog and the worktree manager. Branch operations run in the host process; the chip hides itself on active sessions.

Requirements

Item	Value
DSH	>=0.2.1-rc.2 <0.3.0-0
Node (host runtime)	^22.19.0 || >=24.0.0
dsh-better-sidebar	needed for the tab only — without it the plugin still loads and the chip keeps working

Install

Grab the prebuilt bundle from the latest release — dsh-git-graph-sidebar.tgz, no build step needed — then install it as a plugin bundle:

• Desktop app (the desktop profile is owned by the Electron app, so the CLI refuses it): install the .tgz from the app's plugin page.

• CLI-managed profile:

  dsh plugin --profile <profile> add github:Athosoo/dsh-git-graph-sidebar
  # or from the downloaded tarball
  dsh plugin --profile <profile> add ./dsh-git-graph-sidebar.tgz


Restart DSH after installing. The host half registers its /git/* HTTP routes at startup, so a page refresh alone is not enough for a first install, and an upgraded build is not picked up until the process restarts.

The tab needs dsh-better-sidebar installed; without it everything else — the branch chip, the graph dialog, worktrees — keeps working and only the sidebar tab is absent.

Repository discovery rules

Rule	Value
Scan depth	3 levels below the working directory (a repository found at a level is not descended into)
Upper bound	200 repositories per scan, then the result is flagged as truncated
Skipped directory names	node_modules, dist, build, out, coverage, target, vendor — plus every dot-directory
Repository marker	a .git entry (directory, file or symlink — so worktrees and submodules are both detected)
Per-entry status budget	5 s; an entry whose git status did not return in time is still listed, without branch metadata
Cache	60 s per base path, shared between concurrent requests; the tab's refresh button bypasses it

HTTP routes

Registered by the host half under /git; all of them answer JSON ({ok:true,value} / {ok:false,error}), except /git/events, which is a server-sent event stream.

Route	Purpose
/git/repos	multi-repository discovery for a path ({path, refresh?})
/git/status	branch, head, dirty/untracked/conflict counts
/git/branches	branch list with the current one marked
/git/graph	commit list with parents and refs ({path, limit?})
/git/switch	switch branch
/git/create-branch	create and switch
/git/worktrees	worktree list
/git/worktree-add	create a worktree
/git/worktree-remove	remove a worktree
/git/events	change notifications (polled by the UI)

Every route resolves the requested path with realpath and rejects it unless it lands inside a registered workspace. Nested repository directories are accepted; anything outside a workspace gets workspace-unknown.

Known limitations

• The tab is read-only. Branch switching and worktree operations stay in the chip's dialog; they are not wired into the tab yet.
• Do not install this alongside @linxin666/dsh-client-ui-git-graph. Both halves own the /git route prefix, and two registrations of the same prefix conflict. Install one or the other.
• Repositories deeper than 3 levels are not listed, and a repository inside a skipped directory name (node_modules, dist, …) is not listed either, by design.
• The host half is a build output. lib/index.js is edited directly (the added parts sit in marked //#region blocks); lib/client.js is generated by splicing src/client/graph/SidebarTab.js into it. See DEVELOPMENT.md.

Development

npm run build     # splice src/client/graph/SidebarTab.js into lib/client.js
npm run check     # node --check on both bundles
npm run validate  # every t("…") key exists in both locale dictionaries
npm run preview   # render the tab to preview/*.html without a running DSH

npm run preview writes standalone HTML files (dark and light theme) that show the tab with sample repositories and commits, so layout changes can be checked in a browser without installing anything.

Attribution and license

Apache-2.0 — see LICENSE and NOTICE.

This is a fork of @linxin666/dsh-client-ui-git-graph 0.4.8 by linxin666, also Apache-2.0. The branch chip, the commit-graph dialog, the worktree manager and the host git service come from that project. Changes in this fork: renamed package, workspace gate widened from exact-path match to inside-a-workspace, added the /git/repos discovery route, added the better-sidebar tab (repository tree, SVG canvas, zoom, pinned commit card) and its locale keys.
