@7dgroup/dsh-7d-tray-win

Author: 7DGroup

A Windows-only system-tray plugin for DeepSeek Harness (dsh). While dsh web is running, the DeepSeek whale icon appears in the system tray; when the server stops, the tray icon disappears within 3 seconds — the tray shares the full lifecycle of the service. It also maintains a silent desktop launcher (DSH.lnk): double-click it to start the server in the background with no console window and open the browser automatically.

---

📌 Project Info

Field	Value
Author	7DGroup
Version	0.1.0
Platform	Windows 10/11 (win32; auto-skipped on other platforms)
Runtime	Node ^22.19.0 || >=24.0.0 · pnpm 10+ · dsh CLI
Plugin name	tray-7d-win
Peer dependency	@deepseek-ai/cordis ^4.0.1
Repository	github.com/7dgroup-ai/dsh-7d-tray-win
License	MIT

🖼️ Plugin Effect

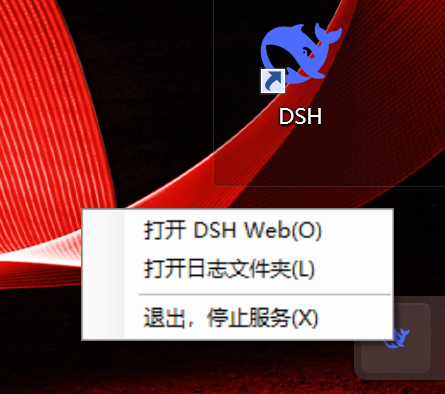

After dsh web starts, the DeepSeek whale icon appears in the system tray, and the desktop shortcut DSH.lnk is created automatically:

• Double-click icon: opens http://127.0.0.1:3080
• Right-click menu: Open DSH Web / Open log folder / Exit (stop server)

When the server exits (including crashes), the tray icon and tray agent process disappear automatically.

✨ Core Capabilities

• System-tray icon: official DeepSeek whale logo; double-click opens the Web UI, right-click menu supports opening logs and exiting.
• Lifecycle sync: no matter how dsh web is started (desktop shortcut, command line, script), the tray appears automatically; it disappears within 3 seconds after the server exits.
• Silent desktop launcher: automatically maintains the desktop DSH.lnk; double-click it to start the server in the background with no window and open the browser.
• Clean startup chain: built-in PowerShell startup script and npmmirror registry configuration avoid host environment pollution and work reliably in mainland China.
• Zero core changes / safe upgrades: pure Cordis composition bundle. It only adds one row to your profile via cordis.patch.yml; no files in the official DSH packages are overwritten or modified. Removing the plugin (dsh plugin remove) restores the original state, and upgrading the official DSH version will not conflict with this plugin as long as the Cordis lifecycle stays compatible.

✅ Features

• ✅ Windows system tray auto-show/hide
• ✅ Double-click tray to open Web UI
• ✅ Right-click menu: Open DSH Web / Open log folder / Exit
• ✅ Tray auto-cleanup after server stops
• ✅ Silent desktop launcher DSH.lnk auto-maintained
• ✅ First-run auto-compilation of .NET launcher (requires .NET Framework 4)
• ✅ Refreshes shipped assets on every boot
• ✅ Auto-skips on non-win32 platforms without errors

📂 Project Structure

dsh-7d-tray-win/
├── assets/                         # assets shipped with the package
│   ├── DSH.ico                     # tray icon
│   ├── tray-agent.ps1              # tray agent script
│   ├── starter.ps1                 # dsh web startup chain script
│   ├── starter-launcher.cs         # silent desktop launcher source
│   └── make-shortcut.ps1           # desktop shortcut maintenance script
├── lib/                            # runtime entry
│   └── index.js                    # Cordis plugin: tray control logic
├── cordis.patch.yml                # composition patch layer
├── package.json
├── LICENSE
├── README.md
└── README.zh.md

🚀 Quick Start

Requirements

• Windows 10/11 (win32)
• Node.js ^22.19.0 || >=24.0.0
• pnpm 10+
• .NET Framework 4 (ships with Windows; used once to compile the silent launcher)
• PowerShell (ships with Windows)

Install into the web profile (recommended)

Most sessions boot the default web profile (dsh web is shorthand for dsh --profile web), so installing into web is recommended:

dsh plugin --profile web add @7dgroup/dsh-7d-tray-win

Or install from a local path (useful for development/testing):

dsh plugin --profile web add C:\path\to\dsh-7d-tray-win

After installation, start dsh web; the tray icon and desktop shortcut will take effect automatically.

Install into another profile

If you use a custom profile, replace web with your profile name. The plugin only activates in the profile it is installed into.

💡 Usage

Tray Icon Interactions

Action	Behavior
Double-click icon	opens http://127.0.0.1:3080
Right-click → Open DSH Web	opens http://127.0.0.1:3080
Right-click → Open log folder	opens %LOCALAPPDATA%\dsh-7d-tray-win\
Right-click → Exit	stops dsh web and closes the tray

Silent Desktop Launcher

On first boot the plugin compiles starter-launcher.cs into starter-launcher.exe and creates/refreshes the desktop DSH.lnk. From then on:

• Double-click desktop DSH.lnk → no console window appears
• dsh web starts in the background
• Browser opens automatically to http://127.0.0.1:3080
• DeepSeek whale icon appears in the system tray

📁 Runtime Directory

All runtime assets and logs are stored in %LOCALAPPDATA%\dsh-7d-tray-win\:

File	Purpose
DSH.ico	tray icon
tray-agent.ps1	tray agent script
starter.ps1	dsh web startup chain script
starter-launcher.cs	silent launcher source
starter-launcher.exe	compiled silent launcher
make-shortcut.ps1	shortcut maintenance script
dsh-launch.log	service startup chain log (npx/dsh output)
tray-agent.log	tray agent lifecycle log
plugin-debug.log	plugin apply/spawn/dispose debug log

On every boot the plugin refreshes these files to the latest versions shipped with the package.

⚠️ Notes

1. Windows-only: the plugin auto-skips on non-win32 platforms; no tray or shortcut is created.
2. First-run compile: the first run requires .NET Framework 4 to compile the silent launcher. If csc.exe is missing, the desktop shortcut feature is unavailable, but the tray still works.
3. Launcher has no tray: DSH.lnk itself shows no tray; the tray is provided by this plugin while dsh web runs.
4. Asset refresh: every dsh web boot overwrites the files in %LOCALAPPDATA%\dsh-7d-tray-win\ with the plugin's latest assets. Do not store custom persistent files there.
5. Fixed port: double-clicking the tray icon always opens http://127.0.0.1:3080; make sure dsh web listens on that address.
6. Official-version safe: this plugin is a Cordis composition bundle; it does not overwrite or patch any files inside the official DSH packages. Upgrading DSH will not break the plugin as long as the Cordis lifecycle remains compatible.
7. Single instance recommended: all running instances share the runtime directory %LOCALAPPDATA%\dsh-7d-tray-win\ and the desktop DSH.lnk; when multiple dsh web instances run concurrently, the last one to start wins the shared files. Run only one instance at a time.

❓ FAQ

Q: It says pnpm is not found during installation. A: dsh plugin delegates to pnpm, so make sure pnpm is installed and on PATH:

npm install -g pnpm@10

Q: The tray icon does not appear. A: Please check:

• You are on Windows 10/11;
• The plugin is installed into the profile you actually boot (default is web);
• dsh web started successfully;
• Inspect %LOCALAPPDATA%\dsh-7d-tray-win\plugin-debug.log and tray-agent.log for errors.

Q: The desktop shortcut is not created. A: Check %LOCALAPPDATA%\dsh-7d-tray-win\plugin-debug.log for csc.exe not found or launcher compile failed. The first run requires .NET Framework 4 that ships with Windows.

Q: How do I uninstall? A: Run:

dsh plugin --profile web remove @7dgroup/dsh-7d-tray-win

Then you may manually delete %LOCALAPPDATA%\dsh-7d-tray-win\ and the desktop DSH.lnk.

Q: Can it be installed on non-win32 platforms? A: Yes, but the plugin will auto-skip and create neither tray icon nor shortcut.

Q: Will upgrading the official DSH version break this plugin? A: No. This plugin is a Cordis composition bundle; it only adds one row to your profile's cordis.patch.yml and does not overwrite or modify any official DSH package files. As long as the Cordis lifecycle remains compatible, the plugin continues to work after an official upgrade.

📄 License

MIT · Copyright (c) 2026 7DGroup
