Click the Effort row (second row of the official model menu) instead of the built-in level list: an Effort slider panel pops up — OFF/MAX scale ticks, Low/Medium/High/Ultracode status shown live, and after the panel closes the effort value stays color-coded on the menu row and on the model-seat trigger button.

Features · Compatibility · Install / Uninstall · Quick Start · Configuration · Permissions & Data · How It Works · Troubleshooting · Development

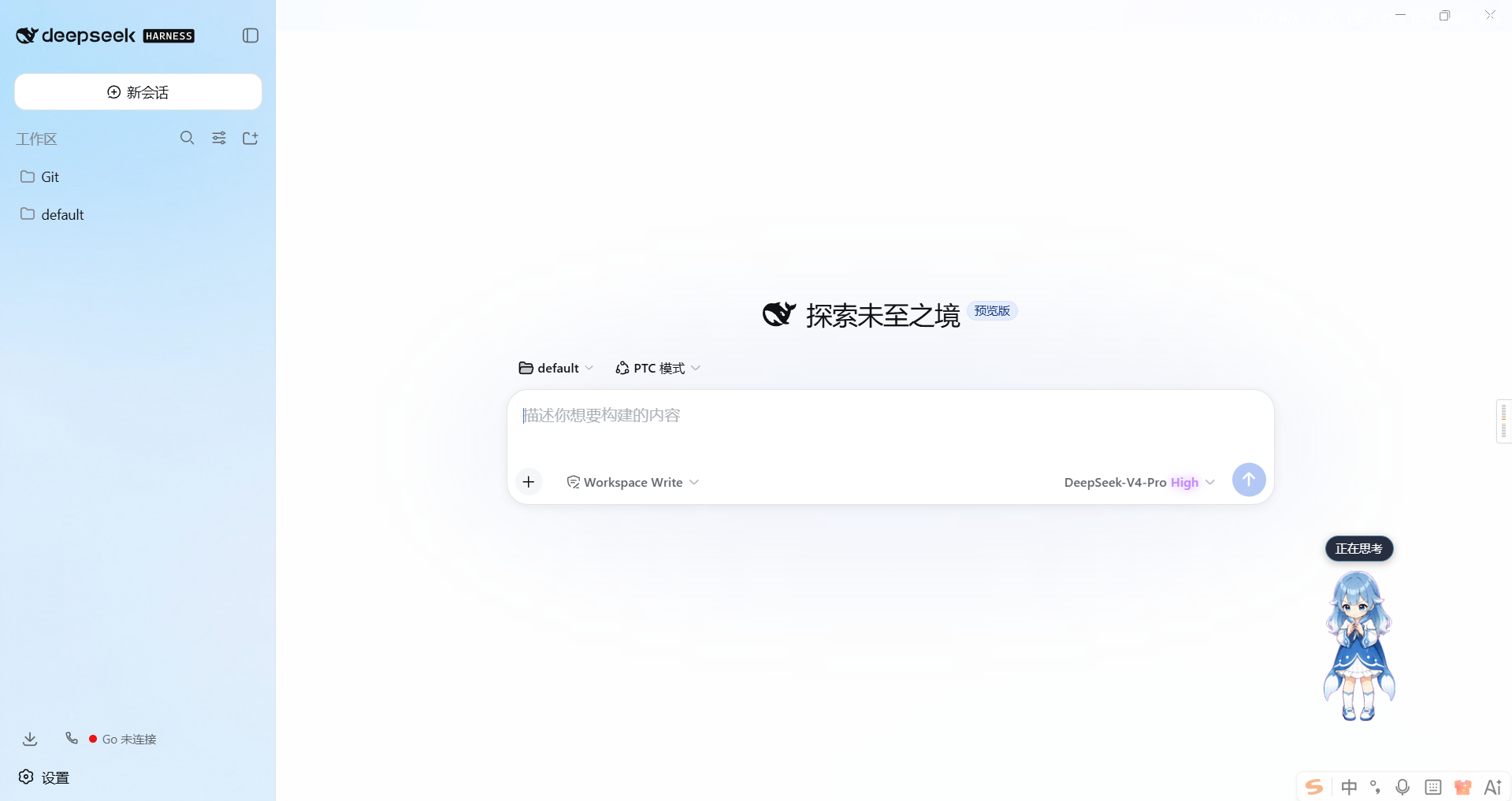

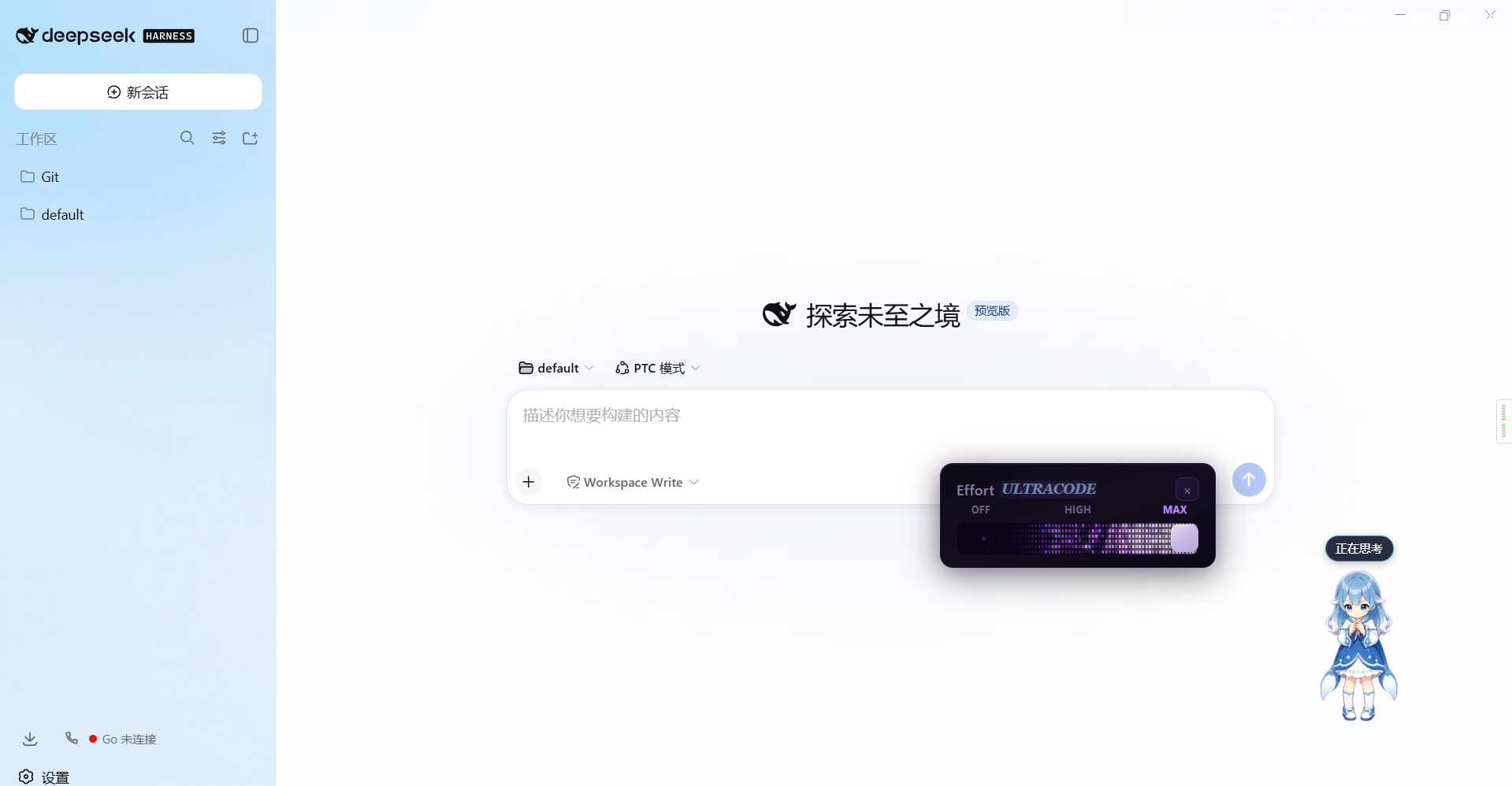

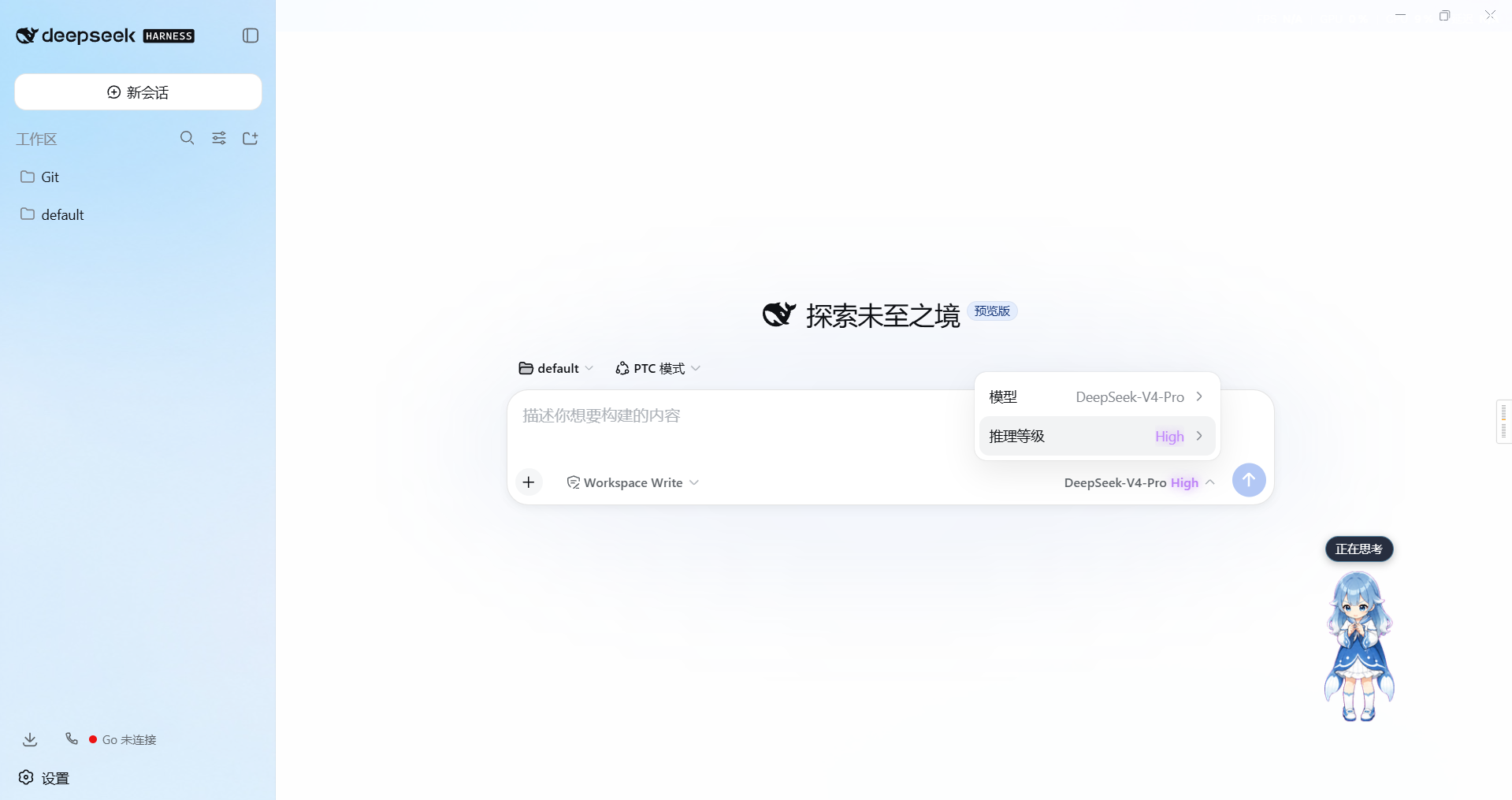

Demo screenshots (menu-row coloring / model-seat trigger / Effort panel — effort level is color-coded):

Menu row	Model-seat trigger	Effort panel

---

🔧 v0.5.2 — Update the DSH development baseline to 0.2.1-rc.5 and validate packed releases on rc.4 / rc.5. Fix the stale npm 0.5.1 client artifact that still registered dsh-effort-slider, causing duplicate factory registration and a desktop startup reload loop. Packing now rebuilds the client and checks the actual JavaScript registration against the manifest, so a stale unscoped bundle cannot ship again. Mouse dragging now survives catalog refreshes triggered by live effort writes; requests are serialized with only the latest pending level retained, and the current model is checked again before saving.

🔧 v0.5.1 — DSH 0.2.1-rc.2 compatibility: volatile settings with live updates, revision-checked provisioning, resolved RemoteResult failures, nested model-label slots, menu focus/blur integration, and safe handling of unavailable models and Session changes. The source build configuration uses the scoped package name; the stale npm artifact is corrected in v0.5.2. Live provisioning queues settings writes outside the active HMR transaction; CSS names and source maps stay stable across checkout paths. Includes real DSH browser validation.

🆕 v0.5.0 — Evaluation-fix batch. Reliability: the panel splits loading / load-failed / unsupported into three states with a retry button; failed slider writes surface a transient red status instead of failing silently; user config edits made mid-provision are detected (the entry is re-read before mutate, conflicting rounds defer); every host provisioning failure path now logs a warning, and an unrecognized Effort row produces a one-time diagnostic. Panel UX: re-anchors on scroll/resize, closes on Esc / outside click / anchor unmount, and clicking the Effort row toggles it; tick dots and labels align with the real snap points; the slider carries aria-label / aria-valuetext; UI text is bilingual (zh/en, follows <html lang>). New debugReport option: per-route/per-model provisioning detail plus an optional read-only llm/stream tracer logging route/model/effort per request; a ? help hint in the panel header points at enabled / dialect / debugReport. Also: GitHub Actions CI (typecheck + tests + build + stale-artifact gate), the WebGL fire no longer burns at 60 fps while invisible, and the npm package is renamed to @txc2768651338/dsh-effort-slider (the old unscoped dsh-effort-slider name is retired).

🆕 v0.4.0 — Ported to DSH 0.2.0: DSH replaced its settings service with SettingsForms (settings are now profile entry configs; installSection / settings.get / settings/updated are gone). The host half now locates the pi-ai profile entry (llm-pi-ai), reads it via settings.describe(), writes via settings.mutate(), and listens to settings/document-updated. The client half derives the current session from retainedBy.mainView (SessionListState.current was removed). Plugin options (enabled / defaultDialect / routes) live in the plugin's entry config, editable in the DSH settings page. DSH ≤ 0.1.5 is no longer supported (use v0.3.0 there).

🆕 v0.3.0 — Ported to DSH 0.1.5: client Context now comes from @deepseek-ai/cordis, per-session state is read/written via ctx.modelDirectories, and the settings section is installed via settings.installSection(); the adapter-metadata wrapper was dropped (see Universal effort provisioning). DSH ≤ 0.1.1 is no longer supported.

🔧 v0.2.5 — Fixed universal provisioning failing silently on explicit models arrays (dsh-settings path ops cannot traverse array nodes — the array is now replaced as a whole).

🔧 v0.2.4 — Fixed universal provisioning never landing when the pi-ai settings section registers late (now retries until the section is ready).

🆕 v0.2.3 — The model-seat trigger button also color-codes its effort name, persistent after the menu closes.

🔧 v0.2.2 — Fixed menu-row coloring breaking on whole-menu remounts (full-scan throttled repaint; color inferred from the effort text).

🆕 v0.2.1 — The effort value on the model menu's Effort row keeps its level color after the panel closes.

✨ v0.2.0 — Any custom third-party model/provider gets working thinking-effort control (hot-applied).

🎛️ v0.1.0 — Initial release: intercepts the official Effort menu and shows a Claude Code–style Effort slider panel.

Full notes for each version: Releases

---

Features

Feature	Description
🎚️ Stepless dragging	Continuous 0–100 dragging that writes reasoningEffort in real time (16 ms throttle, no request pile-up while dragging)
🎯 Snap on release	Snaps to the nearest level on release / blur / keyboard end, with one confirmation write
🔥 WebGL fire trail	Three-pass shaders (ignite → blur → composite); the fire front follows the thumb with spring damping
🏁 OFF/MAX ticks	First/last levels always show OFF / MAX; middle levels show the API-returned name
🎨 Level status	Effort name shown in the panel header, colored/glowing per level; menu row and model-seat trigger keep the same color after closing (v0.2.3)
🌐 Universal effort	Third-party models without reasoning metadata automatically get the universal 5-level scale; pi-ai models get wire-level dictionaries patched in, hot-applied (v0.2.0)

Only reasoningEffort is written — model selection is untouched. Models with no multi-level reasoning show 「当前模型不提供多档推理等级」 (no multi-level reasoning available).

Universal effort provisioning (v0.2.0, simplified in v0.3.0)

Any custom third-party model/provider gets thinking-effort control that actually works on the wire:

• Wire-level provisioning (host, pi-ai): for llm-pi-ai models missing reasoningEfforts, the dictionary and compat wire dialect are patched in (hot-applied, no restart); pi-ai translates the level into real wire fields (reasoning_effort / thinking / OpenRouter reasoning.effort, etc.) and advertises the same declaration as the model's reasoning catalog metadata — which is what makes the official Effort row appear for a hand-declared model at all;
• Client fallback scale: if the directory returns no reasoning metadata, the panel still opens with the universal 5-level scale;
• Existing user declarations (reasoningEfforts: false or a custom dictionary) are always respected and never overwritten.

Why there is no adapter wrapper any more. Up to v0.2.5 the host half also wrapped each adapter's resolveModel to inject universalReasoning into models that declared no reasoning metadata. DSH 0.1.5 made llm.adapters a private field with no public accessor, so that path is impossible — and unnecessary: reasoningEfforts is the one declaration that feeds both the request wire and the model catalog. Model-level compat is only written when the route declares api: openai-completions, because pi-ai refuses a switch the model's protocol cannot read.

Supported wire dialects for custom endpoints (set effort-slider.defaultDialect or routes.<route>). A dialect translates levels on api: openai-completions routes only — native protocols use pi-ai's built-in mapping, so the dialect setting has no wire effect there:

Dialect	Wire effect
effort (default)	OpenAI-style reasoning_effort: low/medium/high/max
deepseek	thinking:{type} toggle + reasoning_effort
openrouter	reasoning: { effort } (OpenRouter normalized)
together / zai	reasoning.enabled / thinking:{type} + optional effort
qwen	enable_thinking toggle
string-thinking / ant-ling	thinking / reasoning.effort strings

Compatibility

Item	Value
DSH version	0.2.1-rc.4 / 0.2.1-rc.5; development types pinned to rc.5, real web profiles on Windows
Broken on	DSH ≤ 0.1.5 — v0.4.0 targets the SettingsForms settings service introduced in 0.2.0 (use v0.3.0 for DSH 0.1.5; v0.2.5 and earlier also import @deepseek-ai/dsh-client-runtime, which was removed after 0.1.1-rc.2)
Install mechanism	dsh plugin --profile web add (bundle patch + dual half)
Depends on	ctx.sessions (@deepseek-ai/dsh-api-session-controller) and ctx.modelDirectories (@deepseek-ai/dsh-client-ui-model-selection); host: ctx.llm, ctx.settings (SettingsForms)
Client module requests	none beyond the platform baseline (react, react-dom/client, react/jsx-runtime) — all DSH imports are type-only and erased

Install / Uninstall

# Install from npm (the package listed on deepseek1024.com)
dsh plugin --profile web add @txc2768651338/dsh-effort-slider

# Or install from GitHub (the committed lib/ artifacts need no local build)
dsh plugin --profile web add github:2768651338/dsh-effort-slider#main

# Or build locally and install from a checkout
pnpm install && pnpm build
dsh plugin --profile web add file:./dsh-effort-slider

After installing, restart DeepSeek Harness and press Ctrl+F5 once in the web page. The lib/ artifacts are committed, so GitHub installs need no local build.

Coming from a version pinned to an old DSH? Remove any - id: ui-effort-slider / disabled: true row from ~/.dsh/profiles/web/cordis.patch.yml, otherwise the new build stays switched off.

Action	Command
Upgrade	dsh plugin --profile web update @txc2768651338/dsh-effort-slider (or re-run add), then restart DSH
Uninstall	dsh plugin --profile web remove @txc2768651338/dsh-effort-slider, then remove its row from cordis.patch.yml if any

Quick Start

1. Install the plugin, restart DSH, press Ctrl+F5.
2. Open the model menu above the composer → click Effort → the Effort slider panel appears.
3. Drag to choose a level; it snaps on release. After the panel closes, the effort value keeps its color on the menu row.
4. For custom models with no thinking effort, the panel opens with the universal 5-level scale; pi-ai models get their wire dictionaries patched on the host side (hot-applied).

A [effort-slider] intercept row: ... line in DevTools Console means interception is working.

Configuration

Item	Details
Plugin options	The plugin's profile entry config (enabled / defaultDialect / routes / debugReport); DSH 0.2.1 exposes these as volatile fields through SettingsForms. Changes take effect without a plugin remount. Edit the profile patch if your DSH UI has no generated plugin form
Defaults	enabled: true, defaultDialect: effort, debugReport: false
Environment variables	None of its own; follows DSH's DSH_HOME resolution
Sensitive items	None — no keys, tokens, or credentials are read or stored

effort-slider:
  enabled: true          # provisioning master switch
  defaultDialect: effort # global default wire dialect
  routes:
    my-gateway: deepseek # per-route override
  debugReport: false     # per-run provisioning report (route/model/dialect/write-or-skip) + per-request effort trace (llm/stream) in the host log

Permissions & Data

Scope	What it touches
Files (read)	None — no user files are read or written (settings go through DSH's settings service)
Network	None of its own — the panel reads and writes the Model Controller's in-browser directory; the resulting session.selectModel call rides DSH's existing connection
Credentials	Never read
User data	Not read (no access to conversation content/messages/prompts; only the current session's provider/model/reasoningEffort through the shared model directory)

How It Works

Half	File	Role
Host	lib/index.js	Universal effort provisioning: locates the pi-ai profile entry (llm-pi-ai), reads it via settings.describe(), patches wire dialects (buildProvisionOps, idempotent, respects user declarations) via settings.mutate; listens to llm/adapters-updated / settings/document-updated. With debugReport: true, each provisioning run logs a per-route/per-model report (written fields or skip reason, plus a note where the wire dialect does not apply) instead of the one-line count, and each model call is traced as [debug] request route=… model=… effort=… through a read-only llm/stream passthrough
Browser	lib/client.js	Captures clicks on the model menu's Effort row → shows the Effort panel; reads ctx.modelDirectories.directoryFor(sessionId) and writes through directory.select({ reasoningEffort }); a MutationObserver keeps the menu-row level color alive after the panel closes

The browser half follows the official external-plugin convention: classic script + window.__ModuleLoader__.load factory; react / react-dom/client / react/jsx-runtime are platform externals; effort.module.css is hashed and inlined by lightningcss, injected as <style data-plugin> when the factory runs.

Troubleshooting

Symptom	Fix
duplicate factory registration for "dsh-effort-slider" followed by web boot: 1 entry did not activate	npm 0.5.1 shipped a stale client factory with the unscoped name. Install the rebuilt v0.5.2 package into the affected profile, then restart DSH. Repeated reloads cannot correct the installed artifact. The unscoped dsh-effort-slider npm package is maintained separately; this project's factory id must be @txc2768651338/dsh-effort-slider
No Effort row in the model menu	The model declares no reasoning metadata and host provisioning is not in effect — confirm DSH was restarted and check enabled on the plugin's settings page (its profile entry config); set debugReport: true and check the host log for the per-model provisioning report
Panel says 「当前模型不支持思考强度调节」	Universal fallback not active — upgrade to v0.2.0+ and restart
Plugin does not load at all (row shows disabled: true)	An earlier build was switched off in ~/.dsh/profiles/web/cordis.patch.yml; delete that row and restart
Dragging has no effect	Check whether the target endpoint's wire dialect matches (see the dialect table — dialects translate only on api: openai-completions routes) or set defaultDialect for that route. With debugReport: true the host log covers the whole chain you can verify: the per-model report states exactly what was written (or skipped, and why) and flags routes where the dialect does not apply, and [debug] request route=… model=… effort=… lines prove which level each call carries. That leaves only the wire translation inside pi-ai, which no plugin can observe. The panel's ? button repeats this checklist
Another slider appears after this package is installed	The separately maintained unscoped dsh-effort-slider also uses the ui-effort-slider entry and the same CSS tag. In DSH's plugin manager, disable that competing bundle, keep @txc2768651338/dsh-effort-slider enabled, and fully restart DSH. Its package can remain installed. Installation coexistence does not mean both sliders can control the same menu
Conflicts with other skin plugins	If another skin that intercepts the Effort row is installed (e.g. the aurora skin of dsh-ui-web), disable its interception to avoid double panels
Version still shows old after restart	file: installs are snapshot copies — use the github: spec or re-run add before restarting
Where are the logs?	Host errors: DSH startup log (with debugReport: true, provisioning details and per-request effort traces are logged as effort-slider: [debug] lines); client errors: browser DevTools (F12) Console ([effort-slider] prefix)

Project Structure

src/
  index.ts                  host half: pi-ai wire provisioning via the SettingsForms seam
  effort-core.ts             pure logic: dialect → wire mapping, provisioning patches (unit-tested)
  client/
    index.ts                browser half: intercept the Effort row + panel anchor + menu-row coloring
    css-modules.d.ts
    effort/
      directory.ts          structural face of ctx.modelDirectories / ctx.sessions (type-only, no DSH runtime import)
      EffortPanel.tsx       Effort panel (levels / ticks / slider / glow)
      useWebglFire.ts       WebGL2 three-pass fire loop (spring follow + idle sleep)
      shaders.ts             vertex / ignite / blur / composite shaders
      effortColors.ts        level → color mapping (panel and menu row share it)
      effort.module.css      panel styles (inlined via lightningcss)
cordis.patch.yml           bundle patch (inserts the ui-effort-slider row)
lib/                        built artifacts (client.js ships with sourcemap)
test/                      host.spec.mjs unit tests + host-apply.spec.mjs + client.smoke.mjs

Development

pnpm install
pnpm build       # tsdown → lib/index.js (host half) + lib/client.js (browser half)
pnpm typecheck   # tsc --noEmit against @deepseek-ai/* 0.2.1-rc.5
pnpm test        # package identity, reproducible builds, and pure provisioning logic
pnpm exec playwright install chromium # once, when Chromium is not installed (Windows uses Edge)
pnpm test:live   # pack and install this release in real DSH 0.2.1-rc.5, then operate its UI
# Set DSH_TEST_VERSION=0.2.1-rc.4 to validate the desktop log's runtime version.

test/ layers, cheapest first:

File	Scope
package-config.spec.mjs	Parse the bundle YAML and shipped JavaScript with YAML/TypeScript; require one factory with the scoped distribution package identity and a prepack build gate
build-determinism.mjs	Build unchanged sources in two workspace directories and compare all three artifacts byte for byte
host.spec.mjs	Pure logic: dialect → wire mapping, provisioning patch generation, idempotency
live-profile.spec.mjs	Launch published DSH rc.4 / rc.5, install the actual npm-packed tarball with its CLI, and operate the real UI in Edge/Chromium: scoped client boot, mouse/keyboard OFF/MAX persistence, outside click/Escape, reload, a narrow viewport, and live dialect updates. Set DSH_TEST_COINSTALL=1 to install the separate unscoped slider alongside this package

CI runs both test commands for rc.4 and rc.5. On Windows, test runtimes, profiles, screenshots and reports go under E:\Codex\Workspace\dsh-effort-slider-20261101, with process temporary files under E:\Codex\Temp; other platforms use ignored output/. Set DSH_TEST_WORKSPACE to override the evidence directory. Live checks cover configuration, the model directory and Session selection without sending a model generation request. Historical fixture tests are excluded from the release checks. npm pack and publishing run prepack, rebuilding and checking the shipped artifact.

The hot-update bridge feature-detects DSH 0.2.1's internal HMR transaction context before enqueueing work. Settings writes still use the revision-checked public API and its exclusive queue. The live test defaults to rc.5; CI also pins rc.4 so changes to that internal context are caught when updating the supported version.

Contributing. Fork → change → pnpm build → run pnpm test → open a PR against main. Small fixes (docs, tests) are welcome without prior discussion; report issues with the DSH version and the exact error.

License & Security

License: BSD-3-Clause — see LICENSE. The UI implementation references the aurora skin of the community dsh-ui-web project (BSD-3-Clause); full upstream notices and license texts are in THIRD_PARTY_NOTICES.md.

Security: this plugin reads no credentials and sends nothing over the network (only talks to the local DSH). To report a security issue privately, use GitHub's Report a vulnerability on the Security tab — do not open a public issue with exploit details.
